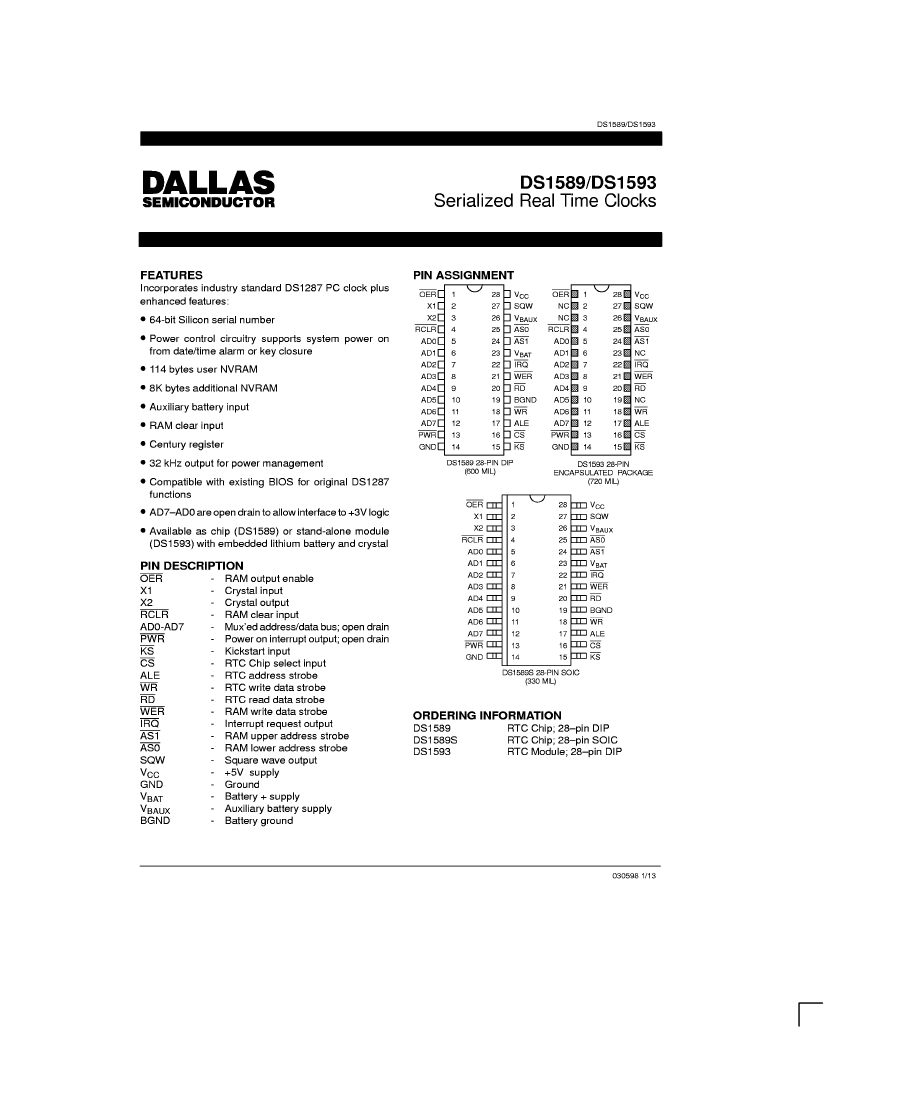

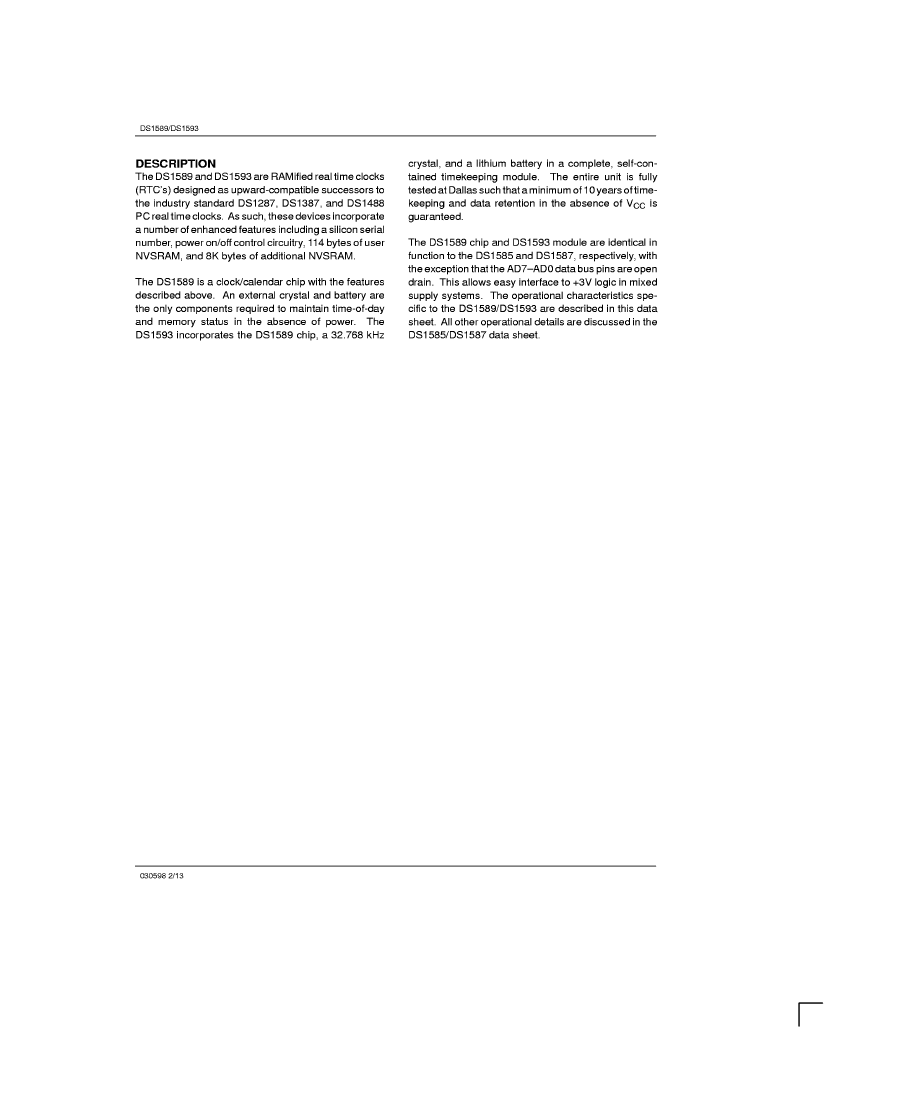

Preview

DS1589S: DescriptionReal Time Clock, Volatile, 1 Timer(s), CMOS, PDIP28,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size182KB，13 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1589S Overview

Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP28,

DS1589S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
Reach Compliance Code	unknown
Other features	AUXILIARY BTRY I/P; POWER ON INTERRUPT WITH KICK START; RAM CLEAR I/P; 64-BIT SILICON SERIAL NUMBER
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
interrupt capability	Y
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of terminals	28
Number of timers	1
On-chip data RAM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	0.032768 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.45
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	8306
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	DUAL
shortest time	SECONDS
Maximum time at peak reflow temperature	NOT SPECIFIED
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

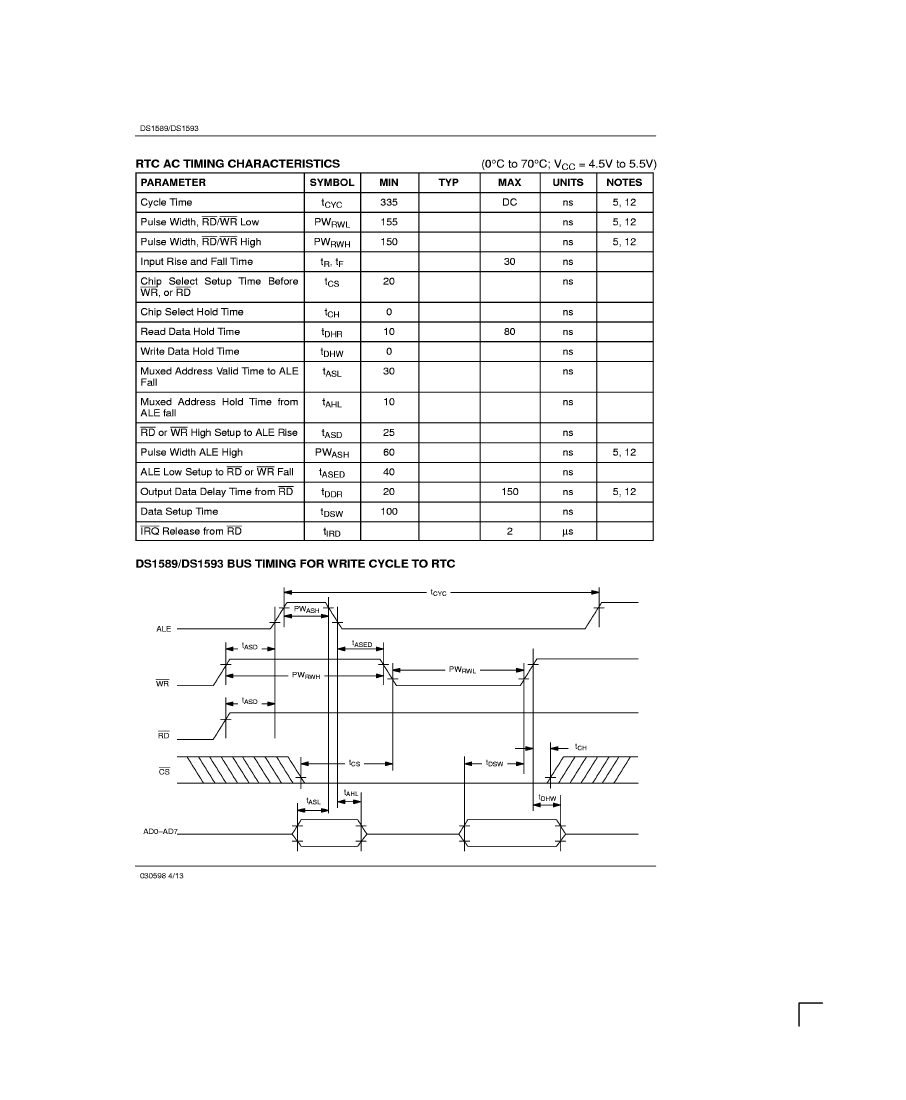

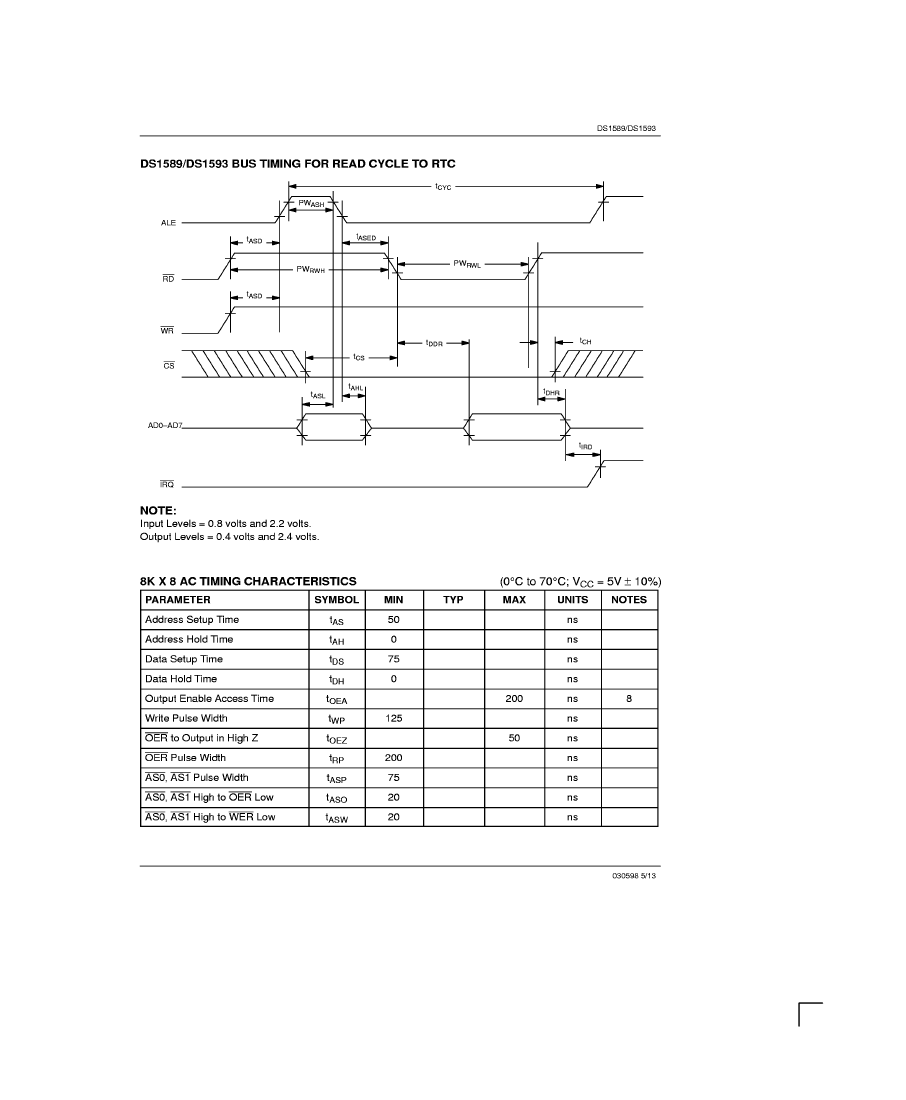

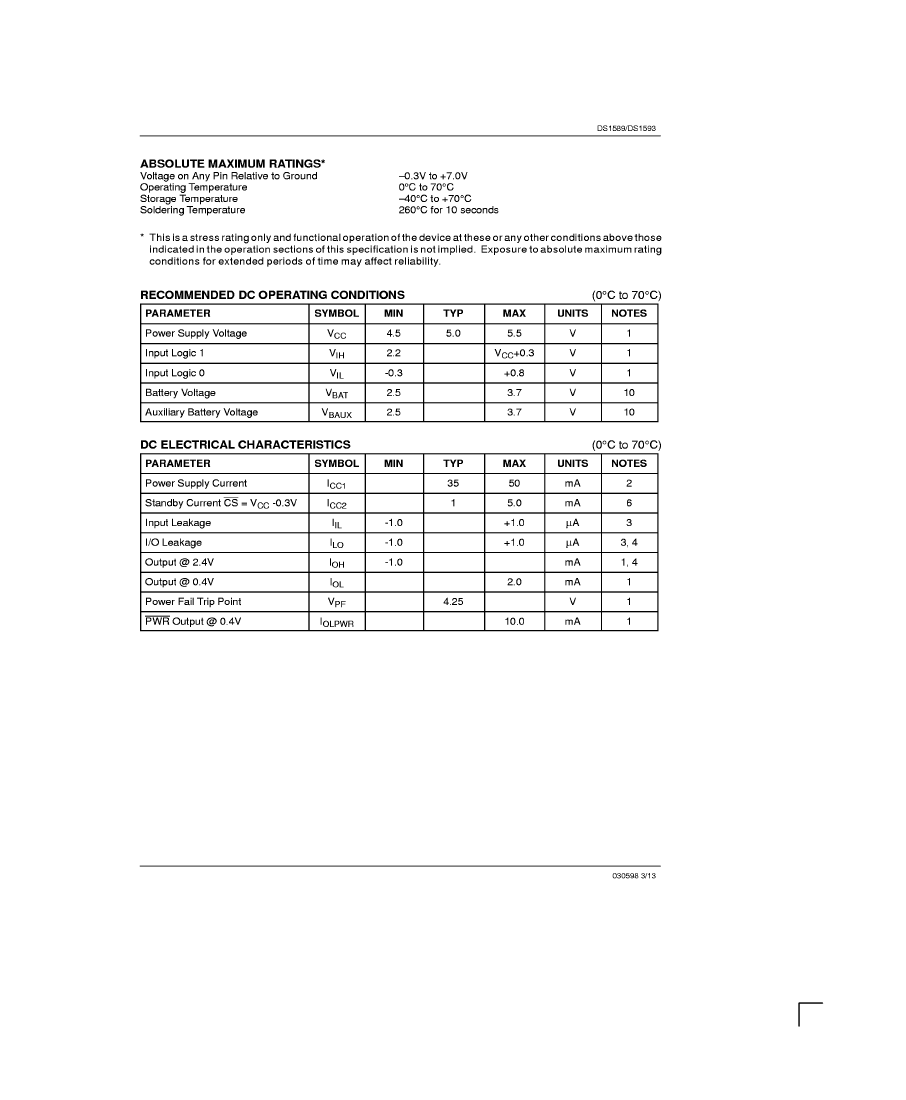

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DS1589S Related Products

	DS1589S	DS1589
Description	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP28,	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP28,
Is it Rohs certified?	incompatible	incompatible
Maker	DALLAS	DALLAS
Reach Compliance Code	unknown	unknown
Other features	AUXILIARY BTRY I/P; POWER ON INTERRUPT WITH KICK START; RAM CLEAR I/P; 64-BIT SILICON SERIAL NUMBER	AUXILIARY BTRY I/P; POWER ON INTERRUPT WITH KICK START; RAM CLEAR I/P; 64-BIT SILICON SERIAL NUMBER
External data bus width	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
interrupt capability	Y	Y
JESD-30 code	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0
Number of terminals	28	28
Number of timers	1	1
On-chip data RAM width	8	8
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	0.032768 MHz	0.032768 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP28,.45	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (number of words)	8306	8306
Maximum slew rate	50 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
shortest time	SECONDS	SECONDS
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Volatile	YES	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
