DS1806SN-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DS1806SN-100

DS1806SN-100: DescriptionDigital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20; CategoryAnalog mixed-signal IC converter; File Size433KB，7 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1806SN-100 Overview

Digital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20

DS1806SN-100 Parametric

Parameter Name	Attribute value
Maker	DALLAS
package instruction	PLASTIC, SOIC-20
Reach Compliance Code	unknown
control interface	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G20
Number of functions	1
Number of positions	64
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
resistance law	LINEAR
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Nominal total resistance	100000 Ω

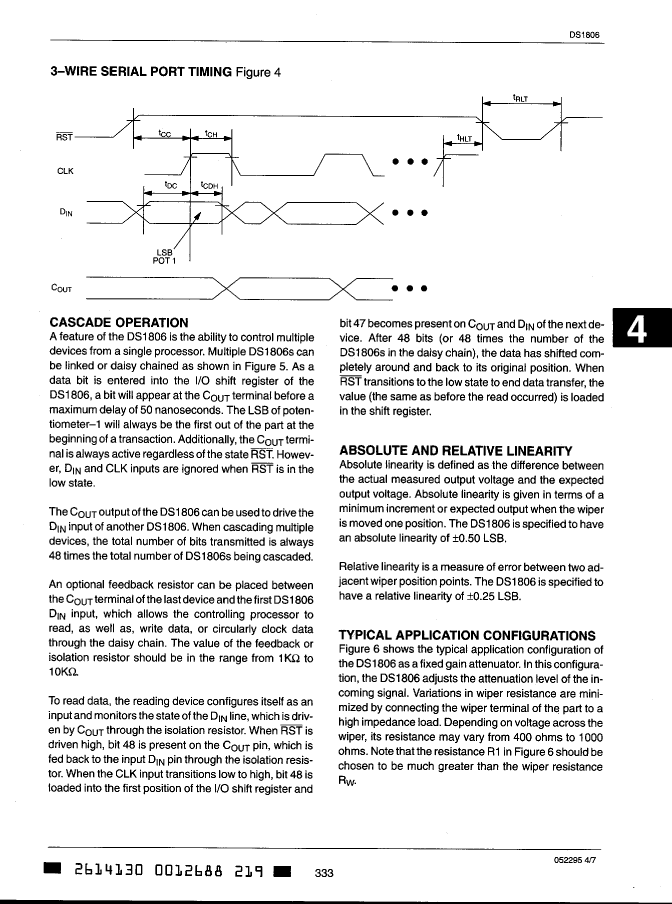

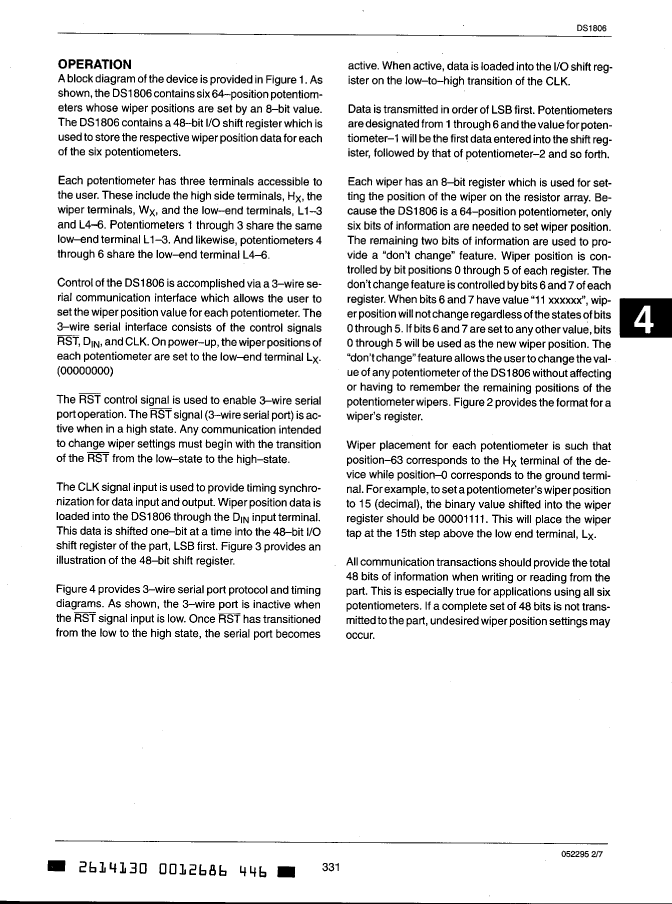

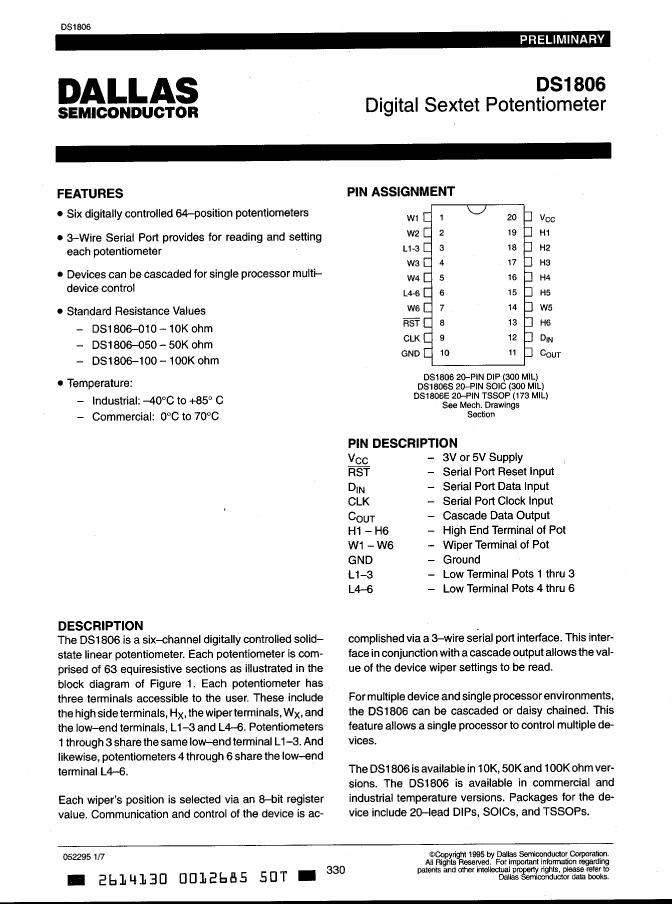

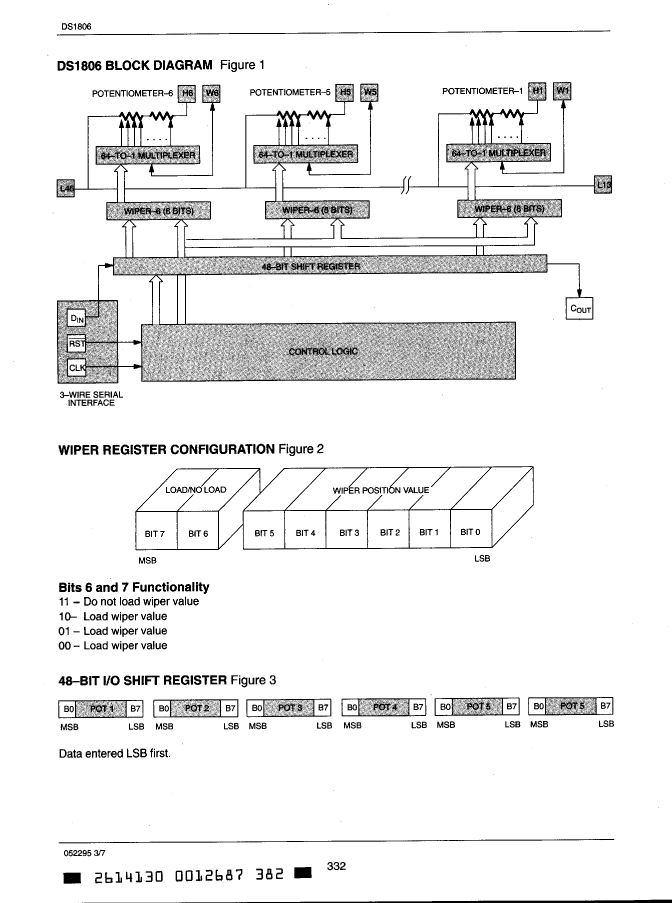

Preview

Download Datasheet

View All

DS1806SN-100 Related Products

	DS1806SN-100	DS1806EN-010	DS1806EN-050	DS1806EN-100	DS1806SN-050	DS1806N-050	DS1806N-100	DS1806SN-010	DS1806N-010
Description	Digital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDIP20, PLASTIC, DIP-20	Digital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDIP20, PLASTIC, DIP-20	Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, PLASTIC, SOIC-20	Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDIP20, PLASTIC, DIP-20
Maker	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
package instruction	PLASTIC, SOIC-20	PLASTIC, SOIC-20	PLASTIC, SOIC-20	PLASTIC, SOIC-20	PLASTIC, SOIC-20	PLASTIC, DIP-20	PLASTIC, DIP-20	PLASTIC, SOIC-20	PLASTIC, DIP-20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
control interface	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20
Number of functions	1	1	1	1	1	1	1	1	1
Number of positions	64	64	64	64	64	64	64	64	64
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
surface mount	YES	YES	YES	YES	YES	NO	NO	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal total resistance	100000 Ω	10000 Ω	50000 Ω	100000 Ω	50000 Ω	50000 Ω	100000 Ω	10000 Ω	10000 Ω
