M54HC242F1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M54HC242F1

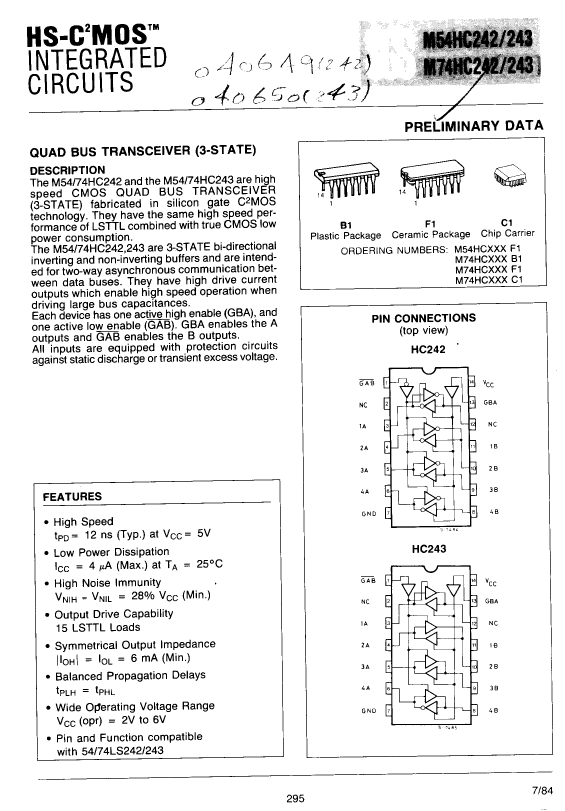

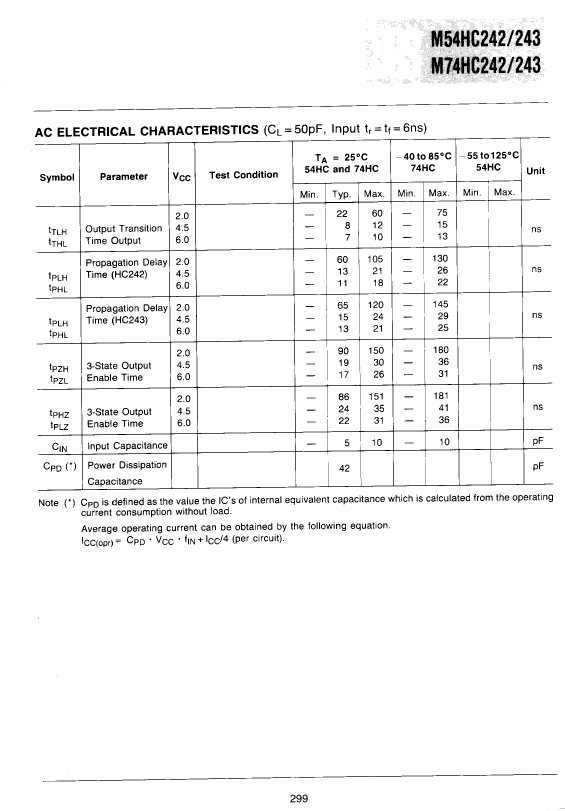

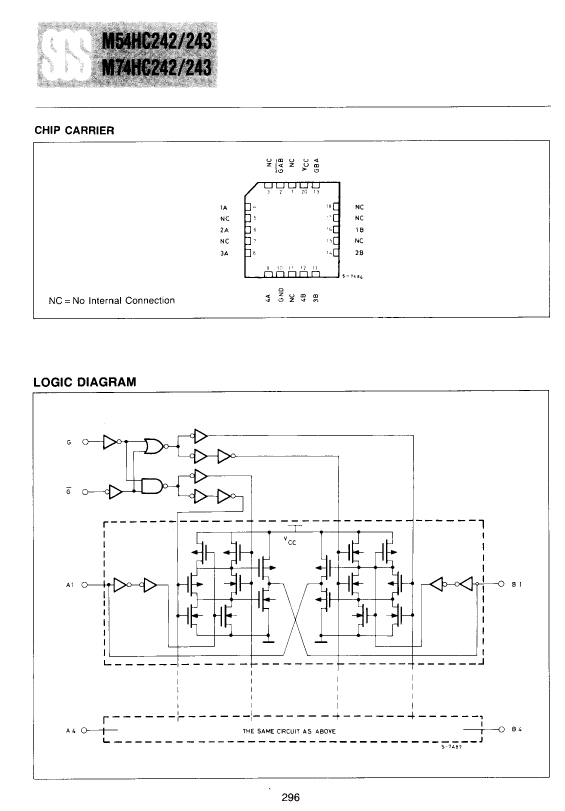

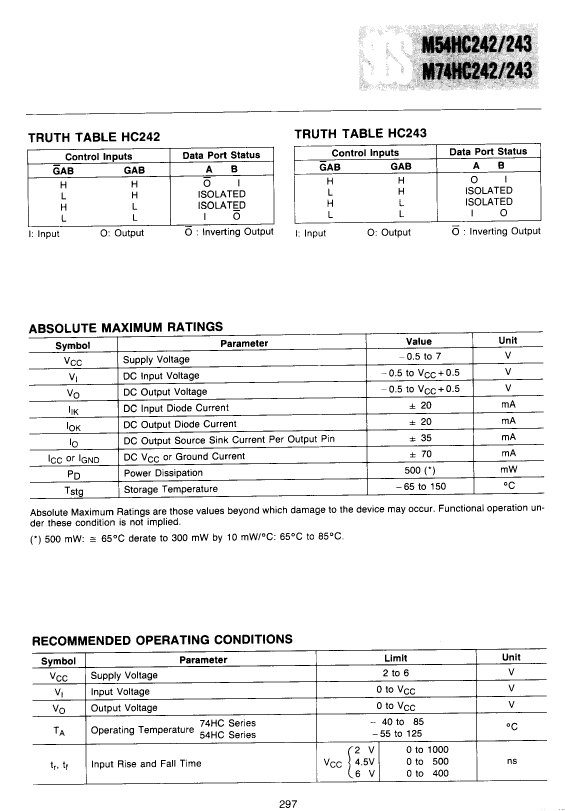

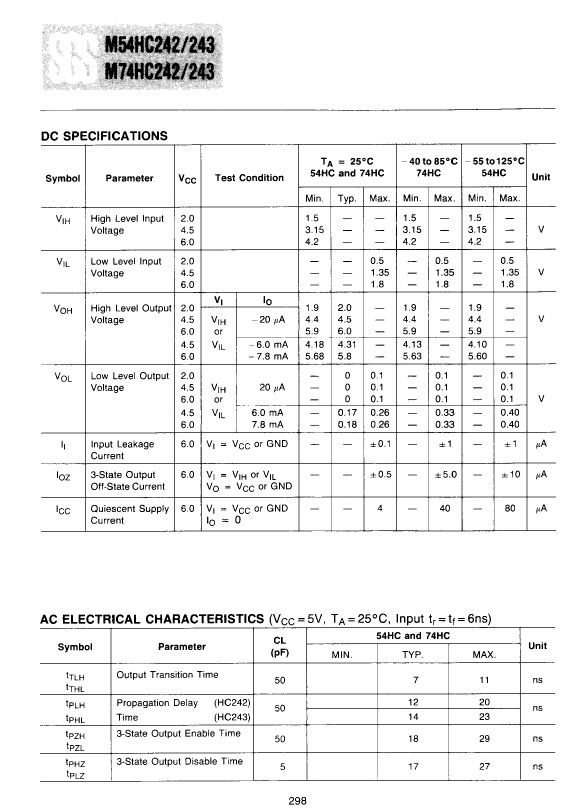

M54HC242F1: DescriptionBus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14; Categorylogic logic; File Size226KB，5 Pages; ManufacturerSGS-Ates Componenti Electronici SPA

Download Datasheet Parametric Compare View All

M54HC242F1 Overview

Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14

M54HC242F1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SGS-Ates Componenti Electronici SPA
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

M54HC242F1 Related Products

	M54HC242F1	M74HC242F1	M74HC242C1	M74HC243F1	M74HC243C1
Description	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, CDIP14	Bus Driver/Transceiver, 1-Func, 4-Bit, Inverted Output, CMOS, PQCC20	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, CMOS, CDIP14	Bus Driver/Transceiver, 1-Func, 4-Bit, True Output, CMOS, PQCC20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	QCCJ, LDCC20,.4SQ	DIP, DIP14,.3	QCCJ, LDCC20,.4SQ
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDIP-T14	R-XDIP-T14	S-PQCC-J20	R-XDIP-T14	S-PQCC-J20
JESD-609 code	e0	e0	e0	e0	e0
Number of digits	4	4	4	4	4
Number of functions	1	1	1	1	1
Number of terminals	14	14	20	14	20
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	QCCJ
Encapsulate equivalent code	DIP14,.3	DIP14,.3	LDCC20,.4SQ	DIP14,.3	LDCC20,.4SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
power supply	2/6 V	2/6 V	2/6 V	2/6 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD
Maker	SGS-Ates Componenti Electronici SPA	-	-	SGS-Ates Componenti Electronici SPA	SGS-Ates Componenti Electronici SPA
Base Number Matches	-	1	1	1	1
