949ZX2405S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 949ZX2405S

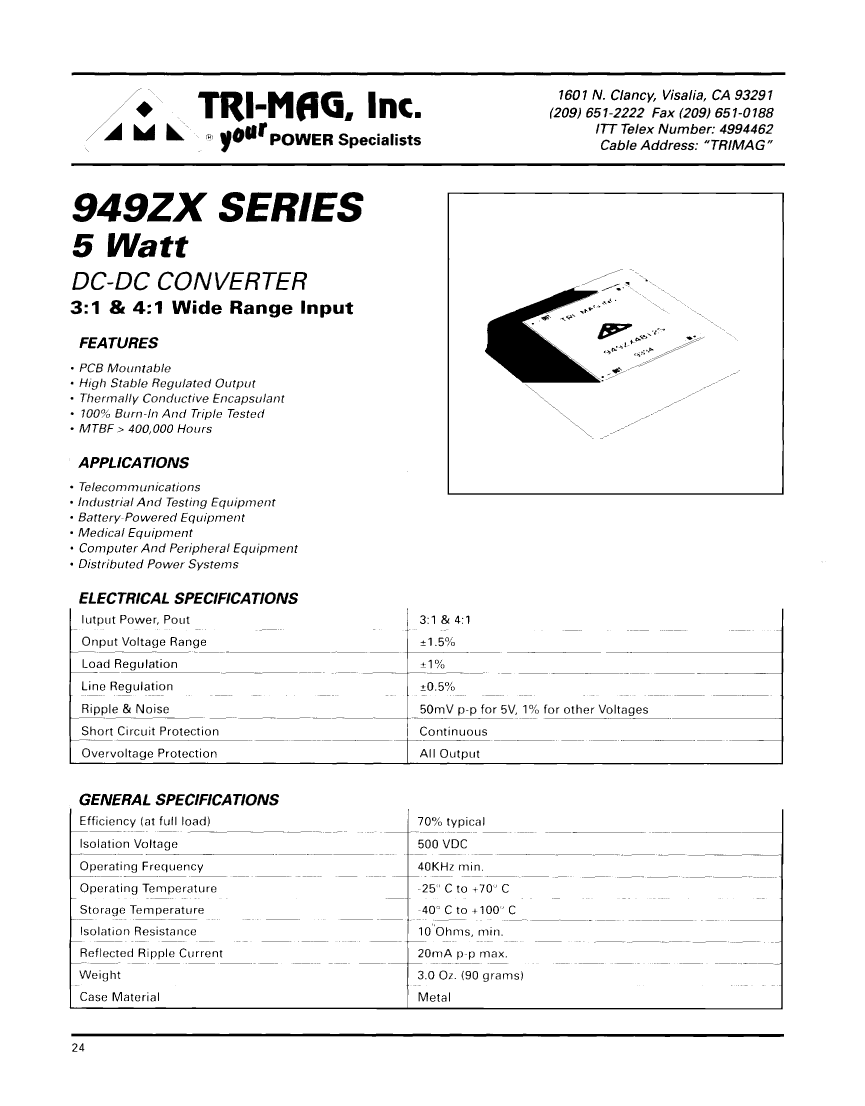

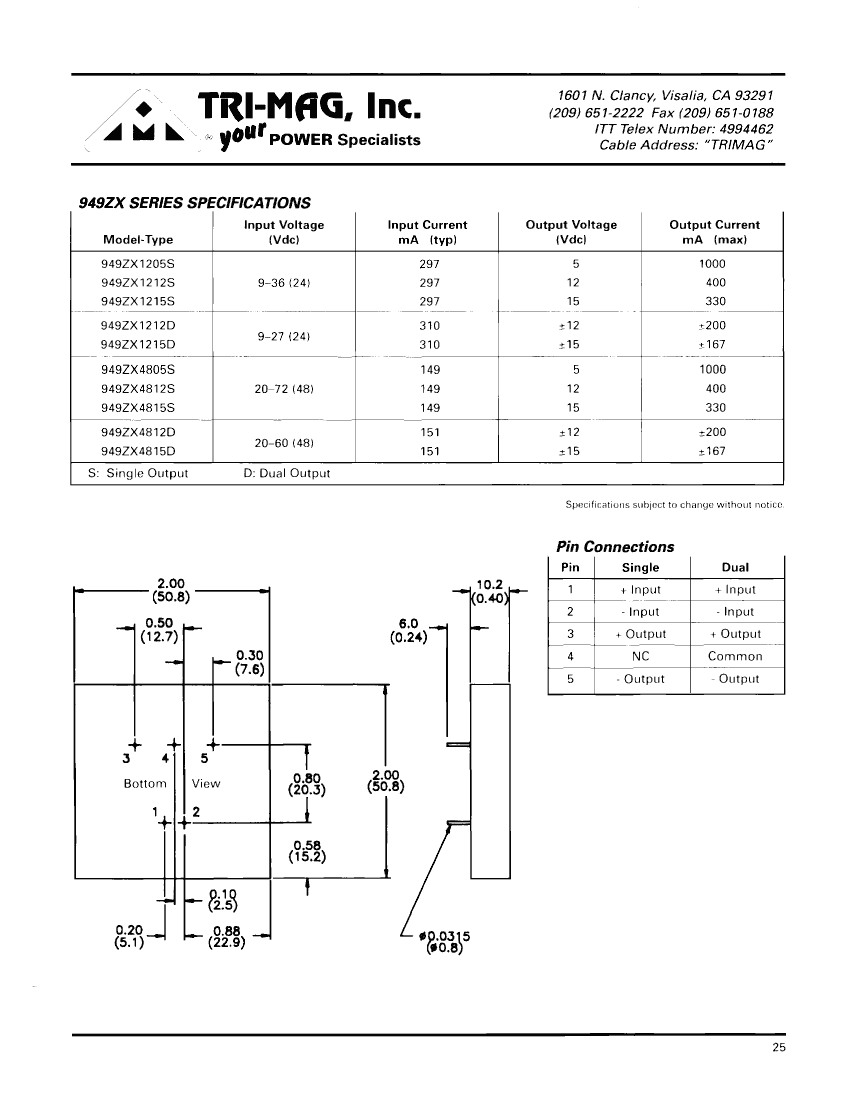

949ZX2405S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid; CategoryPower/power management The power supply circuit; File Size56KB，2 Pages; ManufacturerTri-Mag Inc.

Download Datasheet Parametric Compare View All

949ZX2405S Overview

DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid

949ZX2405S Parametric

Parameter Name	Attribute value
Maker	Tri-Mag Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	70%
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	S-MDIP-P5
Maximum grid adjustment rate	0.5%
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.075 V
Minimum output voltage	4.925 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	SQUARE
Package form	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

949ZX2405S Related Products

	949ZX2405S	949ZX4812S	949ZX2415S	949ZX2412D	949ZX2412S	949ZX2415D	949ZX4805S	949ZX4812D	949ZX4815D	949ZX4815S
Description	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid
Maker	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.	Tri-Mag Inc.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	70%	70%	70%	70%	70%	70%	70%	70%	70%	70%
Maximum input voltage	36 V	72 V	36 V	27 V	36 V	27 V	72 V	60 V	60 V	72 V
Minimum input voltage	9 V	20 V	9 V	9 V	9 V	9 V	20 V	20 V	20 V	20 V
Nominal input voltage	24 V	48 V	24 V	24 V	24 V	24 V	48 V	48 V	48 V	48 V
JESD-30 code	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5	S-MDIP-P5
Maximum grid adjustment rate	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	2	1	2	1	2	2	1
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	5.075 V	12.18 V	15.225 V	12.18 V	12.18 V	15.225 V	5.075 V	12.18 V	15.225 V	15.225 V
Minimum output voltage	4.925 V	11.82 V	14.775 V	11.82 V	11.82 V	14.775 V	4.925 V	11.82 V	14.775 V	14.775 V
Nominal output voltage	5 V	12 V	15 V	12 V	12 V	15 V	5 V	12 V	15 V	15 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Protect	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
