8541-MPF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8541-MPF

8541-MPF: DescriptionRF/Microwave Termination, 0.1MHz Min, 50000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

8541-MPF Overview

RF/Microwave Termination, 0.1MHz Min, 50000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

8541-MPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	SMP-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	26.99 dBm
JESD-609 code	e4
Maximum operating frequency	50000 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	3

Preview

Download Datasheet

View All

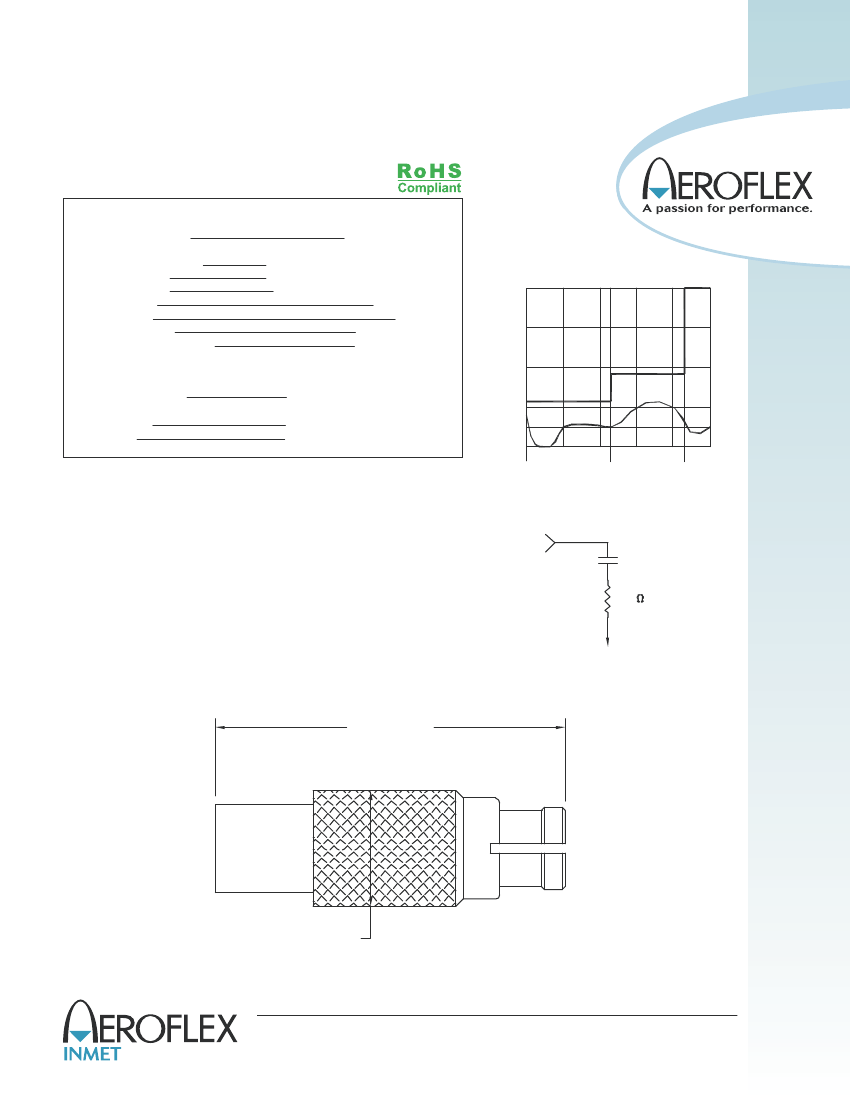

DC BLOCKING TERMINATION

SMPM, 100 kHz - 50 GHz, ½ Watt

SPECIFICATIONS:

Models: 854

1-MPF

Electrical:

Frequency Range

VSWR

100 KHz - 23 GHz

23 - 43 GHz

43 - 50 GHz

Input Power

Impedance

Voltage Rating

Operating Temp. Range

100 KHz - 50 GHz

1.57:1 Max. (-13dB Return Loss)

1.92:1 Max. (-10dB Return Loss)

3.00:1 Max. (-6dB Return Loss)

1/2 Watt Avg.

50 Ohms

10 Volts Max DC

-65°C to +125°C

VSWR

TYPICAL PERFORMANCE

VSWR vs FREQUENCY

3.00:1

2.50:1

Mechanical:

SMPM Connectors

Mates with MIL

-STD-348 & GPPO™ Connectors

2.00:1

Gold Plated Beryllium Copper

1.50:1

Conductors

Housing

Gold Plated Beryllium Copper

*GPPO is a trademark of Corning Gilbert Inc.

1.25:1

1.00:1

100 KHz

Freq (GHz)

Model Number:

8541-MPF

SCHEMATIC DIAGRAM

.375±0.020

[9.52±0.51]

Ø.124

[3.15]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

854 REV -

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
