APL5603
Low Dropout 600mA Fixed Voltage Linear Regulator
Features
•
•
•
•
•
•
•
•
•
•
•
Low Dropout Voltage: 220mV (typical) @600mA
Wide 2.9V~6V Input Voltage
Low Quiescent Current: 140µA (typical)
Fixed Output Voltage with
±
2% accuracy
Stable with Ceramic, 2.2µF Output Capacitor
Short Circuit Current Limit
Over-Temperature Protection
Current Limit Protection
Internal Soft-Start
SOT-23-5, SOP-8, and DFN3x3-8 Packages
Lead Free and Green Devices Available
(RoHS Compliant)
General Description
The APL5603 is a low-power and low dropout linear regu-
lators which operates from 2.9V to 6V input voltage and
delivers up to 600mA output current. Typical dropout volt-
age is only 220mV (typical) at 600mA output. The APL5603
regulators with low 140µA quiescent current are ideal for
battery-powered system appliances. The APL5603 regu-
lators are stable with a 2.2µF ceramic capacitor. The fea-
tures of current limit, short circuit current limit, and over-
temperature protections can prevent the device against
currnet overload and over-temperature. The APL5603
regulators are availabe in SOT-23-5, SOP-8, and DFN3x3-
8 packages.
Applications
•
•
•
•
•
CD/DVD-ROM, CD-R/W
Networking System, LAN Card, ADSL/Cable
Modem
Set-Top Box
PC Peripherals
Battery-Powered System
Ordering and Marking Information
APL5603
Assembly Material
Handling Code
Temperature Range
Package Code
Voltage Code
Voltage Code
(Note 2)
12 : 1.2V, 15 : 1.5V, 18 : 1.8V, 25 : 2.5V
28 : 2.8V, 30 : 3.0V, 33 : 3.3V
Package Code
B : SOT-23-5 K : SOP-8 QA : DFN3x3-8
Operating Ambient Temperature Range
I : -40 to 85
°
C
Handling Code
TR : Tape & Reel
Assembly Material
L : Lead Free Device
G : Halogen and Lead Free Device
XXXXX - Date Code
18 - Voltage Code
XXXXX - Date Code
18 - Voltage Code
APL5603-18 K :
APL5603
XXXXX 18
L5603
18
XXXXX
APL5603-18 QA :
Note 1: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; which
are fully compliant with RoHS. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J-STD-020C for
MSL classification at lead-free peak reflow temperature. ANPEC defines “Green” to mean lead-free (RoHS compliant) and halogen
free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by
weight).
Note 2: For other voltage versions please contact ANPEC for details.
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and
advise customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
©
ANPEC Electronics Corp.
Rev. A.3 - Aug., 2008
1
www.anpec.com.tw
APL5603
Ordering and Marking Information (Cont.)
Marking for SOT-23-5 package
Product Name
APL5603-12B
APL5603-25B
APL5603-33B
Marking
635X
63JX
63RX
Product Name
APL5603-15B
APL5603-28B
Marking
639X
63MX
Product Name
APL5603-18B
APL5603-30B
Marking
63CX
63OX
* “X” in the marking indicates data code.
Pin Configurations
SOT-23-5
VIN 1
GND 2
EN 3
4 NC
5 VOUT
EN 1
VIN 2
VOUT 3
NC 4
SOP-8
8 GND
7 GND
6 GND
5 GND
DFN3x3-8
VIN 1
VIN 2
VOUT 3
VOUT 4
8 EN
7 NC
6 GND
5 NC
APL5603
Top View
Absolute Maximum Ratings
Symbol
V
IN
T
J
V
OUT
V
EN
T
STG
T
SDR
P
D
Parameter
VIN Supply Voltage (VIN to GND)
Maximum Junction Temperature
Output Voltage (VOUT to GND)
EN Pin Voltage (VEN to GND)
Storage Temperature Range
(Note 3)
Rating
-0.3 to 6.5
150
-0.3 to V
IN
+0.3
-0.3 to 6.5
-65 to 150
260
Internally Limited
Unit
V
o
C
V
V
o
o
C
C
Maximum Lead Soldering Temperature, 10 Seconds
Power Dissipation
Note 3: Stresses beyond the absolute maximum rating may damage the device and exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
Thermal Characteristics
(Note 4, 5)
Symbol
θ
JA
θ
JC
Parameter
Junction to Air Thermal Resistance
SOP-8
DFN3x3-8
Junction to Case Thermal Resistance
SOP-8
Package
SOT-23-5
Rating
260
150
110
30
°C/W
Unit
Note 4: At elevated temperatures, device power dissipation must be derated based on package thermal resistance and heatsink
values. The junction-to-ambient thermal resistance is measured on a PC board mounting with the device soldered down to
minimum copper area. If power dissipation causes the junction temperature to exceed specified limits, the device will go into
thermal shutdown.
Note 5: The maximum allowable power dissipation at any T
A
(ambient temperature) is calculated using: P
D (max)
= (T
J
– T
A
) /
θ
JA
; T
J
=
125°C. Exceeding the maximum allowable power dissipation will result in excessive die temperature.
Copyright
©
ANPEC Electronics Corp.
Rev. A.3 - Aug., 2008
2
www.anpec.com.tw
APL5603
Recommended Operating Conditions
Symbol
V
IN
I
OUT
C
IN
C
OUT
T
J
T
A
VIN to GND
Output Current
Input Capacitor
Output Capacitor
Junction Temperature
Ambient Temperature
Parameter
Range
2.9 to 6
0 to 0.6
0.82 to 470
1 to 330
-40 to 125
-40 to 85
Unit
V
A
µF
µF
°C
°C
Electrical Characteristics
Refer to the typical application circuit. V
IN
= V
OUT
+1V or 2.9V (minimum), whichever is great, V
EN
= V
IN
, I
OUT
= 1mA, T
J
= -40 to 125
°C,
T
A
= -40 to 85°C, unless otherwise specified. Typical values are at T
A
= 25°C.
Symbol
SUPPLY CURRENT
I
Q
Quiescent Current
V
EN
= 0V
V
IN
=V
EN
=5V, I
OUT
=0mA
V
IN
rising
-
-
-
140
1
200
µA
µA
V
V
Parameter
Test Conditions
APL5603
Min.
Typ.
Max.
Unit
UNDER-VOLTAGE-LOCKOUT
VIN UVLO Threshold
VIN UVLO Hysteresis
OUTPUT VOLTAGE
V
OUT
Output Voltage
Line Regulation
Load Regulation
T
A
= 25°C
T
A
= -40 to 85°C (T
J
= -40 to 125°C)
V
IN
= V
OUT
+ 1V to 6V
I
OUT
= 1mA to 600mA
V
OUT
=2.8V, I
OUT
=600mA
V
DROP
Dropout Voltage
V
OUT
=3.3V, I
OUT
=600mA
V
OUT
=5V, I
OUT
=600mA
PSRR
Power Supply Ripple Rejection
V
IN
= V
OUT
+ 2V, f = 1kHz
-1
-2
-
-
-
-
-
-
-
-
0.03
0.6
240
220
200
55
+1
+2
0.1
1.5
400
310
320
-
dB
mV
%V
OUT
%/V
%/A
2.1
-
2.5
0.15
2.9
-
SOFT-START AND PROTECTION
I
LIM
Output Current Limit
Thermal Shutdown Temperature
Thermal Shutdown Hysteresis
Short Circuit Current Limit
T
SS
Soft-Start Time
V
OUT
<
0.6V
700
-
-
-
-
-
150
40
250
130
-
-
-
-
300
mA
°C
°C
mA
µs
V
V
MΩ
LOGIC INPUT
EN Logic Input-High Level
EN Logic Input-Low Level
EN Pull-Low Resistance
V
EN
<3V
1.6
-
-
-
-
2
-
0.4
-
Copyright
©
ANPEC Electronics Corp.
Rev. A.3 - Aug., 2008
3
www.anpec.com.tw
APL5603

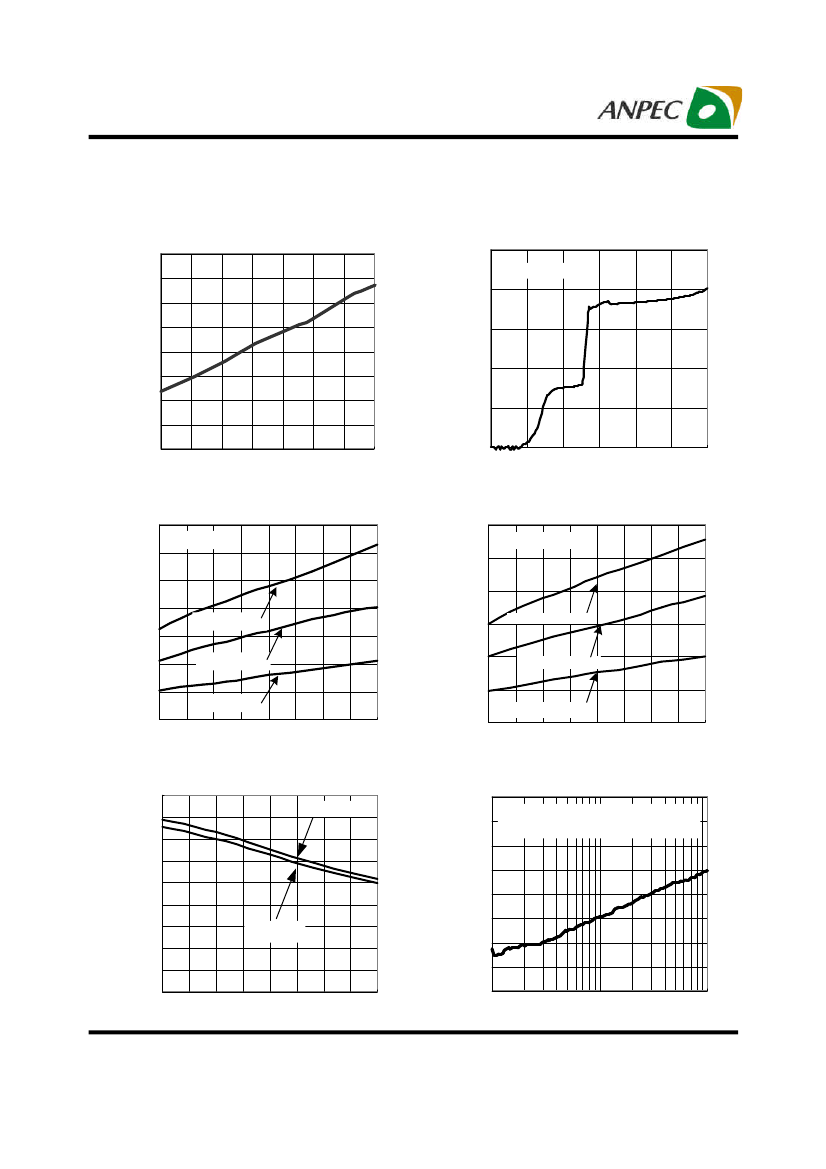

Typical Operating Characteristics
(Refer to the application circuit 1 in the section “Typical Application Circuits”, V
IN
=5V, V
OUT
=3.3V, C
OUT
=2.2µF, unless otherwise
specified.)
EN Threshold vs. Input Voltage
1.6
1.5
200
Quiescent Current vs. Input Voltage
I
OUT
=0mA
Quiescent Current (µA)
EN Threshold, V
HT-EN
(V)
160
1.4
1.3
1.2
1.1
1
0.9
0.8
3
3.5
4
4.5
5
5.5
6
6.5
120
80
40
0
0
1
2
3
4
5
6
Input Voltage, V
IN
(V)
Input Voltage, V
IN
(V)
VIN to VOUT Dropout vs. Junction
Temperature
VIN to VOUT Dropout, V
DROP
(V)
V
OUT
=3.3V
300
250
200
I
OUT
=600mA
150
100
50
I
OUT
=200mA
0
-50
-25
0
25
50
75
100 125
o
VIN to VOUT Dropout, V
DROP
(V)
350
VIN to VOUT Dropout vs. Junction
Temperature
300
V
OUT
=5V
250
200
150
100
50
I
OUT
=200mA
150
I
OUT
=600mA
I
OUT
=400mA
I
OUT
=400mA
0
-50
-25
0
25
50
75
100
o
125
150
Junction Temperature, T
J
( C)
Junction Temperature, T
J
( C)
Current Limit vs. Junction Temperature
1.8
1.6
V
IN
=5V
Power Supply Ripple Rejection
0
-10
-20
V
IN
=3.3V, V
OUT
=1.8V, C
IN
=1µF, C
OUT
=2.2µF,
I
OUT
=500mA
Current Limit, I
LIM
(A)
1.4
PSRR (dB)
V
IN
=3.3V
-50
-25
0
25
50
75
100
o
1.2
1
0.8
0.6
0.4
0.2
0
125
150
-30
-40
-50
-60
-70
-80
1000
10000
100000
Junction Temperature, T
J
( C)
Copyright
©
ANPEC Electronics Corp.
Rev. A.3 - Aug., 2008
4
Frequency (Hz)
www.anpec.com.tw
