Chassis Mount Filters
Single phase - Multistage
A comprehensive family of multi-stage fliters with general, high and
very high performance characteristics across the frequency spectrum.
Throughout each compact range, the various styles of metal
enclosure offer a choice of termination styles and have medical
options available.
Designed to provide cost effective solutions for a wide range of
applications where space is limited but high performance is required.
F.BK-F.BR-F.BS
series
•
Current ratings from 1A to 30A
•
Multi-stage, general, high and very high performance designs
•
Good low and high frequency performance
•
Optional termination styles
•
Medical versions available

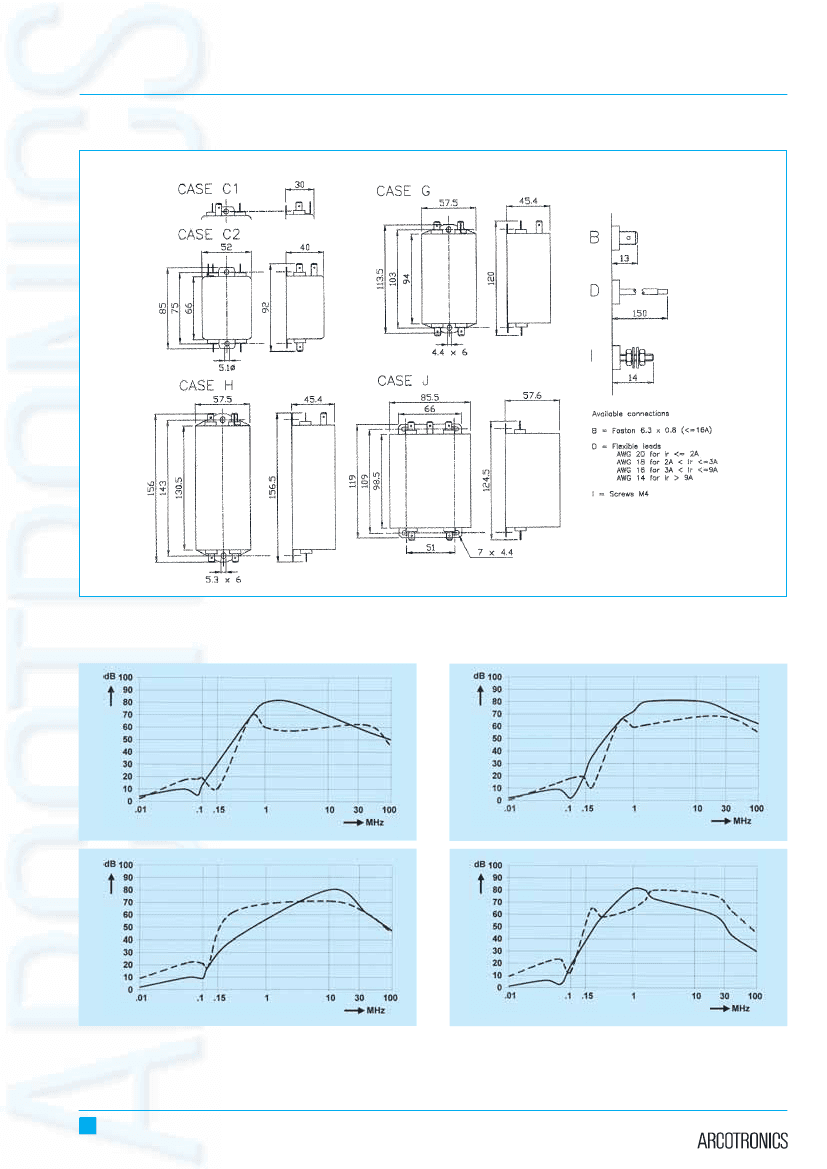

Mechanical Specifications
Manufacture:
metal case and cover, internal components sealed
with self-extinguishing resin.
Connections:
faston 6.3 x 0.8 mm (< 16A), flexible leads, screws
M4; ground terminal connected to case.
Electrical Specifications
Rated voltage (V
R
):
max 250V, 50/60Hz
Rated current (I
R
):
Voltage test (2
S
.):
Climatic category:
Case Circ
Diag
C1
C1
C2
G
J
A
A
A
A
A
referred to room temperature = 40°C
line to ground 3000Vdc or 1800Vac
line to line 1700Vdc
HPF (25/085/21);
Temperature range: -25°C to +85°C
Leakage current (I
L
):
at 220V 50Hz, max value
General Performance Multi-stage Filter Range – F.BK
Code
l
R
L
1
L
2
Cx
(µF)
Cy
(pF)
I
L
(mA)
R
(MΩ)
(A) (mH) (mH)
F.BK.D-.3940.ZG 10 2x0.8 2x0.8
F.BK.D-.3660.ZJ
2x0.47 2x4700
2x0.43 0.47
2x0.43 0.47
2x0.43 1
2x0.43 0.22
2x0.91 0.22
F.BK.D-.3940.ZH 12 2x0.58 2x0.58 2x0.47 2x4700
16 2x0.65 2x0.65 2x0.33 2x4700
2x1
2x1
2x4700
2x10000
F.BK.D-.4200.ZK 20 2x0.6 2x0.6
F.BK.D-.4200.ZM 30 2x0.6 2x0.6
Circuit diagram
High Performance Multi-stage Filter Range – F.BR
Code
l
R
L
1
2x22
L
2
2x22
Cx
(µF)
Cy
(pF)
I
L
(mA)
R
(MΩ)
C1
C2
G
H
H
J
Case Circ
Diag
A
A
A
A
A
A
(A) (mH) (mH)
F.BR.D-.3660.ZB 1
F.BR.D-.3940.ZD 3
F.BR.D-.4200.ZF 6
2x9.8 2x9.8
2x7.8 2x7.8
2x0.33 2x4700
2x0.47 2x4700
2x1
2x1
2x1
2x4700
2x4700
2x4700
2x4700
2x0.43 1
2x0.43 0.47
2x0.43 0.22
2x0.43 0.22
2x0.43 0.22
2x0.43 0.22
F.BR.D-.4200.ZG 10 2x4.5 2x4.5
F.BR.D-.4200.ZJ
16 2x2.8 2x2.8
F.BR.D-.4200.ZH 12 2x3.25 2x3.25 2x1
Very High Performance Multi-stage Filter Range – F.BS
Code
l
R
L
1
L
2
Cx
(µF)
Cy
(pF)
I
L
(mA)
R
(MΩ)
C1
C2
G
H
H
J
Case Circ
Diag
B
B
B
B
B
B
(A) (mH) (mH)
F.BS.D-.3660.ZB 1
F.BS.D-.3940.ZD 3
F.BS.D-.4200.ZF
6
2x22 2x0.5
2x7.8 2x0.11
2x0.33 4700
2x1
4700
4700
4700
4700
2x0.43 1
2x0.43 0.47
2x0.43 0.22
2x0.43 0.22
2x0.43 0.22
2x0.43 0.22
2x9.8 2x0.16 2x0.47 4700
F.BS.D-.4200.ZG 10 2x4.5 2x0.06 2x1
F.BS.D-.4200.ZH 12 2x3.25 2x0.05 2x1
F.BS.D-.4200.ZJ
16 2x2.8 2x0.043 2x1
D = Flexible leads
B = Faston 6.3x0.8 mm
I = Screws M4
Approvals
Made in accordance to VDE, UL and CSA requirements
