HM12-1A83-150

Description
DRY REED RELAY, SPST, MOMENTARY, 0.048A (COIL), 12VDC (COIL), 575mW (COIL), 3A (CONTACT), 7500VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size139KB，2 Pages
ManufacturerMEDER electronic ( Standex )
Websitehttps://standexelectronics.com
Download Datasheet Parametric View All

HM12-1A83-150 Online Shopping

Suppliers Part Number Price MOQ In stock
HM12-1A83-150 - - View Buy Now

HM12-1A83-150 Overview

DRY REED RELAY, SPST, MOMENTARY, 0.048A (COIL), 12VDC (COIL), 575mW (COIL), 3A (CONTACT), 7500VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

HM12-1A83-150 Parametric

Parameter NameAttribute value
Maximum operating temperature70 Cel
Minimum operating temperature-20 Cel
Processing package descriptionROHS AND REACH COMPLIANT
stateTRANSFERRED
sealWATER PROOF
Coil power575 mW
Relay actionMOMENTARY
Relay functionSPST
Coil resistance275 ohm
Electrical life5.00E7 Cycle(s)
terminal coatingTIN
Manufacturer SeriesHM
Maximum DC coil current0.0480 A
Maximum DC coil voltage12 V
Maximum AC contact current3 A
Maximum DC contact current3 A
Maximum AC contact voltage7500 V
Maximum DC contact voltage7500 V
DC coil operating voltage9 V
DC coil release voltage1 V
width19 mm
high19.8 mm
length or diameter68 mm
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours3 ms
Relay typeDRY REED RELAY
release time1.5 ms
Terminal typeSOLDER

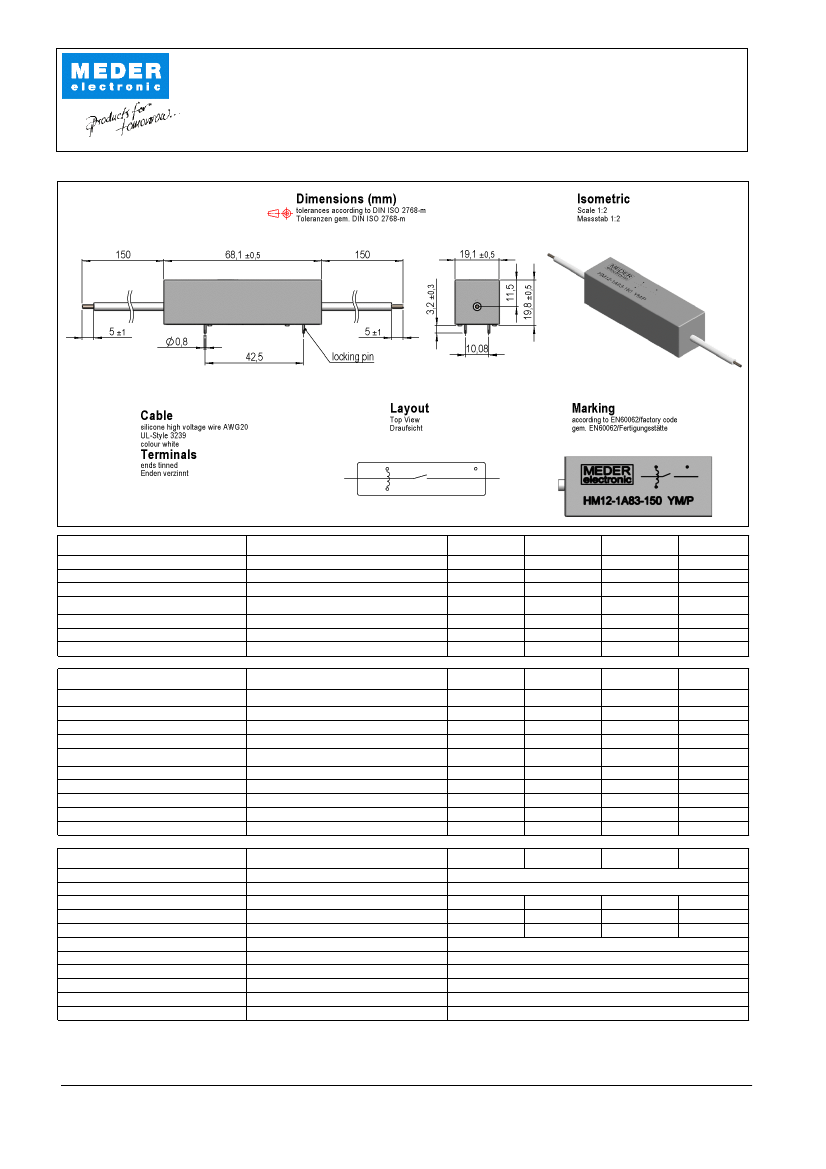

Preview

Download Datasheet
Europe: +49 / 7731 8399 0
USA:
Asia:
+1 / 508 295 0771
+852 / 2955 1682
| Email: info@meder.com
| Email: salesusa@meder.com
| Email: salesasia@meder.com
Item No.:
8412183150
Item:
HM12-1A83-150
Coil Data at 20 °
C
Coil resistance
Coil voltage
Rated power
Thermal resistance
Inductance
Pull-In voltage
Drop-Out voltage
Conditions
Min
Typ
Max
Unit
=
operating temperature + self heating
Contact data 83
Contact rating
Switching voltage
Switching current
Carry current
Contact resistance static
Insulation resistance
Breakdown voltage
Operate time incl. bounce
Release time
Capacitance
Conditions
!
"# $%! %#! #& '
not to exceed their individual max.'s
Min
Typ
Max
Unit
DC or Peak AC
DC or Peak AC
DC or Peak AC
) * + ,%
Start Value
(
- #. + %.
RH <45 %, 100 V test voltage
according to IEC 255-5
measured with 40% overdrive
measured with no coil excitation
@ 10 kHz across open switch
/
0
(1
1
*
*
2
Special Product Data
Number of contacts
Contact - form
Dielectric Strength Coil/Contact
Insulation resistance Coil/Contact
Capacity Coil/Contact
Case colour
Housing material
Sealing compound
Connection pins
Magnetic Shield
Reach / RoHS conformity
Conditions
according to IEC 255-5
RH <45%, 200 VDC test voltage
@ 10 kHz
Min
Typ
1
A - NO
Max
0
/
Unit
1
gray
Polycarbonat
Polyurethan
Copper alloy tin plated
no
yes
2
Modifications in the sense of technical progress are reserved
Designed at:
Last Change at:
08.04.04
04.05.11
Designed by:
Last Change by:
EBUNKE
WKOVACS
Approval at:
Approval at:
27.01.09
