169-1-031-0-F-LS0: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

169-1-031-0-F-LS0 Overview

Board Connector, 31 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal

169-1-031-0-F-LS0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.087 inch
subject depth	0.189 inch
body length	2.441 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	169
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.2098 mm
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	31

Preview

Download Datasheet

View All

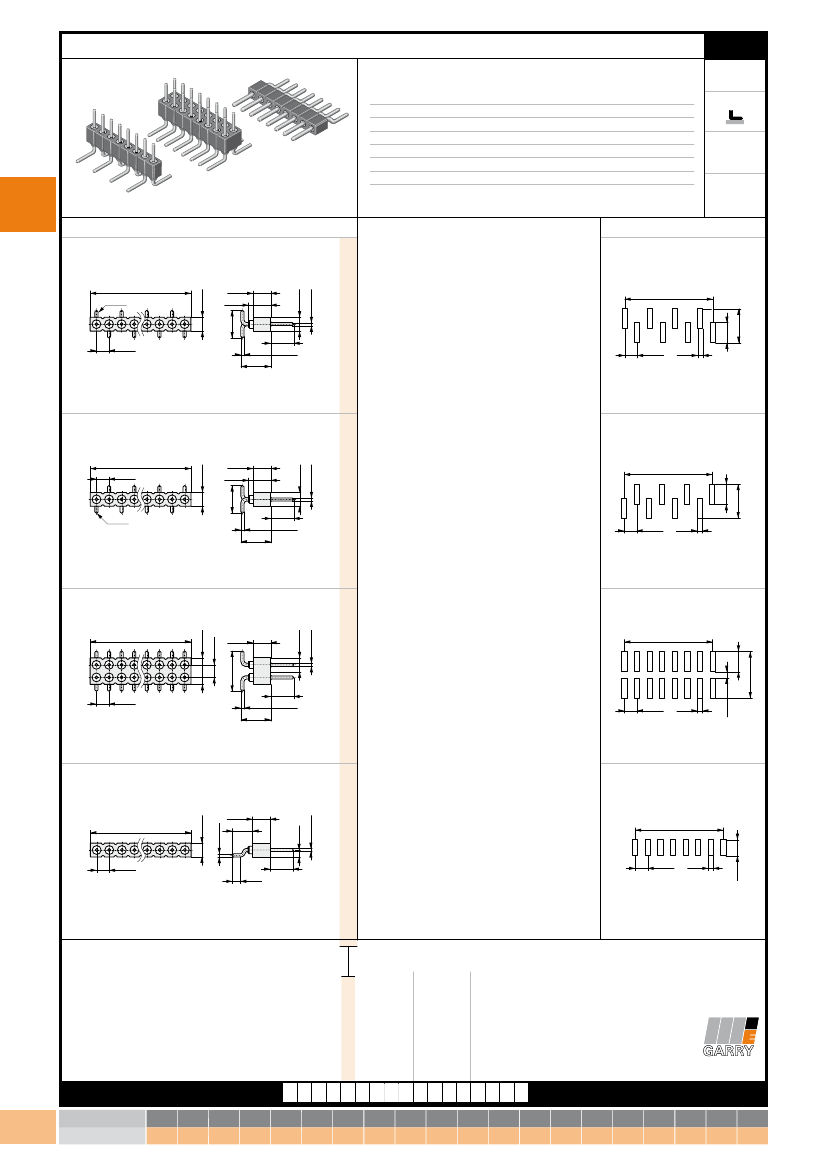

Pin Header SMD with Turned Contacts 2,00 mm

Rated current

1,5 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

169

pitch

termination

contact

size

max.

pincount

2,00

ø 0,47

Product

group

3

Variation

Layout A

2,20

ø0,47

n x 2,00

PIN 1

2,20

2,80

3,50

4,40

PCB Layout

050 / 100

(n-1) x 2,00

3,20

5,40

2,00

4,80

3,60

ø0,50

1

2,00

0,8

Layout B

2,20

ø0,47

n x 2,00

2,00

2,80

3,50

4,40

(n-1) x 2,00

PIN 1

4,80

3,60

ø0,50

2

2,00

0,8

4,20

2,00

2,20

ø0,47

(n/2) x 2,00

2,80

6,40

(n/2-1) x 2,00

3,20

7,40

(n-1) x 2,00

4,80

2,20

ø0,50

n x 2,00

1,10

ø0,47

2,80

3,20

1,27

CS231112_V3

* No. of contacts:

Variation 1 = 003 - 050

Variation 2 = 003 - 050

Variation 3 = 004 - 100

Variation 4 = 002 - 050

Plating contact (T,F)

Variation (1,2,3,4)

Plating:

T = Sn

F = Au

No. of contacts *

(002,... - 100)

www.mpe-connector.de

Order code:

169-?-???-0-?-LS0

4-19 4-20 4-21

3-32

Mating series

see page

165 171 173

2,30

2,00

3,60

4

2,00

0,8

1,00

2,00

3,60

ø0,50

3

2,00

0,8
