MCC
Micro Commercial Components
TM
omponents
20736
Marilla
Street Chatsworth
!"#
$
% !"#
2KBP005
THRU
2KBP10
2.0
Amp Glass
Passivated Bridge
Rectifier
50 to 1000 Volts
KBPL
A
Features
•
•
•
•
•
Glass Passivate Die Construction
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Ideal for Printed Circuit Boards
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Maximum Ratings
Operating Temperature: -55 C to +165 C
Storage Temperature: -55 C to +165 C
MCC
Part Number
2KBP005
2KBP01
2KBP02
2KBP04
2KBP06
2KBP08
2KBP10
Maximum
Recurrent
Peak Reverse
Voltage
50V
100V
200V
400V
600V
800V
1000V
I
F(AV)
I
FSM
Maximum
RMS Voltage
35V
70V
140V
280V
420V
560V
700V
2.0A
60A
Maximum DC
Blocking
Voltage
B
50V
100V
200V
400V
600V
800V
1000V
T
a
=
50
C
8.3ms, half sine
I
F
=
2.0A
per
+
AC
-
I
C
Electrical Characteristics @ 25 C Unless Otherwise Specified
Average Forward
Current
Peak Forward Surge
Current
Maximum
Forward
Voltage Drop Per
Element
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
H
D
G
E
V
F
1.2V
I
R
10
A
0.5mA
T
a
= 25 C
T
a
= 125 C
DIM
A
B
C
D
E
G
H
I
DIMENSIONS
E
INCHES
MIN
.559
.42
.50
.146
.142
.046
.028
.561
MAX
.60
.46
---
.153
.161
.054
.034
---
MM
MIN
14.22
10.60
12.7
3.70
3.60
1.17
0.70
14.25
MAX
15.24
11.68
---
3.90
4.10
1.37
0.90
---
Notes: 1.High Temperature Solder Exemption Applied,See EU Directive Annex Notes 7
Revision:
A
www.mccsemi.com
1 of 3
2011/01/01
2KBP005~2KBP10
MCC
Micro Commercial Components

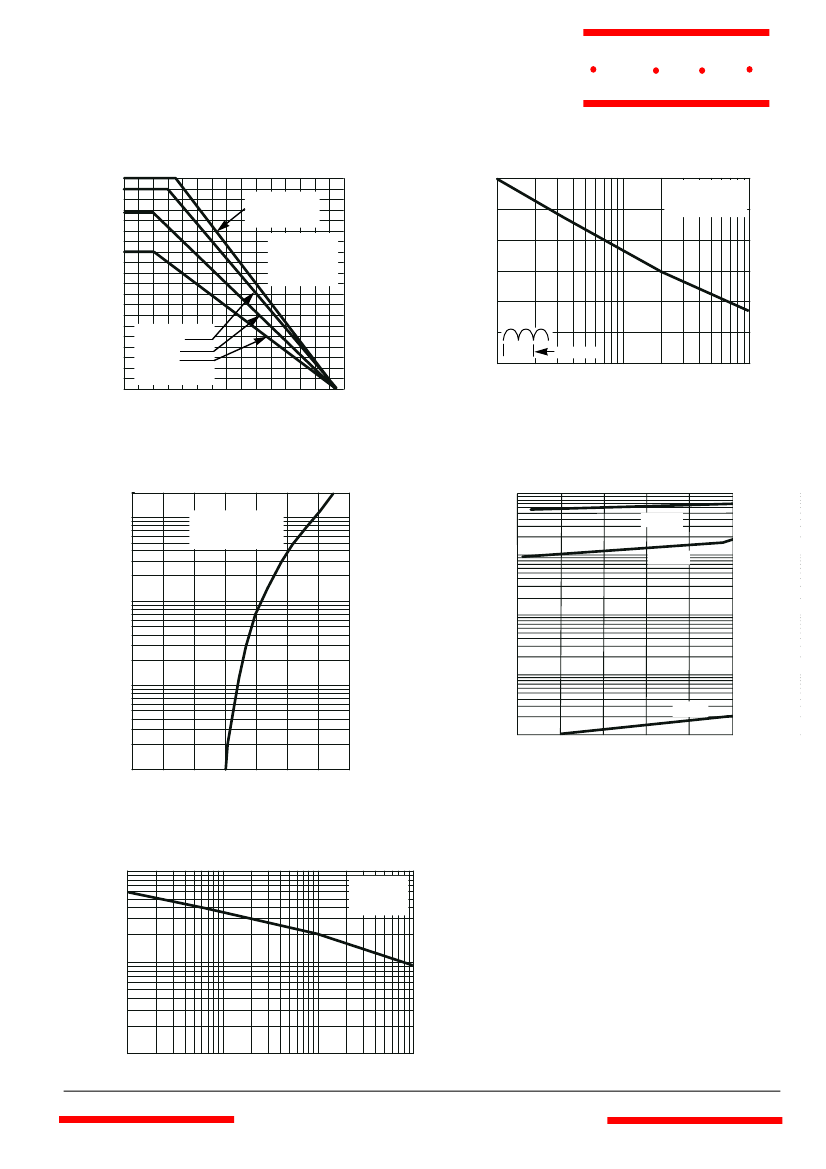

FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
TM
FIG. 1 - DERATING CURVE OUTPUT
RECTIFIED CURRENT
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
2.0
60
50
40
30
20
10
1.0 CYCLE
T
J
=150°C
SINGLE SINE-WAVE
(JEDEC Method)
1.5
1.0
P.C.B.
MOUNTED WITH
0.47 x 0.47”
(12 x 12mm)
COPPER PADS
0.5
CAPACITIVE LOAD
Ipk/I
AV
=5.0
Ipk/I
AV
=10
Ipk/I
AV
=20
(PER LEG)
0
100
120
140
160 170
1
10
NUMBER OF CYCLES AT 60 H
Z
100
0
20
40
60
80
AMBIENT TEMPERATURE, °C
FIG. 3 - TYPICAL FORWARD CHARACTERISTICS
PER LEG
INSTANTANEOUS REVERSE CURRENT, MICROAM-
PERES
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
20
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
100
T
J
=125°C
10
T
J
=100°C
1
1
0.1
T
J
=25°C
0.1
0.01
0
20
40
60
80
100
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
PER LEG
100
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
Revision:
A
www.mccsemi.com
2 of 3
2011/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-BP
Packing
Bulk:
1Kpcs/Box
