JB5DS04MM31 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> JB5DS04MM31

JB5DS04MM31: DescriptionCircular Connector, 4 Contact(s), Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

JB5DS04MM31 Overview

Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug

JB5DS04MM31 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	JB5
Mixed contacts	NO
Installation type	CABLE
Options	WATERPROOF
Housing size	S
Termination type	SOLDER
Total number of contacts	4

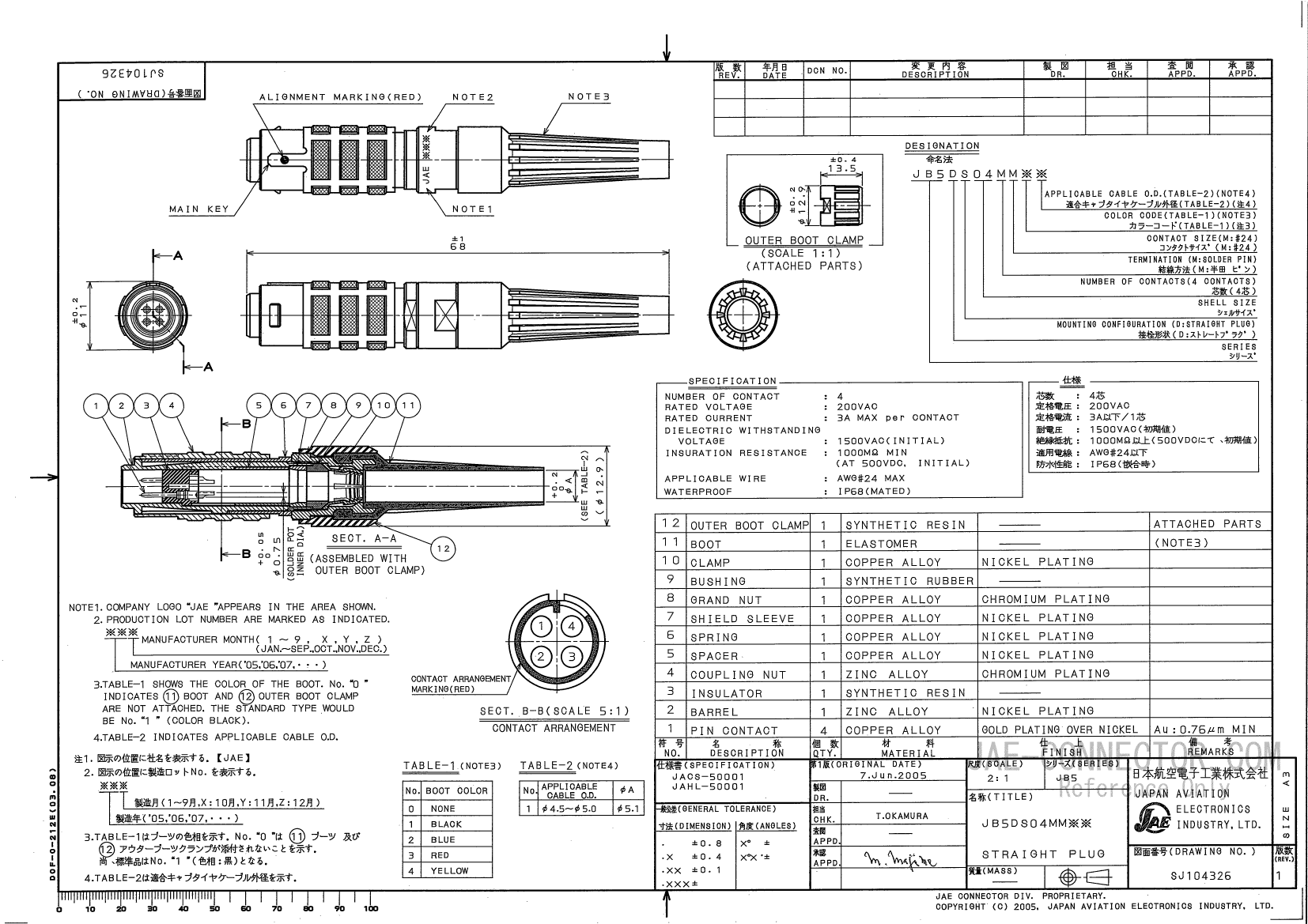

Preview

Download Datasheet

View All

JB5DS04MM31 Related Products

	JB5DS04MM31	JB5DS04MM01	JB5DS04MM11	JB5DS04MM21	JB5DS04MM41
Description	Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug	Circular Connector, 4 Contact(s), Male, Solder Terminal, Plug
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Housing size	S	S	S	S	S
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4	4
Contact completed and terminated	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	-	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
JESD-609 code	e4	e4	-	e4	e4
Manufacturer's serial number	JB5	JB5	-	JB5	JB5
