KX15-50NL6.2DN1E datasheet, PDF

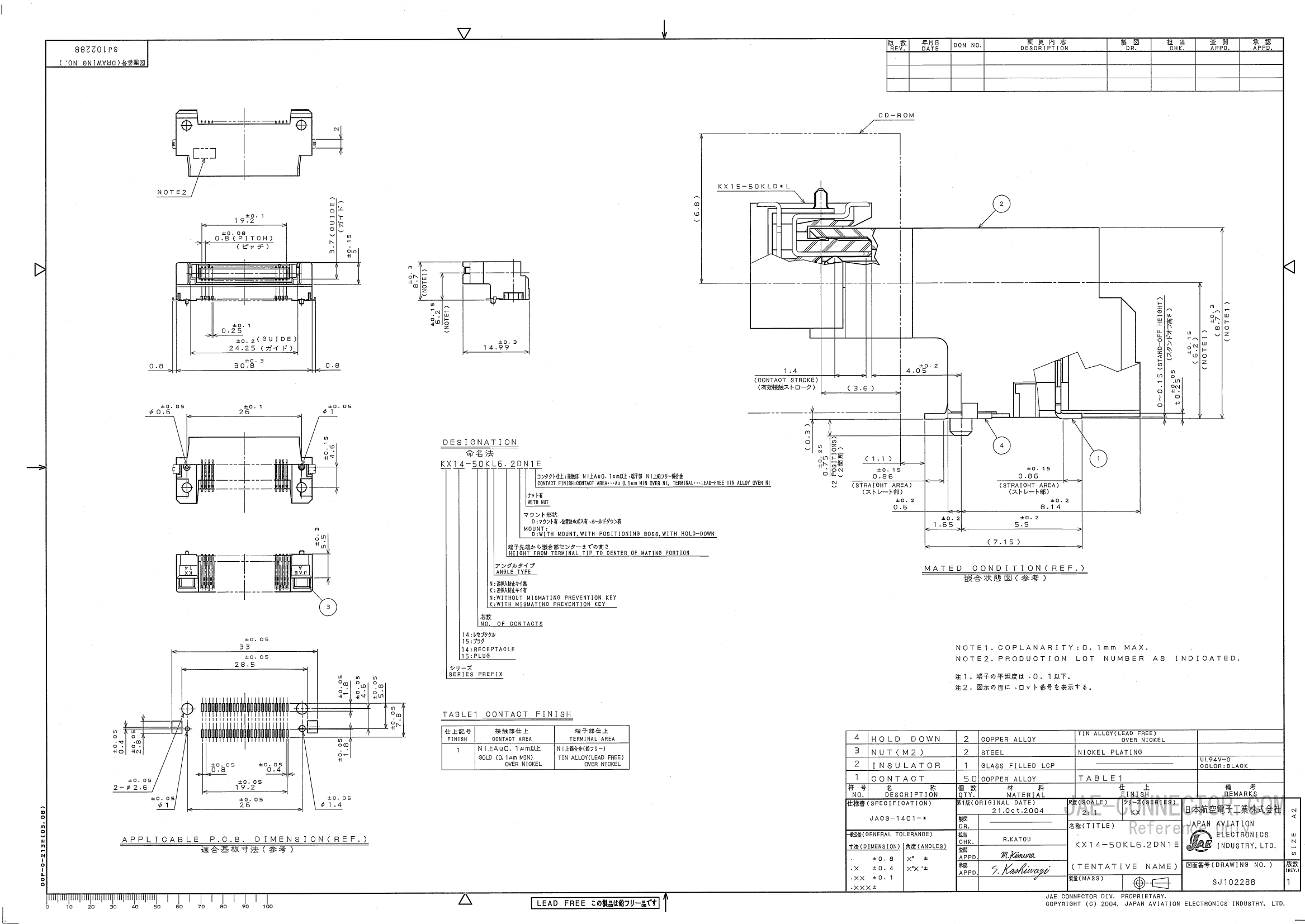

KX15-50NL6.2DN1E: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Plug, LEAD FREE; CategoryThe connector The connector; File Size171KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

KX15-50NL6.2DN1E Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Plug, LEAD FREE

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	KX14
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0

	KX15-50NL6.2DN1E	KX15-50KL6.2DN1E
Description	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Plug, LEAD FREE	Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Plug, LEAD FREE
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown
Body/casing type	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	KX14	KX14
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	50
UL Flammability Code	94V-0	94V-0
