7608681K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 7608681K

7608681K: DescriptionGeneral Purpose Inductor, 680uH, 10%,; CategoryPassive components inductor; File Size197KB，2 Pages; ManufacturerSAGAMI ELEC Co., Ltd.

Download Datasheet Parametric View All

7608681K Overview

General Purpose Inductor, 680uH, 10%,

7608681K Parametric

Parameter Name	Attribute value
Maker	SAGAMI ELEC Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.789 Ω
Nominal inductance(L)	680 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.6 mm
Lead length	21.5 mm
lead spacing	5 mm
Package diameter	8.2 mm
Package length	11 mm
Package form	Radial
Maximum rated current	0.32 A
series	7608
Tolerance	10%

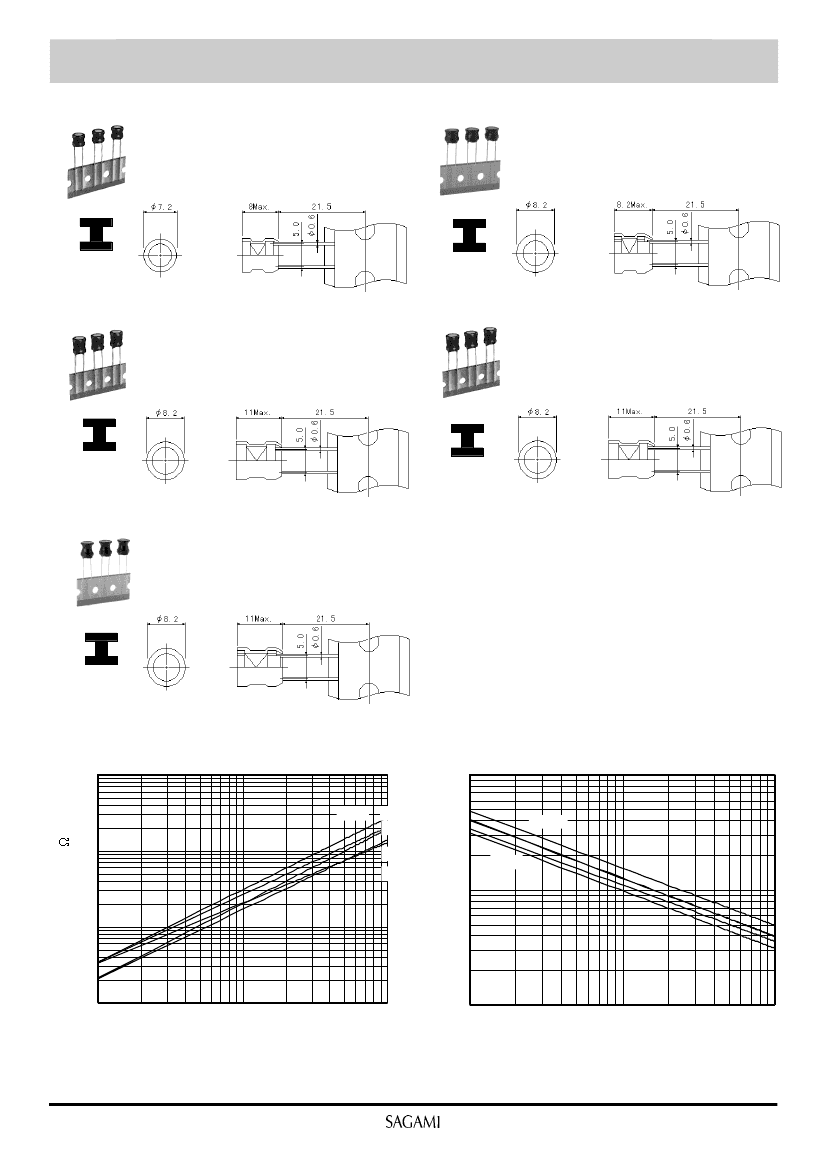

Preview

Download Datasheet

View All

Taping Power Inductors

7607

Frequency Range:~1MHz

Inductance Range:6.8~3300µH

Temperature Coefficient:500±400ppm/°C

7608M

Frequency Range:~1MHz

Inductance Range:10~1000µH

Temperature Coefficient:800±400ppm/°C

Fixed

7608

Frequency Range:~1MHz

Inductance Range:10µH~15mH

Temperature Coefficient:250±400ppm/°C

7608A

Frequency Range:~1MHz

Inductance Range:10~3300µH

Temperature Coefficient:800±400ppm/°C

Fixed

7608N

Frequency Range:~1MHz

Inductance Range:10~3300µH

Temperature Coefficient:800±400ppm/°C

Features

Usable as power supply choke coil.

Fixed

Characteristics of DC Resistance

7607

7608

7608N

7608

Chracteristics of DC Superposition

7608

DC Resistance ( )

DC Current (A)

7607

0.1

0.01

0.1

Inductance (

100

1000

Inductance (

100

1000

Notes: 1. Graphs are based on typical values of each type, not spec. values.

2. DC current value is being measured at 10% decrease of inductance.
