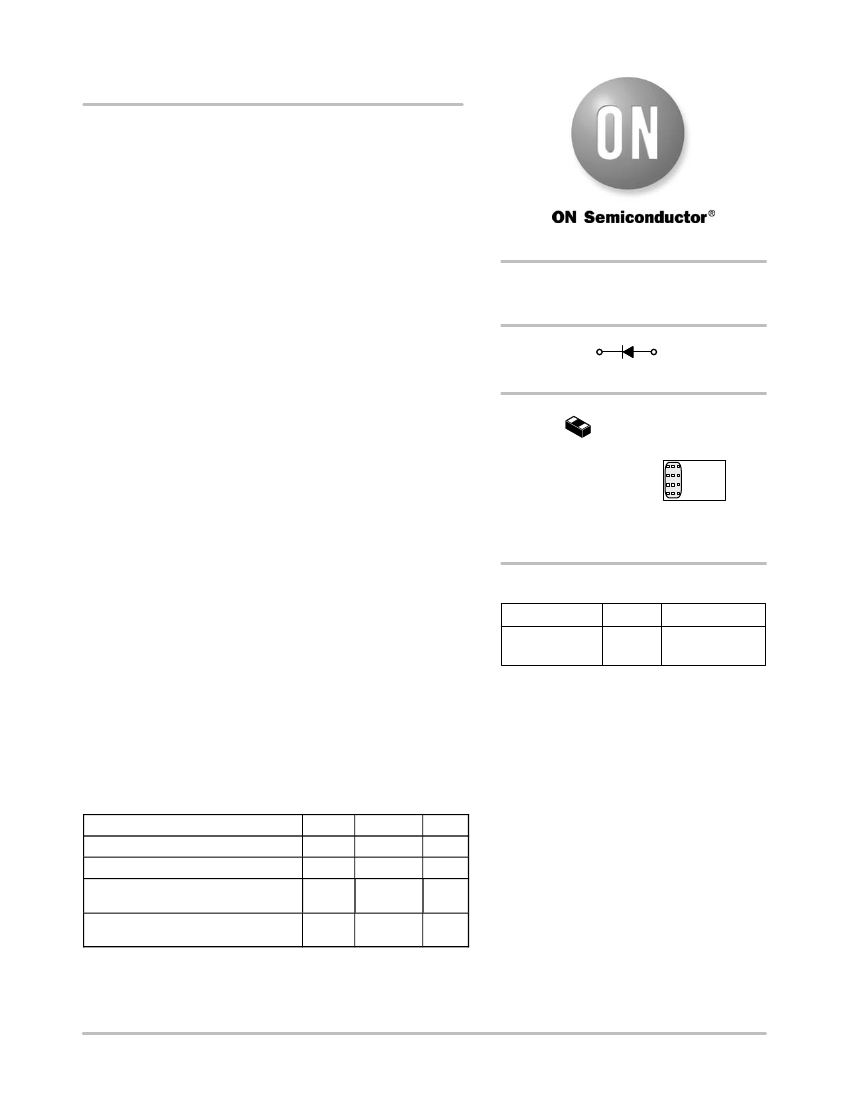

NSR02L30NXT5G
Schottky Barrier Diode
These Schottky barrier diodes are optimized for low forward
voltage drop and low leakage current. The DSN2 (Dual Silicon
No−lead) package is a chip level package using solderable metal
contacts under the package similar to DFN style packages. The DSN
style package enables 100% utilization of the package area for active
silicon, offering a significant performance per board area advantage
compared to products in plastic molded packages. The low thermal
resistance enables designers to meet the challenging task of achieving
higher efficiency and meeting reduced space requirements.
Features
http://onsemi.com
30 V SCHOTTKY
BARRIER DIODE
1
CATHODE
2
ANODE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Very Low Forward Voltage Drop
−
400 mV @ 10 mA
Low Reverse Current
−
0.20
mA
@ 10 V VR
200 mA of Continuous Forward Current
Power Dissipation of 312 mW with Minimum Trace
ESD Rating
−
Human Body Model: Class 3B
ESD Rating
−
Machine Model: Class C
Very High Switching Speed
Low Capacitance
−
CT = 7 pF
This is a Halide−Free Device
This is a Pb−Free Device
MARKING
DIAGRAM
DSN2
(0201)
CASE 152AA
I230
YYY
PIN 1
I230
YYY
= Specific Device Code
= Year Code
Typical Applications
LCD and Keypad Backlighting
Camera Photo Flash
Buck and Boost dc−dc Converters
Reverse Voltage and Current Protection
Clamping & Protection
Mobile Handsets
MP3 Players
Digital Camera and Camcorders
Notebook PCs & PDAs
GPS
Rating
Symbol
V
R
I
F
(60 Hz @ 1 cycle)
I
FSM
ESD
Value
30
200
4.0
>8.0
>400
Unit
V
mA
A
kV
V
ORDERING INFORMATION
Device
NSR02L30NXT5G
Package
Shipping†
DSN2
5000 / Tape & Reel
(Pb−Free)
Markets
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
MAXIMUM RATINGS
Reverse Voltage
Forward Current (DC)
Forward Surge Current
ESD Rating:
Human Body Model
Machine Model
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
©
Semiconductor Components Industries, LLC, 2010
September, 2010
−
Rev. 2
1
Publication Order Number:
NSR02L30/D
NSR02L30NXT5G
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance
Junction−to−Ambient (Note 1)
Total Power Dissipation @ T
A
= 25°C
Thermal Resistance
Junction−to−Ambient (Note 2)
Total Power Dissipation @ T
A
= 25°C
Storage Temperature Range
Junction Temperature
Symbol
R
qJA
P
D
R
qJA
P
D
T
stg
T
J
Min
Typ
Max
400
312
170
735
−40
to +125
+150
Unit
°C/W
mW
°C/W
mW
°C
°C
1. Mounted onto a 4 in square FR−4 board 10 mm sq. 1 oz. Cu 0.06” thick single sided. Operating to steady state.
2. Mounted onto a 4 in square FR−4 board 1 in sq. 1 oz. Cu 0.06” thick single sided. Operating to steady state.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
Reverse Leakage
(V
R
= 10 V)
(V
R
= 30 V)
Forward Voltage
(I
F
= 10 mA)
(I
F
= 200 mA)
Total Capacitance
(V
R
= 5.0 V, f = 1 MHz)
Symbol
I
R
Min
Typ
Max
0.2
3.0
0.40
0.58
7.0
Unit
mA
V
F
V
CT
pF
http://onsemi.com
2
NSR02L30NXT5G
PACKAGE DIMENSIONS
DSN2, 0.6x0.3, 0.4P, (0201)
CASE 152AA−01
ISSUE O
D
A
B
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
DIM
A
A1
b
D
E
e
L
MILLIMETERS
MIN
MAX
0.24
0.30
0.00
0.01
0.22
0.28
0.30 BSC
0.60 BSC
0.40 BSC
0.12
0.18
2X
0.06 C
2X
E
0.06 C
TOP VIEW
0.05 C
A
MOUNTING FOOTPRINT*
0.28
C
SEATING
PLANE
2X
0.05 C
A1
SIDE VIEW
e
0.75
1
2X
0.28
0.30
DIMENSIONS: MILLIMETERS
L
2
2X
b
0.05 C A B
See Application Note AND8398/D for more mounting details
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
BOTTOM VIEW
