REV
ECN NO
REVISIONS
DRN CKD APP
DATE
RoHS COMPLIANT 515-0006F
Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent
markings.
A
B
NEW RELEASE
KLJ MES
RP 10-31-08
NO 2-22-11
UPDATED MODEL;
.240 WAS " .244";
.210 WAS ". 236"; .210 WAS ".213 #.008";
AJF MES
.122 #.004 WAS " .113 #.003"; ADDED .140 REF.
.210
[5,33]
.140
[3,55]
REF.
3mm LED
FRONT PANEL
.210
[5,33]
.122 #
.004
[3,1 #
0,1 ]
.015 #
.005
[0,38 #
0,12 ]
.240
[6,1]
MOUNTING CLIP
.140
[3,56]
NOTES:
1. KIT CONSISTS OF (1) MOUNTING CLIP AND (1) RETAINING RING.
2. MATERIAL: BLACK POLYACETAL (UL 94 HB FLAMMABILITY)
3. OPERATING TEMPERATURE: -40 TO +85
4. DIALIGHT PART NUMBER: 515-0006F
5. MOUNTING HOLE:
6. MOUNTING
1.
2.
3.
.169-.173" ON .059"-.098" THICK PANEL.
C
$
RETAINING RING
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE:
6.000
DRAWING NUMBER
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
C-17677
TITLE
MATERIAL
B
INSTRUCTIONS:
SNAP MOUNTING CLIP INTO FRONT OF PANEL
INSERT
3mm LED INTO MOUNTING CLIP FROM REAR OF PANEL
SNAP RETAINING RING OVER MOUNTING CLIP FROM REAR
FRACTIONS: #
1/64
DECIMALS (.XX): #
.02
DECIMALS (.XXX): #
.010
ANGLES:
# $
3

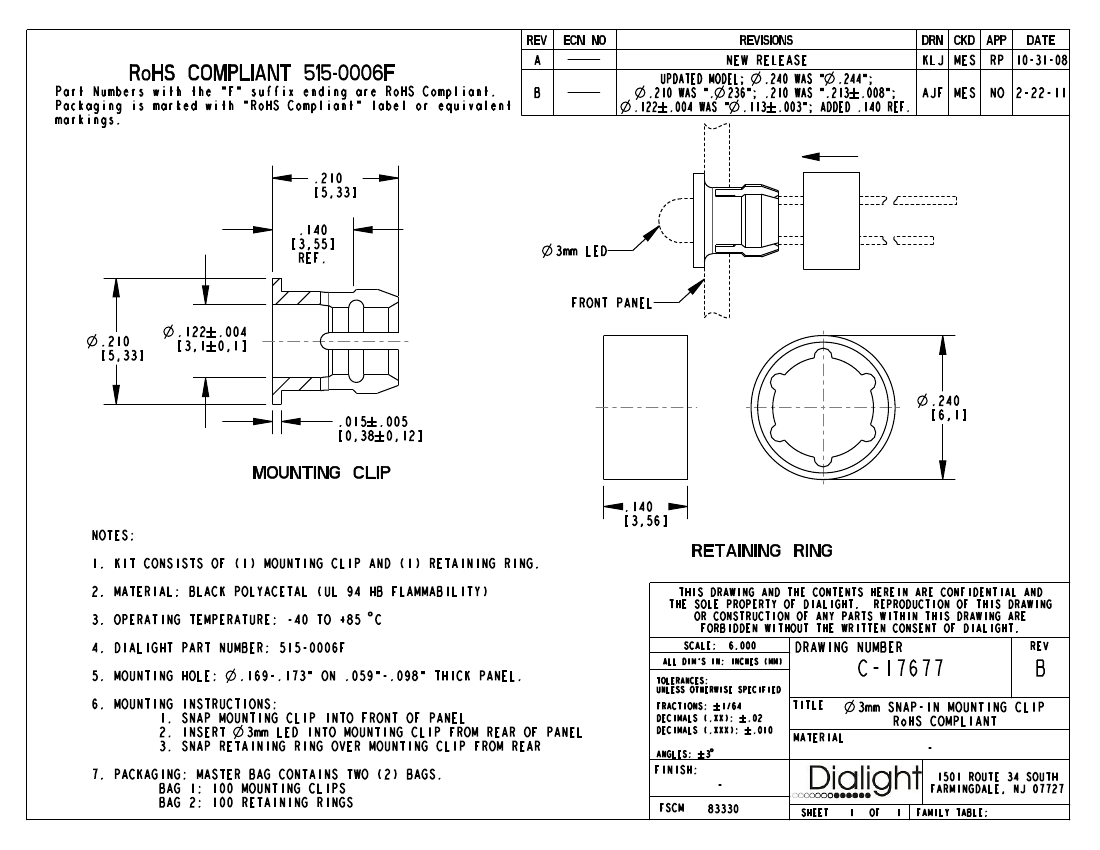

3mm SNAP-IN MOUNTING CLIP
RoHS COMPLIANT
-
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
7. PACKAGING: MASTER BAG CONTAINS TWO (2) BAGS.
BAG 1: 100 MOUNTING CLIPS
BAG 2: 100 RETAINING RINGS
FINISH:
-
FSCM
83330
SHEET
1
OF
1
