REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
AJF KLJ
NO 11-16-09
.325
[8,26]
.030
[0,76]
.089
[2,26]
DIFFUSED MATTE FINISH
OUTPUT SURFACE
.066 #
.002
[1,68 #
0,05 ]
+.002
.072
-.000
+0,05
1,83
-0,00
RIBS (3) @ 120 $
.218
[5,54]
POLISHED SURFACES
RECOMMENDED MOUNTING METHODS
BREAK ALL
SHARP EDGES
[
]
BREAK ALL
SHARP EDGES
.068 -.071
[1,73 -1,80 ]
.098
[2,49]
.068 -.071
[1,73 -1,80 ]
PANEL
.063 -.218
[1,61 -5,53 ]
PANEL
.107
[2,72]
.325
[8,26]
SCALE
3.000
NOTES:
1. COMPONENT TO BE MOLDED IN CLEAR TRANSMISSIVE POLYCARBONATE
(UL 94V-0 FLAMMABILITY).
2. COMPONENT DESIGNED TO BE PRESSED INTO PANEL.
3. STORAGE AND OPERATING TEMPERATURE: -30 C TO +100 C.
$
$
4. RECOMMENDED MOUNTING HOLE .068 [1,75] TO .071 [1,8] DIAMETER.
5. DIALIGHT PART NUMBER: 515-1027F.
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE:
8.000
DRAWING NUMBER
REV
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
C-17799
TITLE
MATERIAL
A
RoHS COMPLIANT 515-1027F
Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent
markings.
FRACTIONS: #
1/64
DECIMALS (.XX): #
.01
DECIMALS (.XXX): #
.005
DECIMALS (.XXXX): #
.0005
ANGLES: # $
1

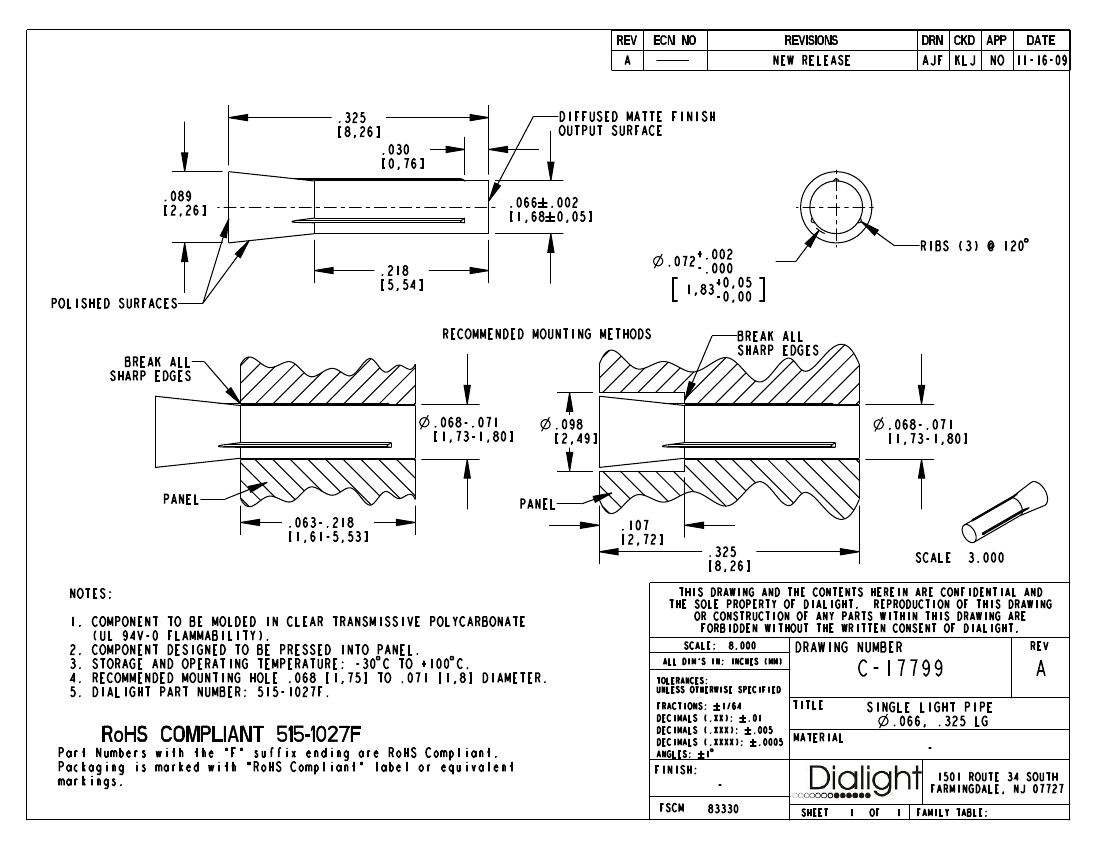

SINGLE LIGHT PIPE
.066, .325 LG
-
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FINISH:
-
FSCM
83330
SHEET
1
OF
1
