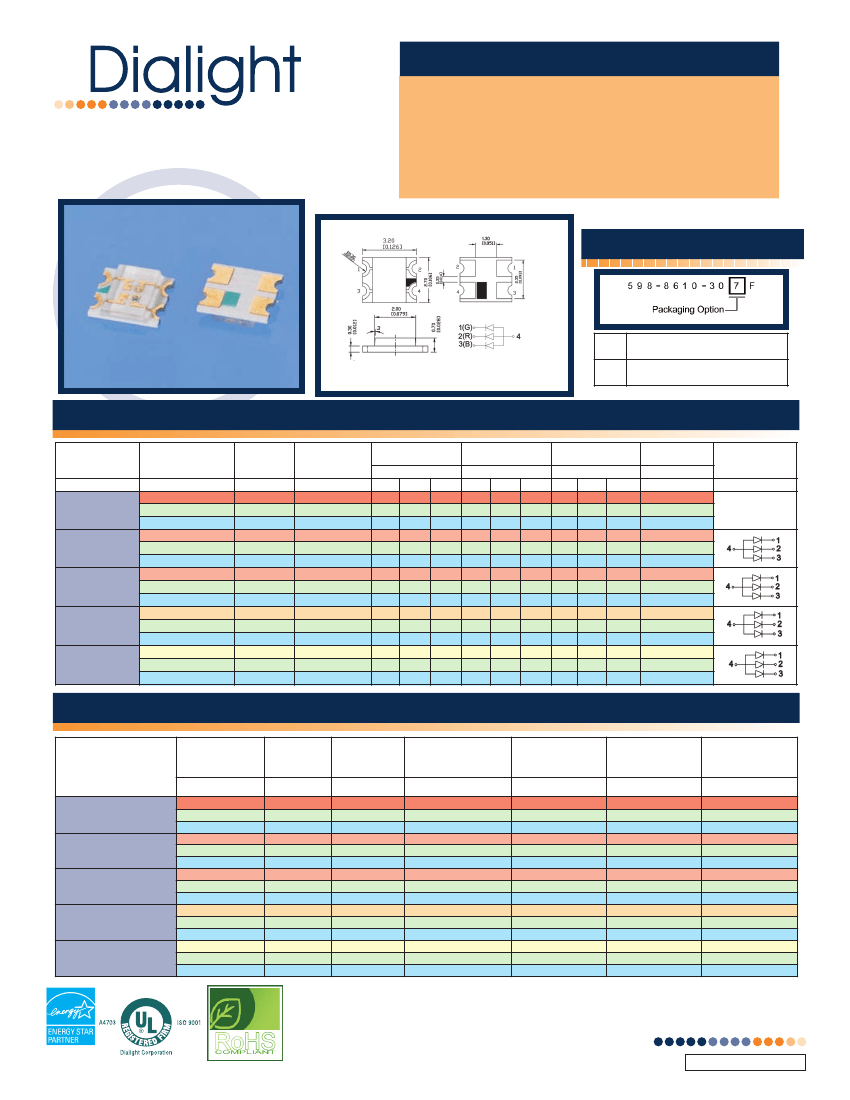

FEATURES / BENEFITS
Compatible with automatic placement equipment
Micro LED
®
SMD LED
“598 SERIES” 1210 PACKAGE
(3.2mm X 2.7mm X 0.7mm) Tri-Color
RoHS compliant
Packaged in 8mm tape, 7” reel and 20 per strip
Meets EIA-481-1 pkg. std.
Package Outline Drawing:
ORDERING INFORMATION
2
Notes 1. All dimensions are in mm [inches];
2. Tolerances are ±0.1mm [0.004inch] unless noted.
20 pieces on tape
7” reel 3000pcs / reel
7
PART NUMBERS
Dialight P/N
EMITTED COLOR
MATERIAL
LENS COLOR
LUMINOUS
INTENSITY
If = 20 ma
MIN TYP MAX
40
60
80
90
120
220
60
90
140
90
120
150
90
150
220
30
60
90
40
60
80
80
100
150
30
40
60
70
120
150
150 220
300
60
90
140
90
110
150
150 220
300
60
90
140
DOMINANT
FORWARD
WAVELENGTH
VOLTAGE
If = 20 ma
If = 20 ma
MIN TYP MAX MIN TYP MAX
630 635 645 1.9
2
2.2
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
620 625 630 1.9
2
2.2
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
620 625 630 1.8 2.2
2.4
520 525 530
3
3.2
3.5
465 470 475
3
3.2
3.5
600 605 610 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
587 590 592 1.8 2.2
2.4
520 525 530 2.8 3.2
3.5
465 470 475 2.8 3.2
3.5
VIEWING
ANGLE
° DEGREES
140
140
140
140
140
140
140
140
140
140
140
140
140
140
140
PINOUT
598-8610-307F
598-8920-307F
598-9920-307F
598-8930-307F
598-8940-307F
RED
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
RED-ORANGE
GREEN
BLUE
ORANGE
GREEN
BLUE
YELLOW
GREEN
BLUE
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
AlInGaP
InGaN
InGaN
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Diffused
Diffused
Diffused
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
SEE EXAMPLE
G
RO
B
G
RO
B
G
O
B
G
Y
B
ABSOLUTE RATINGS
(@ Ta = 25ºC)
Power
Dissipation
(mW)
598-8610-307F
44
70
70
44
70
70
44
70
70
48
70
70
48
70
70
Forward
Current
(mA)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Reverse
Voltage
(V)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Storage
Temperature
Range
(ºC)
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
-40~+100
Peak Pulse
Forward
Current
(mA)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Electrostatic
Discharge
(HBM)
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
Dialight P/N
598-8920-307F
598-9920-307F
598-8930-307F
598-8940-307F
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981210TRI_A
Micro LED
®
SMD LED
“598 SERIES” 1210 PACKAGE
(3.2mm X 2.7mm X 0.7mm) Tri-Color

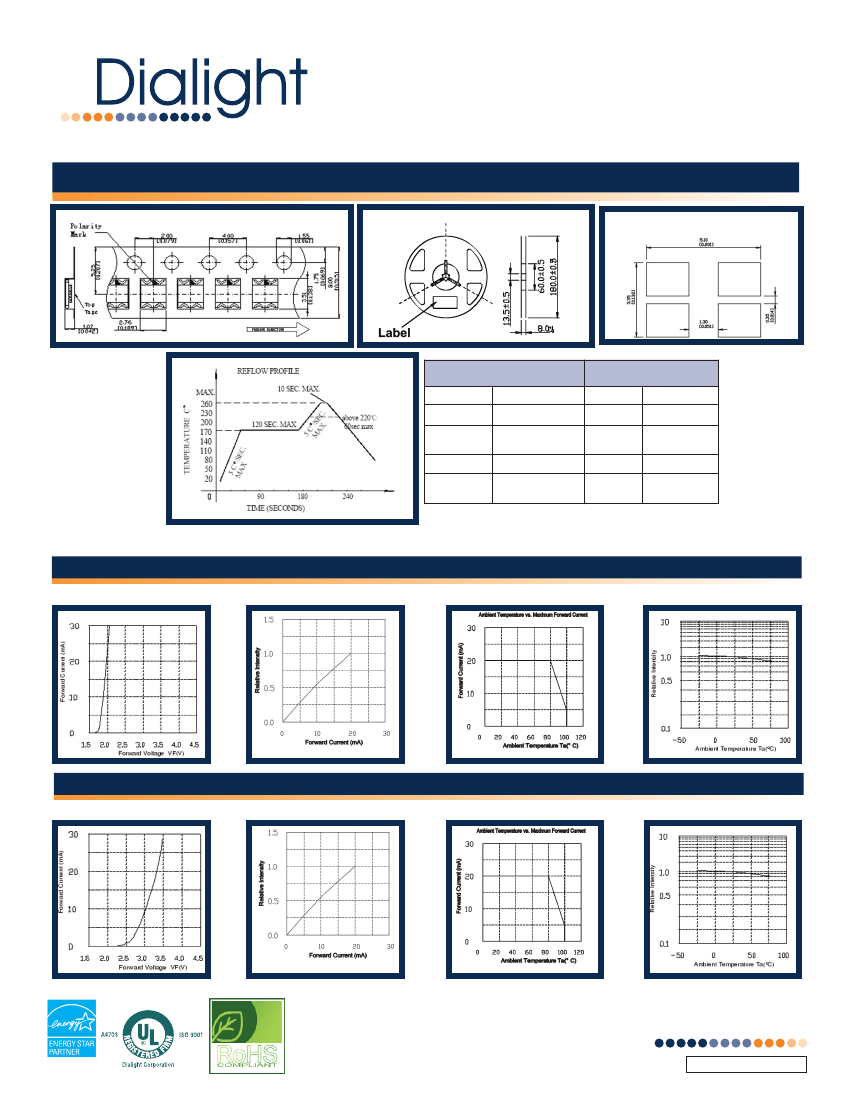

MECHANICAL DIMENSIONS
DIMENSIONS OF TAPE (UNIT:mm)
DIMENSIONS OF REEL (UNIT:mm)
Recommended Soldering Pattern For
Reflow Soldering
REFLOW SOLDERING HAND SOLDERING
Pre-heat
Pre-heat time
Peak
temperature
Soldering time
Condition
160~180oC
120 seconds Max.
260oC Max.
10 seconds Max.
Refer to
temperature -profile
Soldering
time
3 second Max
(one time only)
Temperature
300oC Max.
OOPTICAL
AND ELECTRICAL CHARACTERISTICS CURVES
RED 630-642NM, RED-ORANGE 620-630NM, ORANGE 600-610NM, YELLOW 590-595NM, YELLOW 583-590NM, YELLOW GREEN 570-575NM, GREEN 562-570NM
FORWARD VOLTAGE VS FORWARD CURRENT (Ta=25°C)
RELATIVE INTENSITY VS FORWARD CURRENT (Ta=25°C)
DERATING
RELATIVE INTENSITY VS AMBIENT TEMPERATURE
GREEN 520-525NM, BLUE 470-475NM
FORWARD VOLTAGE VS FORWARD CURRENT (Ta=25°C)
RELATIVE INTENSITY VS FORWARD CURRENT (Ta=25°C)
DERATING
RELATIVE INTENSITY VS AMBIENT TEMPERATURE
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEI5981210TRI_A
