564-0140-777: DescriptionT-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size101KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

564-0140-777 Overview

T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm

564-0140-777 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
color	ORANGE
Configuration	SEPARATE, 3 ELEMENTS
JESD-609 code	e0
Nominal luminous intensity	7.0 mcd
Installation features	RADIAL MOUNT
Number of functions	3
Number of terminals	6
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	15.24 mm
method of packing	BULK
peak wavelength	600 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

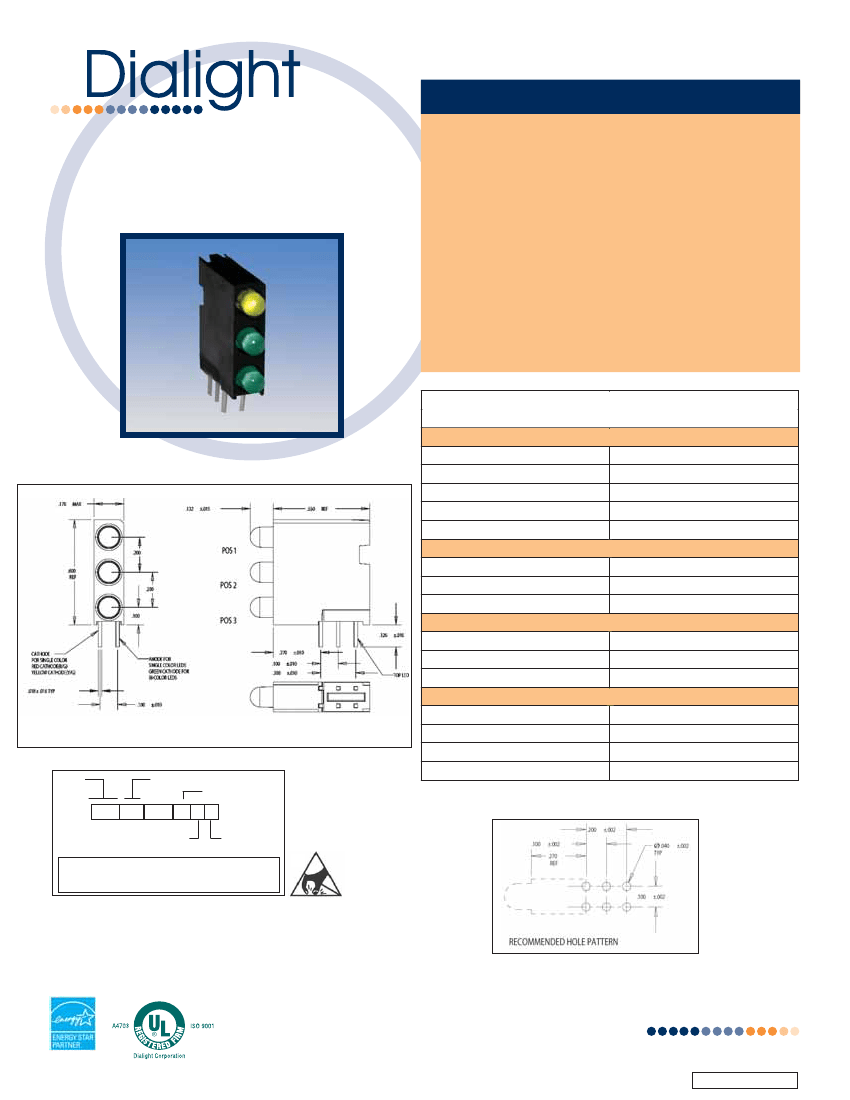

FEATURES / BENEFITS

564 Series

3mm LED CBI

®

Circuit Board Indicator

TRI-LEVEL

Multiple CBIs form horizontal LED arrays on 4.45 mm (0.175”)

center lines.

High Contrast, UL 94 V-0 rated, black housing

Housing stand-offs facilitate PCB cleaning

Solderability per MIL-STD-202F, method 208F

LEDs are safe for direct viewing per IEC 825-1, EN 60825-1

PART NUMBER

HIGH EFFICIENCY - LED TYPE 1

564-0140-111

564-0140-132

564-0140-222

564-0140-777

COLOR COMBO *

RED/RED/RED

RED/YELLOW/GREEN

GREEN/GREEN/GREEN

ORANGE/ORANGE/ORANGE

LOW CURRENT - LED TYPE 2

564-0240-111

564-0240-132

564-0240-222

RED/RED/RED

RED/YELLOW/GREEN

GREEN/GREEN/GREEN

INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 2

564-0340-111

564-0340-132

564-0340-222

RED/RED/RED

RED/YELLOW/GREEN

GREEN/GREEN/GREEN

BI-COLOR - LED TYPE 7

564-0740-111

RED/GREEN-RED/GREEN-

RED/GREEN

PART NUMBER ORDERING CODE

Series

LED Type

Top LED Position

564-0740-444

YELLOW/GREEN-YELLOW/GREEN-

YELLOW/GREEN

* Top-Middle-Bottom LED

564 -0x

40

-x x x

Bottom

LED Position

ATTENTION:

OBSERVE

PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DEVICES

Middle LED Position

Color =

0) blank, 1) red or red/green bi-color,

2) green, 3) yellow, 4) yellow/green bi-color,

7) orange

Contact factory for information on

custom color combinations.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEA564X001_B

564-0140-777 Related Products

	564-0140-777	564-0240-222	564-0340-111	564-0340-132	564-0340-222
Description	T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm	T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm	T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm	T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm	T-1 SINGLE COLOR LED ARRAY, GREEN, 3 mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT	DIALIGHT
Reach Compliance Code	compliant	compliant	compli	compli	compliant
color	ORANGE	GREEN	RED	RED/YELLOW/GREEN	GREEN
Configuration	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 3 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 3 ELEMENTS WITH BUILT-IN RESISTOR
JESD-609 code	e0	e0	e0	e0	e0
Nominal luminous intensity	7.0 mcd	1.6 mcd	29.0 mcd	29.0/12.6/19.0 mcd	19.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	3	3	3	3	3
Number of terminals	6	6	6	6	6
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	TRIPLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	600 nm	565 nm	635 nm	635/585/565 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg
Base Number Matches	1	1	-	-	1
