RESISTOR, TEMPERATURE DEPENDENT, PTC, 4200ohm, CHASSIS MOUNT
B59053-A180-A10 Parametric
Parameter Name
Attribute value
Is it lead-free?
Lead free
Is it Rohs certified?
conform to
Maker
EPCOS (TDK)
package instruction
,
Reach Compliance Code
compliant
JESD-609 code
e4
Manufacturer's serial number
B59053
Installation features
CHASSIS MOUNT
Number of terminals
2
Maximum operating temperature
200 °C
Minimum operating temperature
-40 °C
Package shape
DISK PACKAGE
method of packing
TRAY
Rated (AC) voltage (URac)
230 V
resistance
4200 Ω
Resistor type
PTC THERMISTOR
surface mount
NO
Terminal surface
Silver (Ag)
Terminal shape
SPECIAL
Thermistor Applications
HEATING ELEMENT
Tolerance
35%
B59053-A180-A10 Preview

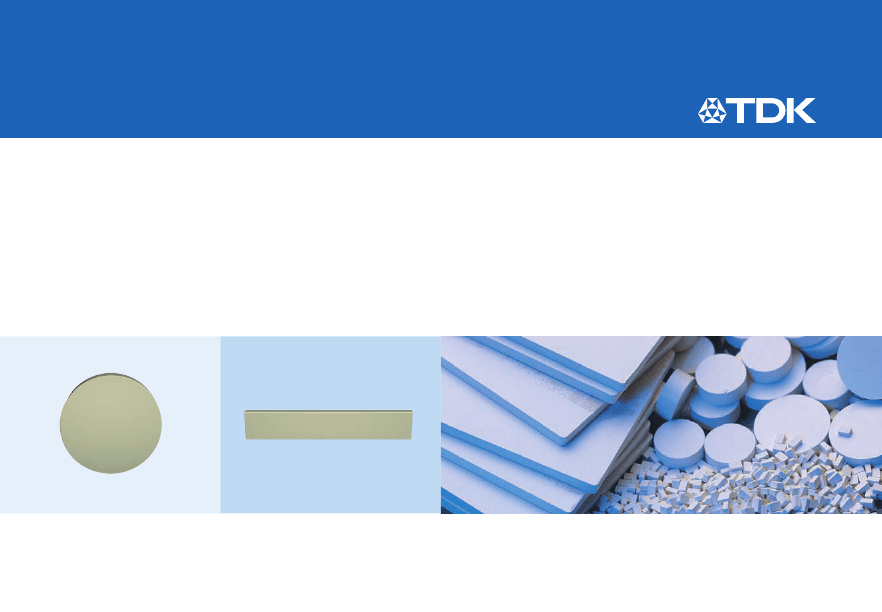

EPCOS Sample Kit 2012
PTC Thermistors
Heating Elements for 230 V Applications
www.epcos.com
PTC Thermistors
Heating elements for 230 V applications
Type
T
ref
(typ.)
°C
110
150
180
220
50
70
110
130
150
180
220
270
R
min
(V = V
R
)
V
960
700
530
640
225
2)
130
100
105
90
66
80
85
T
surf
1)
(V = V
R
)
°C
135
170
200
235
100
115
145
160
180
205
240
280
R
R
(V
meas
≤
1.5 V)
V
4200
4200
4200
6000
700
700
700
700
700
700
1000
1300
±35%
±35%
±35%
±35%
±50%
±50%
±50%
±50%
±50%
±50%
±50%
±50%
V
BD
V
500
500
500
500
400
400
400
400
400
400
400
340
Curvature
mm
<
<
<
<
<
<
<
<
<
<
<
<
0.2
0.2
0.2
0.2
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
B59053A0110A010
B59053A0150A010
B59053A0180A010
B59053A0220A010
B59102R0050A010
B59102R0070A010
B59102R0110A010
B59102R0130A010
B59102R0150A010
B59102R0180A010
B59102R0220A010
B59102R0270A010
1
2
3
4
Ordering code
Dimensional drawing
V
max
= 265 V AC, V
R
= 230 V AC
A53
A53
A53
A53
R102
R102
R102
R102
R102
R102
R102
R102
5
6
7
8
9
10
11
12
Application examples:
¼
A53:
Home appliances such as washing machine doorlocks, thermal actuators, insecticide and perfume vaporizers
¼
R102:
Home appliances such as hair curlers, fan heaters, coffee machines, glue guns
Data sheets are available at: www.epcos.com/ptc_heating
1) Measured between points
2) T (R
PTC
= R
min
) < 25 °C
Important information:
It is incumbent on the customer to check and decide whether a product is suitable for use in a particular application. Our products are described in detail in our data sheets.
Our
Important notes
and the product-specific
Cautions and warnings
must be observed. All relevant information is available through our sales offices.
