B59155-M160-A70 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> B59155-M160-A70

B59155-M160-A70: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 100ohm, THROUGH HOLE MOUNT; CategoryPassive components The resistor; File Size124KB，4 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B59155-M160-A70 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 100ohm, THROUGH HOLE MOUNT

B59155-M160-A70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PROBE
JESD-609 code	e3
Manufacturer's serial number	B59155
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	40 °C
Minimum operating temperature
Package shape	TUBULAR PACKAGE
Rated (AC) voltage (URac)	30 V
resistance	100 Ω
Resistor type	PTC THERMISTOR
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	FLEXIBLE WIRE
Thermistor Applications	OVERLOAD PROTECTION

B59155-M160-A70 Preview

Motor and Machine Protection

B59155

M 155

Applications

Thermal protection of winding in electric motors

Features

Thermistor pellet with insulating encapsulation

Silver-plated and Teflon(PTFE)-insulated AWG 26 litz wires

Trip temperature coded in litz wire color

Characteristics for nominal threshold temperatures of 90 bis 160

°C

conform with DIN 44 081

Can be used in conjunction with Siemens tripping units

Max. operating voltage

= 0 … 40

°C)

max

Max. measuring voltage

– 25 K …

NAT

+ 15 K)

Mes,max

Rated resistance

PTC

≤

2,5 V)

Insulation test voltage

Response time

Operating temperature range (V = 0)

(V =

max

)

Type

7,5

≤

100

2,5

– 25/+ 180

0/40

Ω

kV ac

°C

NAT

± ∆

°C

100

110

120

130

140

145

150

155

160

170

180

M 155

NAT

–

∆

PTC

≤

2,5 V)

Ω

≤

570

≤

570

≤

570

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

≤

550

NAT

∆

PTC

≤

2,5 V)

Ω

≥

570

≥

570

≥

570

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

≥

1330

NAT

+ 15 K)

PTC

≤

7,5 V)

Ω

—

≥

NAT

+ 23 K)

PTC

≤

2,5 V)

Ω

≥

10 k

≥

10 k

≥

10 k

—

136

Siemens Matsushita Components

B59155

M 155

Dimensions in mm

Type

Color coding

of litz wires

white/grey

white/brown

white/white

green/green

red/red

brown/brown

grey/grey

blue/blue

white/blue

white/black

black/black

blue/black

blue/red

white/green

white/red

Ordering code

M 155

B59155-M60-A70

B59155-M70-A70

B59155-M80-A70

B59155-M90-A70

B59155-M100-A70

B59155-M110-A70

B59155-M120-A70

B59155-M130-A70

B59155-M140-A70

B59155-M145-A70

B59155-M150-A70

B59155-M155-A70

B59155-M160-A70

B59155-M170-A70

B59155-M180-A70

Siemens Matsushita Components

137

B59155

M 155

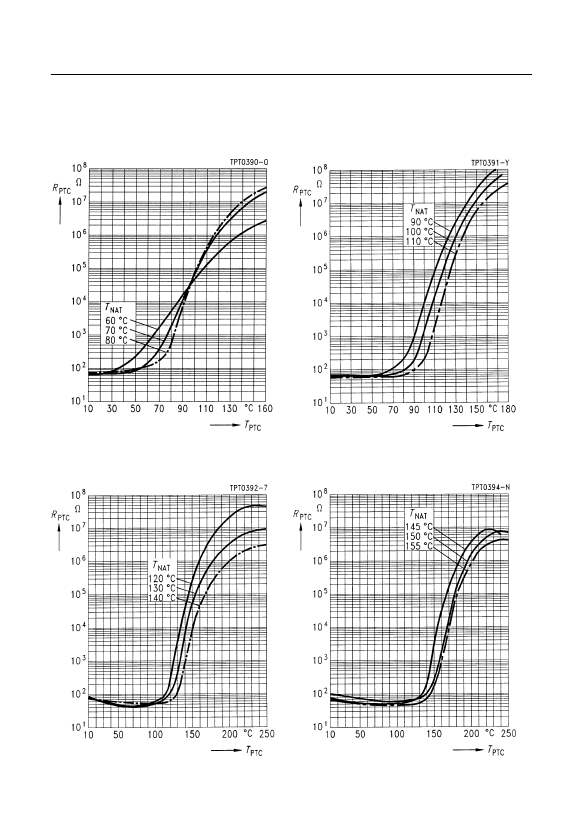

Characteristics (typical)

PTC resistance

PTC

versus PTC temperature

PTC

(measured at low signal voltage)

PTC resistance

PTC

versus PTC temperature

PTC

(measured at low signal voltage)

138

Siemens Matsushita Components

B59155

M 155

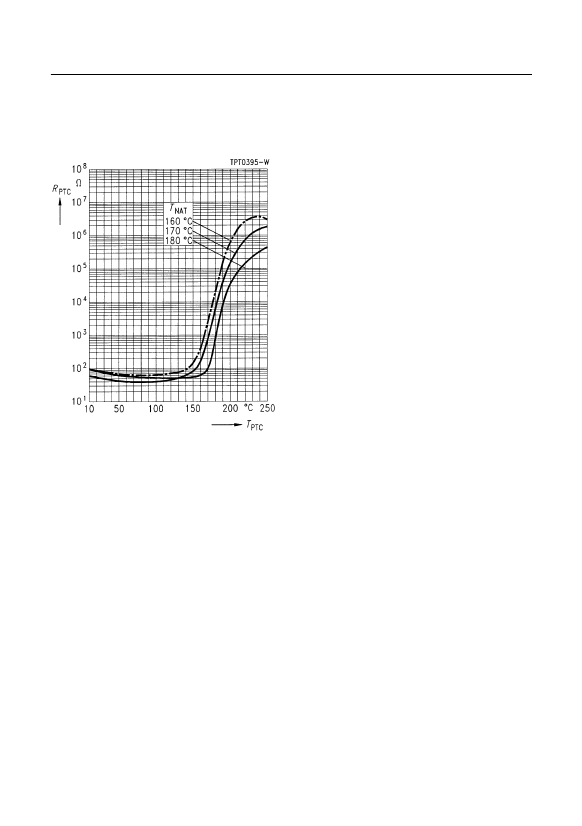

Characteristics (typical)

PTC resistance

PTC

versus PTC temperature

PTC

(measured at low signal voltage)

Siemens Matsushita Components

139
