3DAF1_11 Overview

Compact RFI Line Filter with DC Inlet Connection

Preview

Download Datasheet

View All

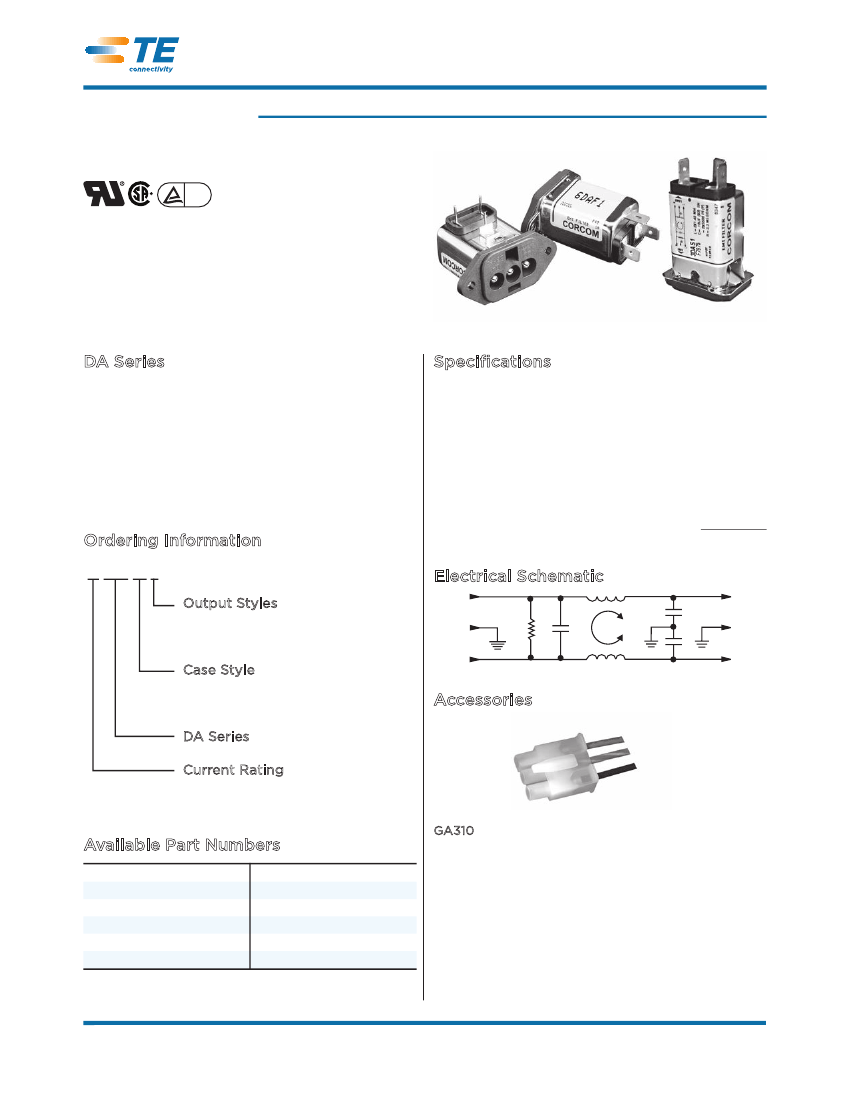

Corcom Product Guide

Compact RFI Line Filter with DC Inlet Connection

Catalog: 1654001

Issue Date: 06.2011

DA Series

60 950

UL Recognized

CSA Certiﬁed

TUV Certiﬁed

DAFP

DAF1

DAS1

DA Series

• General purpose line ﬁlters for DC applications up

to 125VDC.

• Compact with a 3-pin inlet connector

• Available in 3, 6, 10 and 15A versions

• Flange mount with 1/4” or PCB terminals

• Mates with a standard MOLEX* connector

(HCS Series)

Speciﬁcations

Hipot rating (one minute):

Line to Ground:

LIne to Line:

Rated Voltage (max):

Rated Current:

2250 VDC

1450 VDC

125 VDC

3 to 15A

Ordering Information

3 DA F 1

Output Styles

1 – .250 [6.3] spade terminals

P – PC board mount pins

Case Style

F – Flange mount

S – Snap-in

DA Series

Current Rating

3, 6, 10 or 15A

Operating Ambient Temperature Range

-10°C to +55°C

(at rated current Ir):

In an ambient temperature (Ta) higher than +55°C

the maximum operating current (Io) is calculated as

follows: Io = Ir

(85-Ta)/45

Electrical Schematic

LINE

LOAD

Accessories

Red

Green/Yellow

Black

Available Part Numbers

3DAF1

3DAS1

3DAFP

6DAF1

6DAS1

6DAFP

10DAF1

10DAS1

10DAFP

15DAF1

15DAS1

15DAFP

GA310 – (shown above) Pre-assembled connector

housing and terminals with three 36” long 18 gauge

wires to mate with DA Series ﬁlters

MOLEX* connector part numbers:

03-12-1036

18-12-1222

Connector housing for DA Series

Female terminals (3 per connector)

 ½½ ½½

212

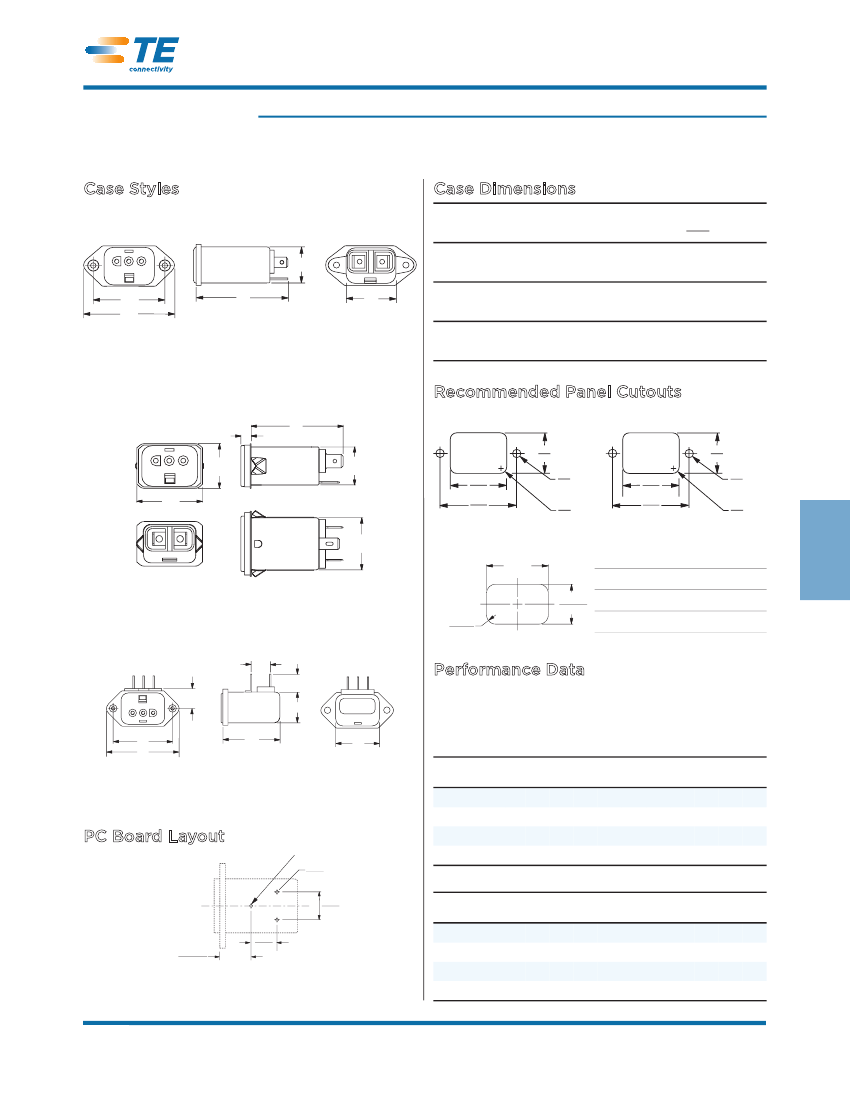

Dimensions are in inches and millimeters unless otherwise speciﬁed. Values in italics

are metric equivalents. Dimensions are shown for reference purposes only.

Speciﬁcations subject to change.

For email, phone or live chat, please go to

te.com/help

corcom.com
