CORCOM Product Guide
High Performance RFI Power Line Filters for Medical Equipment
HT Series
HT6
UL Recognized
CSA Certified
VDE Approved
HT7
HT3
HT1
HT Series

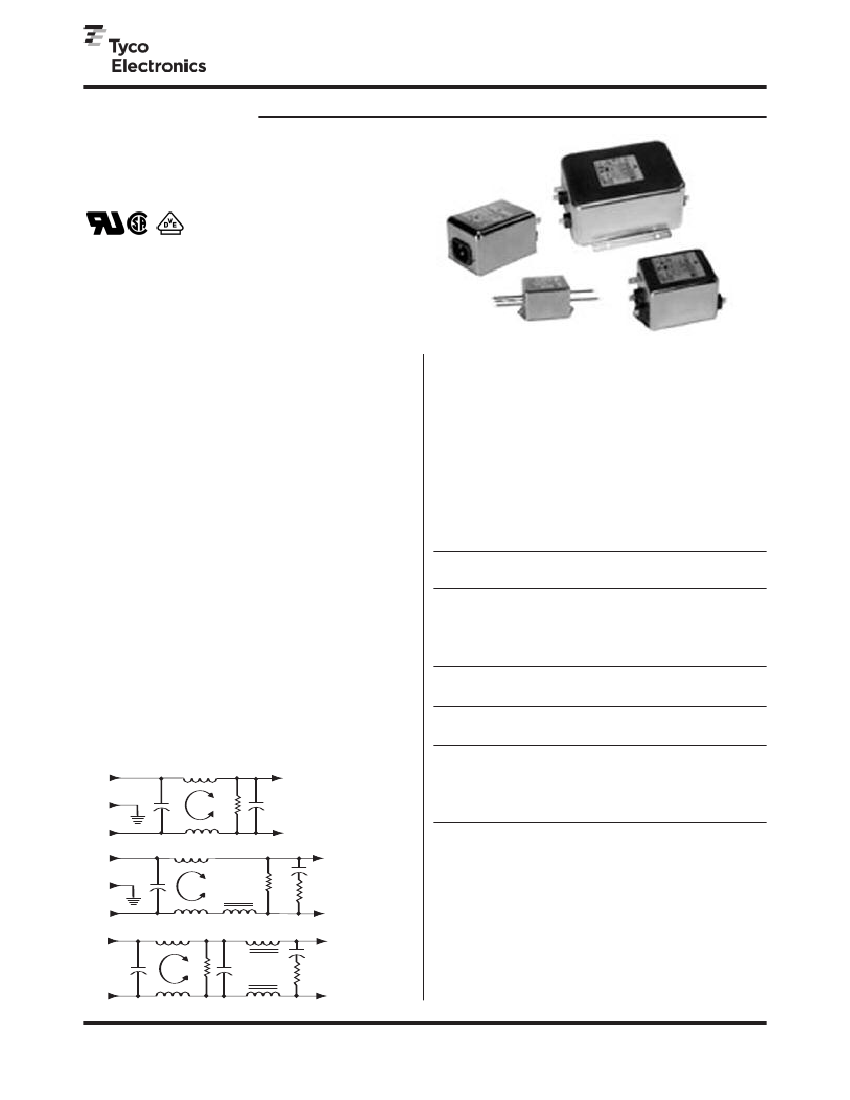

The HT series power line filters provide superior common-
mode and premium differential-mode attenuation to RFI
noise on the frequency range from 10kHz to 30MHz, for
IEC 60601 and UL2601 patient-connected equipment, as
well as all other electronic equipment that cannot tolerate
leakage current.
They are a size- and cost-effective solution to the problem
of meeting both medical leakage current limits and
conducted emissions limits in equipment with high noise
sources (such as switching power supplies). HT series
filters can meet the following Conducted Emissions
standards:
• European Normalized Standards based on EN55022,
Level A (in many cases, Level B also).
• FCC Part 15, Computing Devices, Class B.
• FCC Part 18, ISM Equipment, Industrial and
Consumer.
Note: When using the models with an IEC connector,
remember that the leakage current of the companion line
cord, GA400, is more significant than that of the filter -
which may disqualify this line cord from use in patient care
applications.
For more information on UL2601, see Appendix C.
Specifications
Maximum leakage current,each line-to-ground
@ 120 VAC 60 Hz:
@ 250 VAC 50 Hz:
Hipot rating (one minute):
line-to-ground
line-to-line
Operating frequency:
Rated voltage (max.):
Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit
Current
Frequency–MHz
Rating .01 .02 .05 .08 .15 .5 1 2
3A
6A
10A
15A
22 32
16 23
9 15
4 9
36 - 49 46
32 41 46 41
24 30 36 42
18 22 27 41
40
33
34
34
30
26
22
22
5 10 20 30
22
15
11
12
12
9
12
12
12
6
8
5
12
2
8
2
2µA
5µA
1500 VAC
1450 VDC
50/60 Hz
250 VAC
Line-to-line in 50 ohm circuit
Frequency–MHz
Current
Rating .01 .02 .05 .08 .15 .5 1 2
3A
6A
10A
15A
3 1
4 1
7 8
12 16
30 - 61 70
14 45 51 70
17 32 52 70
15 10 51 70
65
70
70
70
65
65
70
70
5 10 20 30
48
55
65
70
40
47
55
70
32
37
40
65
32
37
35
55
Electrical Schematics
3 & 6 Amp
LINE
LOAD
10 Amp
LINE
LOAD
15 Amp
LINE
LOAD
Resistor location for reference only.
70
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
CORCOM Product Guide
High Performance RFI Power Line Filters for Medical Equipment
(Continued)
HT Series

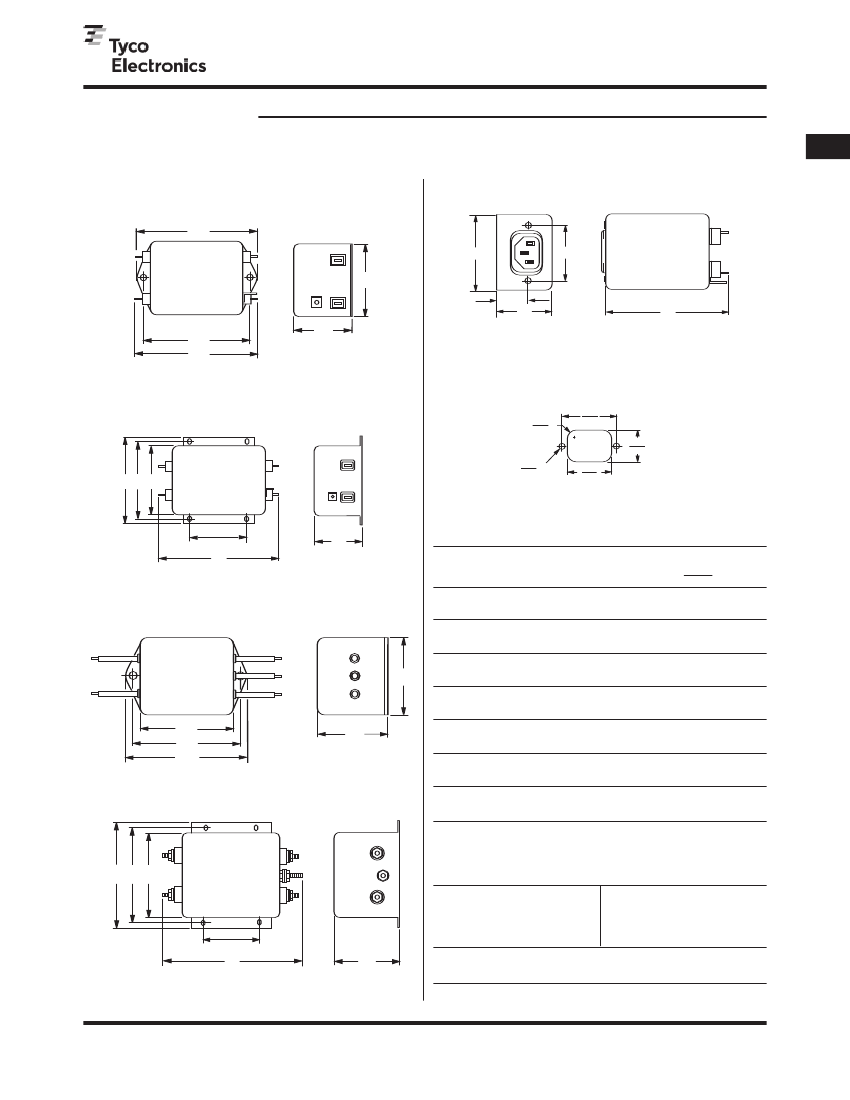

Case Styles
HT1 (3, 6 and 10 Amp)
E
B
0.235
R
5.96
1.575
40.01
0.910
23.1
RFI Power Line Filters
0.157
Dia.
1.295
HT7 & HT7M
(with metric insert)
3.98
32.89
D
B
E
C
A
Tapped insert
No. 6-32 x 1/4 (2) - T7
No. M-3 x 5 (2) - T7M
D
A
C
Typical dimensions:
Terminals: .250 [6.35] (5) Holes: .07 [1.8 ] Dia.(4) Slot: .07 x .16 [1.8
x 4.1
]
Mounting holes: .188 [4.78 ] Dia. (2)
Recommended Panel Cutout
0.235
R
5.96
1.575
40.01
0.910
23.1
0.157
Dia.
3.98
1.295
32.89
HT1 (15 Amp)
E D B
Panel Cutout (back mount)
Tolerance ±.005 [0.13]
2.00±.01
50.80±.25
Case
B
Dimensions
C
D
A
Typical dimensions:
Terminals: .250 [6.35] (5) Holes: .07 [1.8 ] Dia.(4) Slot: .07 x .16 [1.8
x 4.1
]
Mounting holes: .203 x .156 [5.16
x 3.96
] Dia. (4)
Part No.
E
C
A
(max)
B
(max)
2.15
54.6
2.15
54.6
2.25
57.2
2.27
57.7
2.27
57.7
3.12
79.2
3.12
79.2
C
(max)
1.81
A
46.0
1.81
46.0
1.78
45.2
1.8
45.7
1.8
45.7
2.18
55.4
2.18
55.4
D
± .015
± .38
E
(max)
3.38
85.9
3.38
85.9
0.63
†
16.0
4.47
113.5
4.47
113.5
3.96
100.6
3.96
100.6
HT3
Blue
Blue
Green/Yellow
Brown
Brown
B
A
D
E
Typical dimensions:
Wire leads: 4.0 [101.6 ] Min.
C
Mounting holes: .188 [4.78 ] Dia. (2)
HT6
3.56
90.4
2.55
3EHT3, 6EHT3
64.8
3EHT7, 3EHT7M,
3.52
6EHT7, 6EHT7M
89.4
4.69
10EHT1
119.1
3.69
10EHT3
93.7
5.45
15EHT1
138.4
5.95
15EHT6
151.1
3EHT1, 6EHT1
2.938
74.63
2.938
74.63
1.575
40.01
4.063
103.2
4.063
103.2
3.5
88.9
3.5
88.9
†
±.02 [±.5]
E D B
Part Numbers
6EHT1
6EHT3
6EHT7
6EHT7M
Line Cord No.
10EHT1
10EHT3
15EHT1
15EHT6
GA400
2.00±.01
50.80±.25
A
Typical dimensions:
Terminals: No. 8-32 (5)
Torque: 18±2 in.lb
C
Mounting holes: .203 x .156 [5.16
x 3.96
] Dia. (4)
7
1/2
foot, 3-conductor line cord to mate with T7 models
71
Catalog 1654001
Revised 05-07
Dimensions are in inches and
millimeters unless otherwise
specified. Values in italics
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA Cust. Svc.: 1-800-468-2023
CORCOM Prods: 1-847-680-7400
Germany:
49-89-6089-0
www.corcom.com
www.tycoelectronics.com
