91-21USRC/S530-A4 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 91-21USRC/S530-A4

91-21USRC/S530-A4: DescriptionSingle Color LED, Dark Red, Water Clear, T-3/4, 1.9mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size243KB，10 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/

Download Datasheet Parametric View All

91-21USRC/S530-A4 Overview

Single Color LED, Dark Red, Water Clear, T-3/4, 1.9mm, ROHS COMPLIANT PACKAGE-2

91-21USRC/S530-A4 Parametric

Parameter Name	Attribute value
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	DARK RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	578.0 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
peak wavelength	639 nm
shape	ROUND
size	1.9 mm
surface mount	NO
T code	T-3/4
perspective	25 deg

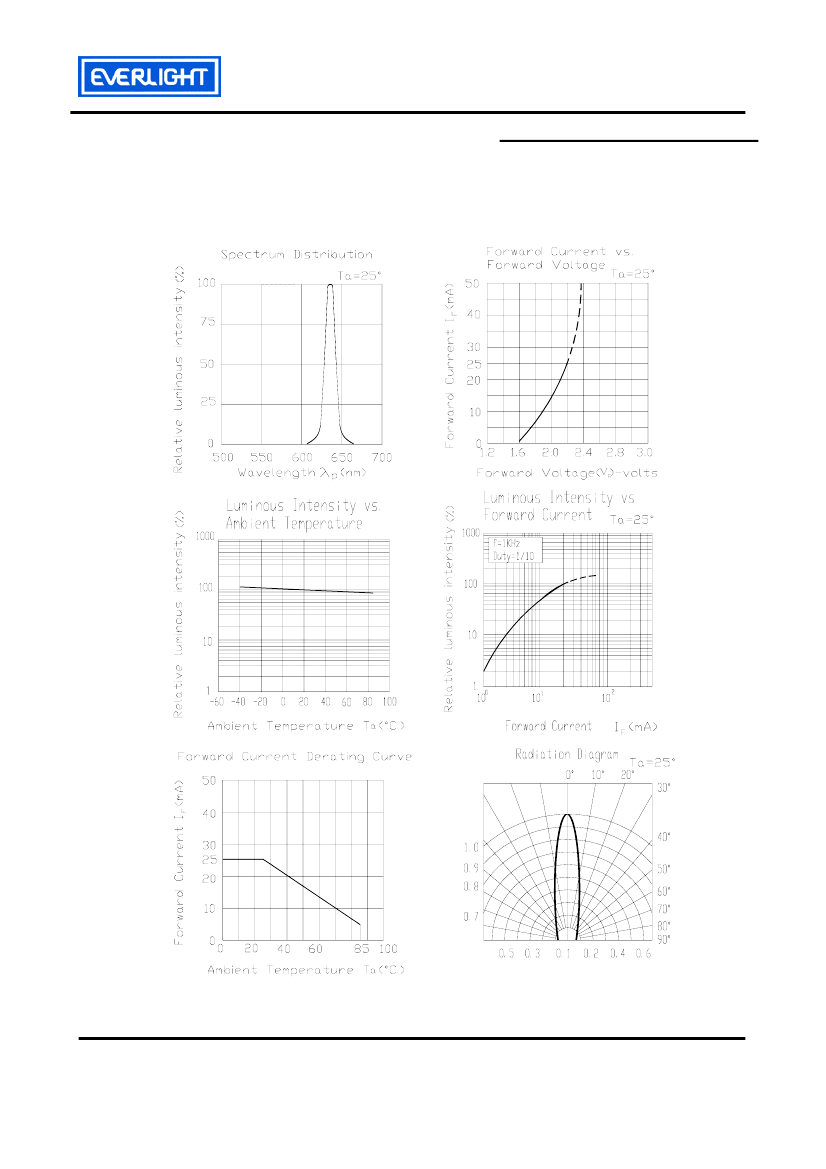

Preview

Download Datasheet

View All

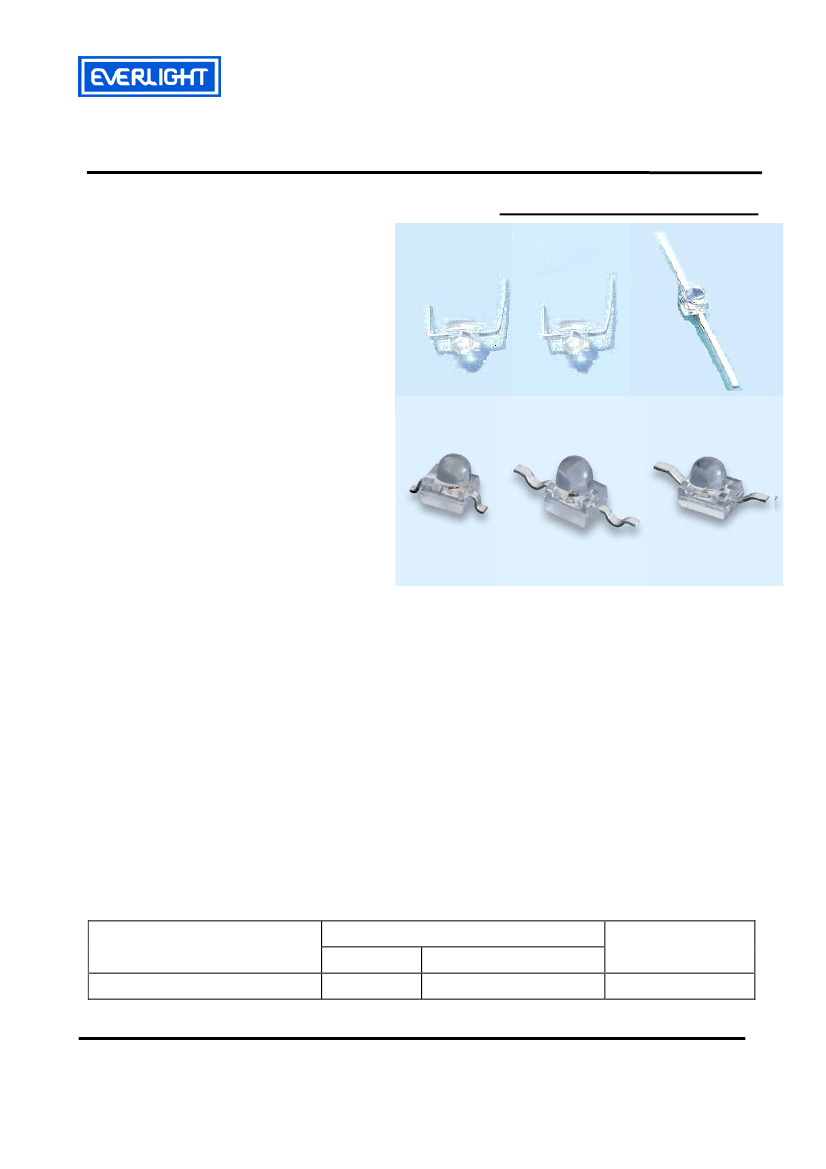

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

1.9mm Round Subminiature Lead LEDs

91-21USRC/S530-XX/XXX

Features

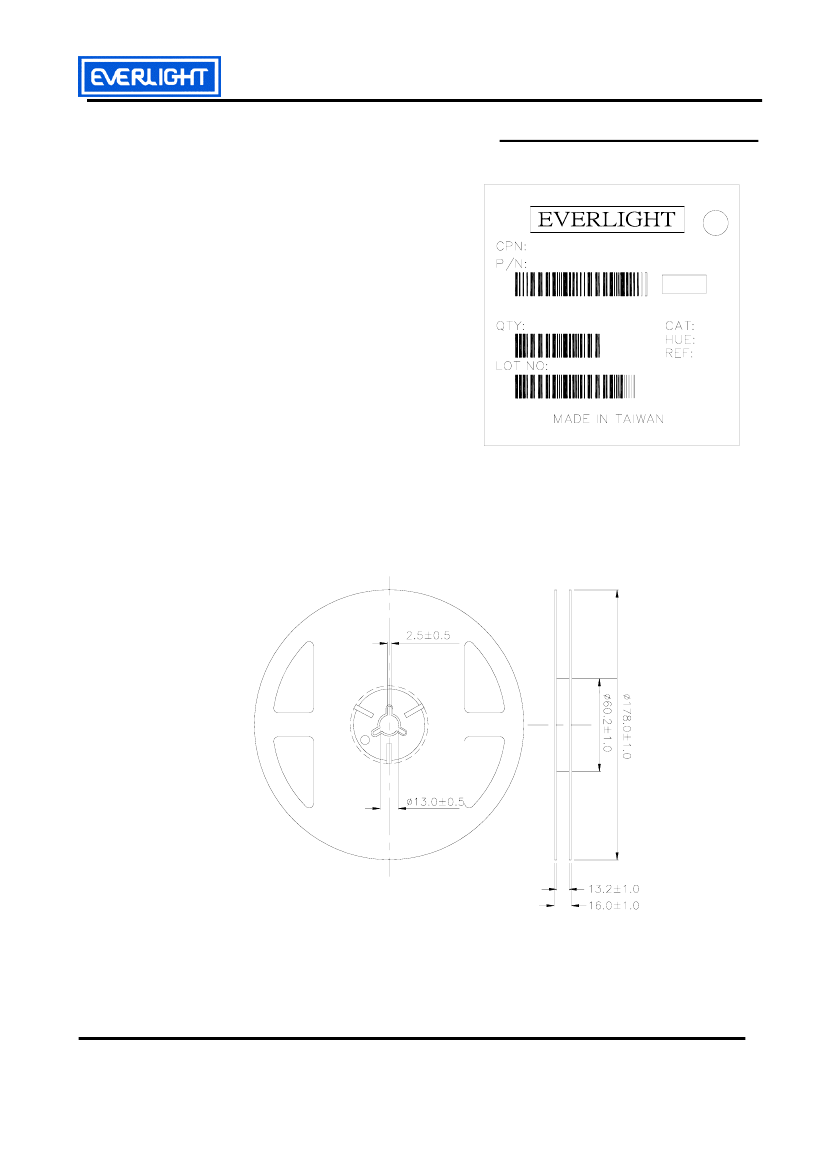

․Package

in 12mm tape on 7"

diameter reels.

․Compatible

with automatic

placement equipment.

․EIA

Std. package.

․Mono-color

type.

․Pb-free

․The

product itself will remain within

RoHS compliant version.

91-21

Descriptions

․The

91-21 SMD taping is much

smaller than leaded components .

Thus enable smaller board size.

Higher packing density. Reduced

storage space and finally smaller

equipment to be obtained.

․Besides,

light weight makes them

ideal for miniature applications.

․Furthermore

by automation assembly

machines the accuracy is anticipated.

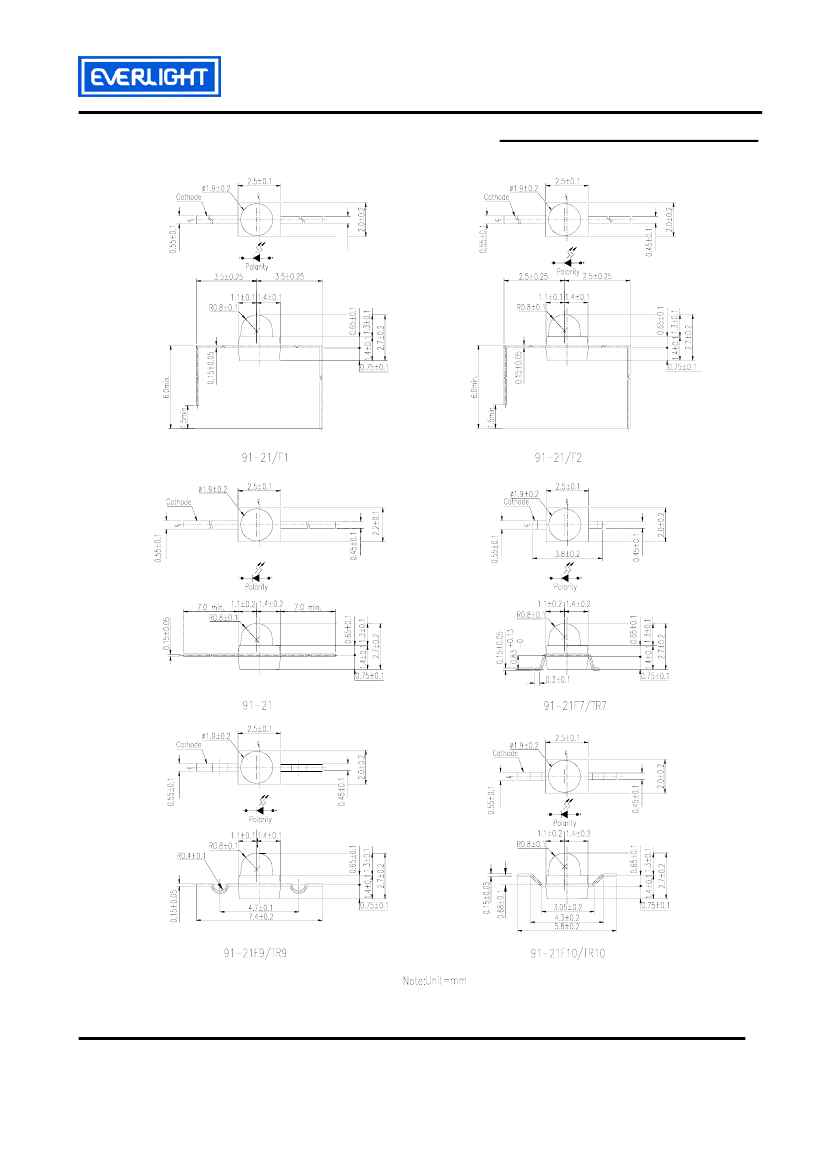

F7/TR7

F9/TR9

F10/TR10

Applications

․Small

indicator for indoor applications.

․Flat

backlight for LCD, switches and symbols.

․Indicator

and backlight in office equipment.

․Indicator

and backlight for battery driven

equipment.

․Indicator

and backlight for audio and video equipment.

․Automotive

: backlighting in dashboards and switches.

․Telecommunication：indicator

and backlighting in telephone and fax.

Device Selection Guide

Part No.

91-21USRC/S530-XX/XX

Chip

Material

AlGaInP

Emitted Color

Dark-Red

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No.: SZDLE-912-030

http://www.everlight.com

Prepared date: 19-Augr-2005

Rev.1

Page: 1 of 10

Prepared by: SKY
