Pomona
®
Model 6171
Test Companion Test Kit For
Fluke 20 & 70 Series DMM’s

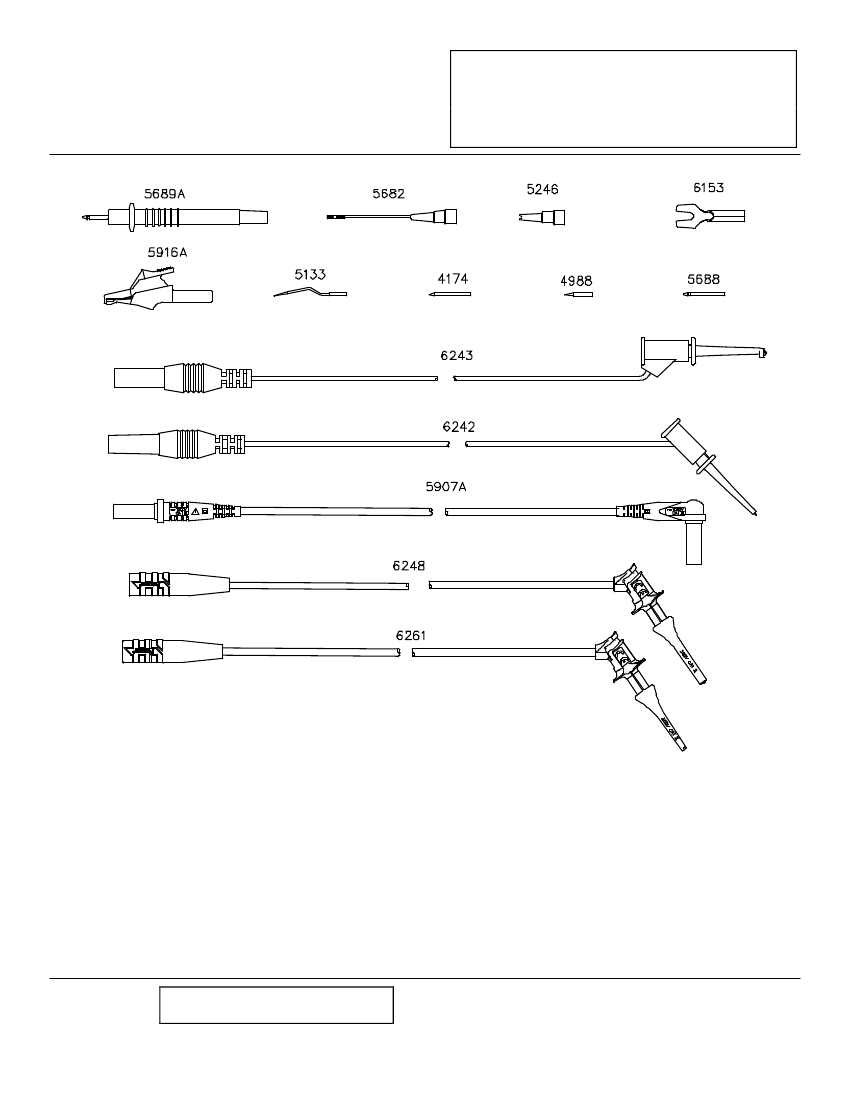

MATERIALS:
Model
4174:
Probe Needle Tip; Stainless Steel Industrial Tip, with a sharp tapered Tip.
Model
4988:
Shoulder Micro Tips; Stainless Steel Tapered Tip for piercing conformal coating.
Model
5133:
Dog Leg Tip; Flexible to maintain contact with test points, shart point for piercing surface contamination.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90756
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 3
C:\Laura Goldberg\FlukeDataSheet\d6171_3_01.doc
Pomona
®
Model 6171
Test Companion Test Kit For
Fluke 20 & 70 Series DMM’s
Model
5246:
IC Test Tip Adapter: Insulation: Nylon, Tip: Stainless steel, Color: Black, Red, Green
RATINGS:
+80ºC. (+176ºF.) Max.
Model:
5682:
Probe Extended Tip Adapter; Insulation: Nylon, Tip: Stainless steel, Color: Black, Red, Green,
RATINGS:
+80ºC. (+176ºF.) Max.
Model
5688:
Standard Brass Tips; Nickel Plated Brass Tip, grooved tip for better contact with test points.
Model
5689A:
Replaceable Tip Test Probe with Pop Jack, Body Material: Nylon, Pop Jack Receptacle: Female Pop
Jack (Compatible to 5547-48 Test Leads),
RATINGS:
600VRMS, 10 Amperes.
Model
5907A:
Test Lead Straight to Right Angle: Banana Spring: Nickel plated Beryllium Copper, Insulation–
Polypropylene, fire retardant, UL94 V-O2, Wire: 48" silicone 18" AWG, Color: One Black, One Red,
RATINGS:
1000 VRMS, 10 Amperes.
Model
5916A:
Medium Alligator Clip: Body–Steel, Nickel plated, Insulation – Polypropylene, fire retardant, UL94 V-
2, Color: One Black, One Red,
RATINGS:
300 VRMS, 5 Amperes.
Model
6153:
Spade Lug: ETP 110 Copper, 1/2 Hard. Finish: Nickel Plated.
Model
6242:
SMD Grabber to POP Jack; Grabber: Nylon 6, Contact: Gold plated Beryllium Copper, Compression
Spring: Music wire, Banana Jack: Body Nickel Plated Brass, Jack Spring: Nickel Plated Beryllium Copper, Insulation:
PVC, Wire: 20 AWG, 41 x 36 Tinned Copper, PVC Jacket, Color: One Black and one Red.
RATINGS:
Operating
Voltage: 150 VRMS, Maximum Current: 0.5 Amperes.
Model
6243:
Micro-grabber to POP Jack; Grabber: Nylon 6, Contact: Gold plated Beryllium Copper, Compression
Spring: Music wire, Banana Jack: Body Nickel Plated Brass, Jack Spring: Nickel Plated Beryllium Copper, Insulation:
PVC, Wire: 20 AWG, 41 x 36 Tinned Copper, PVC Jacket, Color: One Black and one Red.
RATINGS:
Maximum
Voltage: 150 VRMS, Maximum Current: 3.0 Amperes.
Model
6248:
Minigrabber to Sheathed Banana Jack; Grabber: Body: Nylon 6 – Fire Retardant – UL94 V-O Rated,
Color per part number, Hook: Beryllium Copper, Gold Plated, Compression Spring: Music Wire, Wire:18 AWG, 65 x
36 Tinned Copper, Insulation – Silicone, .144” (3,66 mm) O.D., Color per Part Number, Banana Jack: Body - Brass,
Nickel Plated, Insulation - Nylon 6, Fire Retardant UL94 V-0 Rated, Color per part number,
RATINGS:
IEC 1010
2-031, Category II, P2 Compliant Voltage: 300 VRMS/DC Max. Current: 5 Amperes Max.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90756
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 2 of 3
C:\Laura Goldberg\FlukeDataSheet\d6171_3_01.doc
Pomona
®
Model 6171
Test Companion Test Kit For
Fluke 20 & 70 Series DMM’s
Model
6261:
Minipincer to Sheathed Banana Jack; Grabber: Body: Nylon 6 – Fire Retardant – UL94 V-O Rated,
Color per part number, Pincer: Beryllium Copper, Gold Plated, Compression Spring: Music Wire, Wire: 8 AWG, 65 x
36 Tinned Copper, Insulation – Silicone, .144” (3,66 mm) O.D., Color per Part Number
Banana Jack: Body - Brass, Nickel Plated Insulation - Nylon 6, Fire Retardant UL94 V-0 Rated, Color per part
number.
RATINGS:
IEC 1010 2-031, Category II, P2 Compliant, Voltage: 300 VRMS/DC Max. Current: 5
Amperes Max.
ORDERING INFORMATION:
Model 6171(Includes a kit of items from above)
Replacement P/N’s: Model
4174:
Probe Needle Tip; Stainless Steel Industrial Tip, with a sharp tapered Tip, Model
4988:
Shoulder Micro Tips; Stainless Steel Tapered Tip for piercing conformal coating, Model
5133:
Dog Leg Tip;
Flexible to maintain contact with test points, shart point for piercing surface contamination, Model
5246-*:
IC Test Tip
Adapter: Insulation, Model:
5682:
Probe Extended Tip Adapter; Insulation, Model
5688:
Standard Brass Tips; Nickel
Plated Brass Tip, grooved tip for better contact with test points, Model
5689A:
Replaceable Tip Test Probe with Pop
Jack, Model
5907A:
Test Lead Straight to Right Angle, Model
5916A:
Medium Alligator Clip, Model
6153:
Spade
Lug, Model
6242:
SMD Grabber to POP Jack; Grabber, Model
6243:
Micrograbber to POP Jack; Grabber, Model
6248-12-*:
Minigrabber to Sheathed Banana Jack; Grabber, Model
6261-12-*:
Minipincer to Sheathed Banana Jack;
Grabber: Body.
* = Standard Colors: -0 Black, -2 Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90756
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 3 of 3
C:\Laura Goldberg\FlukeDataSheet\d6171_3_01.doc
