RA07M1317M_10

Description
135-175MHz 6.5W 7.2V, 2 Stage Amp. For PORTABLE RADIO
File Size99KB,9 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet View All

RA07M1317M_10 Overview

135-175MHz 6.5W 7.2V, 2 Stage Amp. For PORTABLE RADIO

Silicon RF Power Semiconductors
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
RA07M1317M
BLOCK DIAGRAM
2
3
RoHS Compliance ,
135-175MHz 6.5W 7.2V, 2 Stage Amp. For PORTABLE RADIO
DESCRIPTION
The RA07M1317M is a 6.5-watt RF MOSFET Amplifier
Module for 7.2-volt portable radios that operate in the 135- to
175-MHz range.
The battery can be connected directly to the drain of the
enhancement-mode MOSFET transistors. Without the gate
voltage (V
GG
=0V), only a small leakage current flows into the
drain and the RF input signal attenuates up to 60 dB. The output
power and drain current increase as the gate voltage increases.
With a gate voltage around 2.5V (minimum), output power and
drain current increases substantially. The nominal output power
becomes available at 3V (typical) and 3.5V (maximum). At
V
GG
=3.5V, the typical gate current is 1 mA.
This module is designed for non-linear FM modulation, but
may also be used for linear modulation by setting the drain
quiescent current with the gate voltage and controlling the output
power with the input power.
FEATURES
• Enhancement-Mode MOSFET Transistors
(I
DD
≅0
@ V
DD
=7.2V, V
GG
=0V)
• P
out
>6.5W @ V
DD
=7.2V, V
GG
=3.5V, P
in
=20mW
η
T
>45% @ P
out
=6W (V
GG
control), V
DD
=7.2V, P
in
=20mW
• Broadband Frequency Range: 135-175MHz
• Low-Power Control Current I
GG
=1mA (typ) at V
GG
=3.5V
• Module Size: 30 x 10 x 5.4 mm
• Linear operation is possible by setting the quiescent drain
current with the gate voltage and controlling the output power
with the input power
1
4
5
1
2
3
4
5
RF Input (P
in
)
Gate Voltage (V
GG
), Power Control
Drain Voltage (V
DD
), Battery
RF Output (P
out
)
RF Ground (Case)

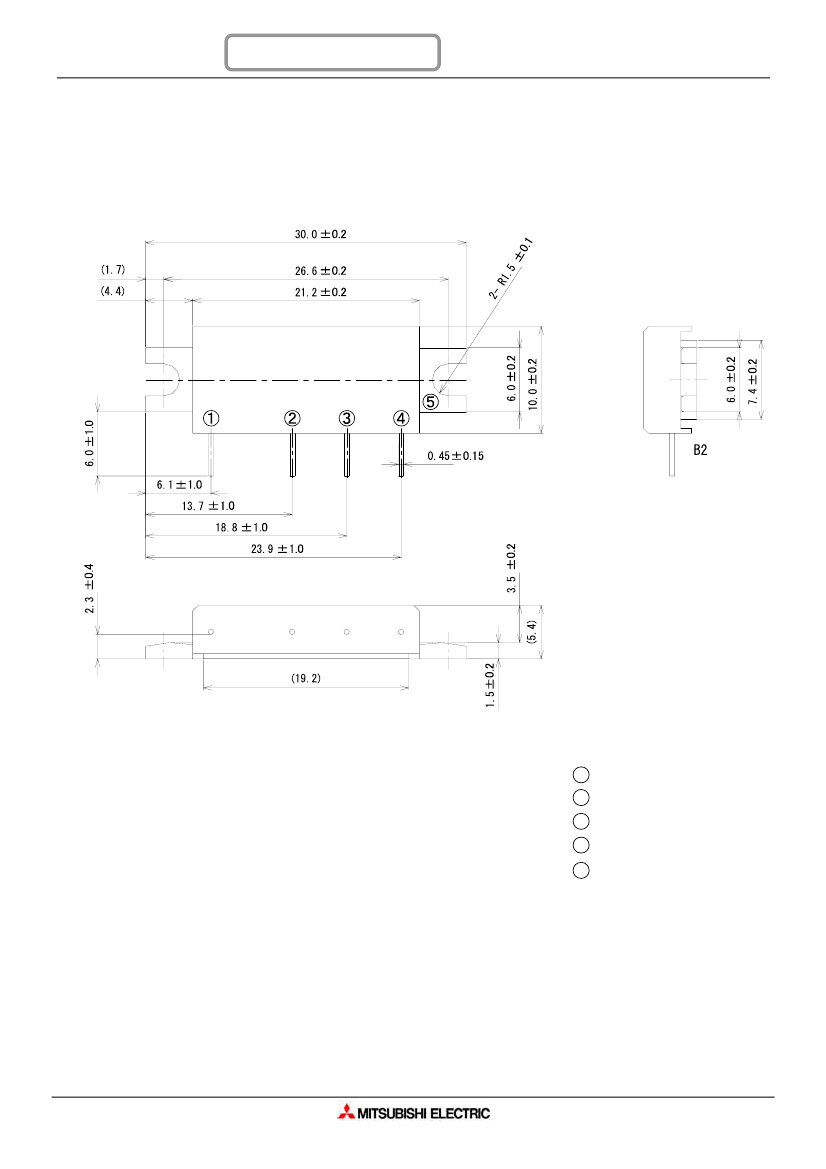

PACKAGE CODE: H46S
RoHS COMPLIANCE
• RA07M1317M-101 is a RoHS compliant products.
• RoHS compliance is indicate by the letter “G” after the Lot Marking.
• This product include the lead in the Glass of electronic parts and the
lead in electronic Ceramic parts.
How ever,it applicable to the following exceptions of RoHS Directions.
1.Lead in the Glass of a cathode-ray tube, electronic parts, and
fluorescent tubes.
2.Lead in electronic Ceramic parts.
ORDERING INFORMATION:
ORDER NUMBER
RA07M1317M-101
SUPPLY FORM
Antistatic tray,
50 modules/tray
RA07M1317M
30 Jun 2010
1/9
