SUR566EF
Epitaxial planar NPN silicon transistor
Description
•
Dual chip digital transistor
Features
•
Two SRC1207 chips in SOT-563F package
•
Simplify circuit design
•
Reduce a quantity of parts and manufacturing process

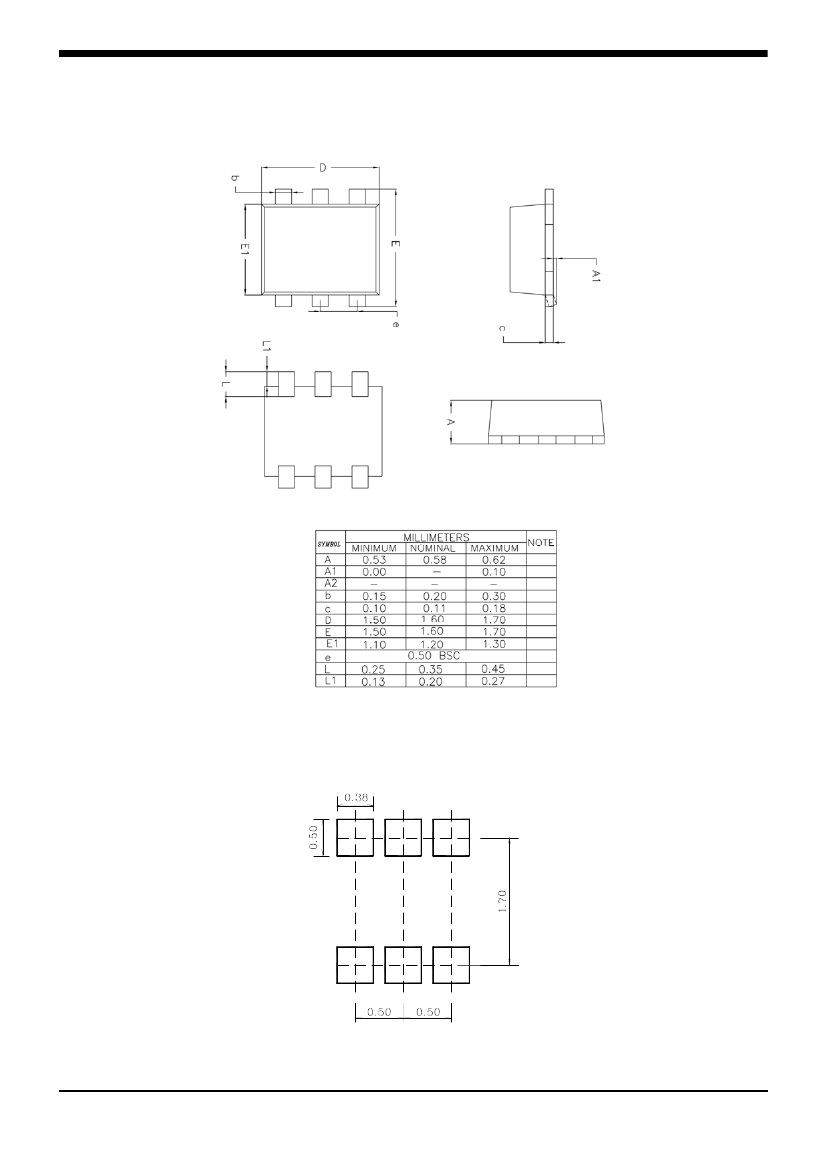

Package : SOT-563F
Ordering Information
Type NO.
SUR566EF
Marking
5X
□
Package Code
SOT-563F
□
: Year & Week Code
Equivalent circuit & PIN Connections
•
Equivalent Circuit
R
1
R1
R2
R2
R1
R
2
47KΩ
47KΩ
Tr1
Tr1
Tr2
10KΩ
10KΩ
Tr2
PIN Connections
1. COMMON 1
2. COMMON 2
3. IN 2
4. OUT 2
5. IN 1
6. OUT 1
Absolute Maximum Ratings
[Tr1, Tr2]
Characteristic
Output voltage
Input voltage
Output current
Power dissipation
Junction temperature
Storage temperature range
※:
Total rating
(Ta=25°C)
Symbol
V
O
V
I
I
O
P
D
※
T
J
T
stg
Rating
50
30,-6
100
150
150
-55 ~ 150
Unit
V
V
mA
mW
°C
°C
KSD-R5U011-001
1
SUR566EF
Electrical Characteristics
[Tr1, Tr2]
Characteristic
Output cut-off current
DC current gain
Output voltage
Input voltage (ON)
Input voltage (OFF)
Transition frequency
Input current
Input resistor (Input to base)
Input resistor (Base to common)
(Ta=25°C)
Symbol
I
O(OFF)
G
I
V
O(ON)
V
I(ON)
V
I(OFF)
f
T
*
Test Condition
V
O
=50V, V
I
=0
V
O
=5V, I
O
=10mA
I
O
=10mA, I
I
=0.5mA
V
O
=0.2V, I
O
=5mA
V
O
=5V, I
O
=0.1mA
V
O
=10V, I
O
=5mA, f=1MHz
V
I
=5V, I
O
=0
-
-
Min. Typ. Max.
-
80
-
-
0.5
-
-
7
33
-
150
0.1
-
-
200
-
10
47
500
-
0.3
1.8
-
-
0.88
13
61
Unit
nA
-
V
V
V
MHz
mA
KΩ
KΩ
I
I
R
1
R
2
* : Characteristic of transistor only
KSD-R5U011-001
2
SUR566EF
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-R5U011-001
5
