SUT061G
Dual NPN Bipolar transistor
Descriptions
•
General purpose amplifier
•
Recommended for LED Drive Application
Features
•
Thermally Enhanced Power PKG
•
Low saturation: V
CE
(sat)= 0.4V Max
•
2 NPN chips in TESOP-8 Package

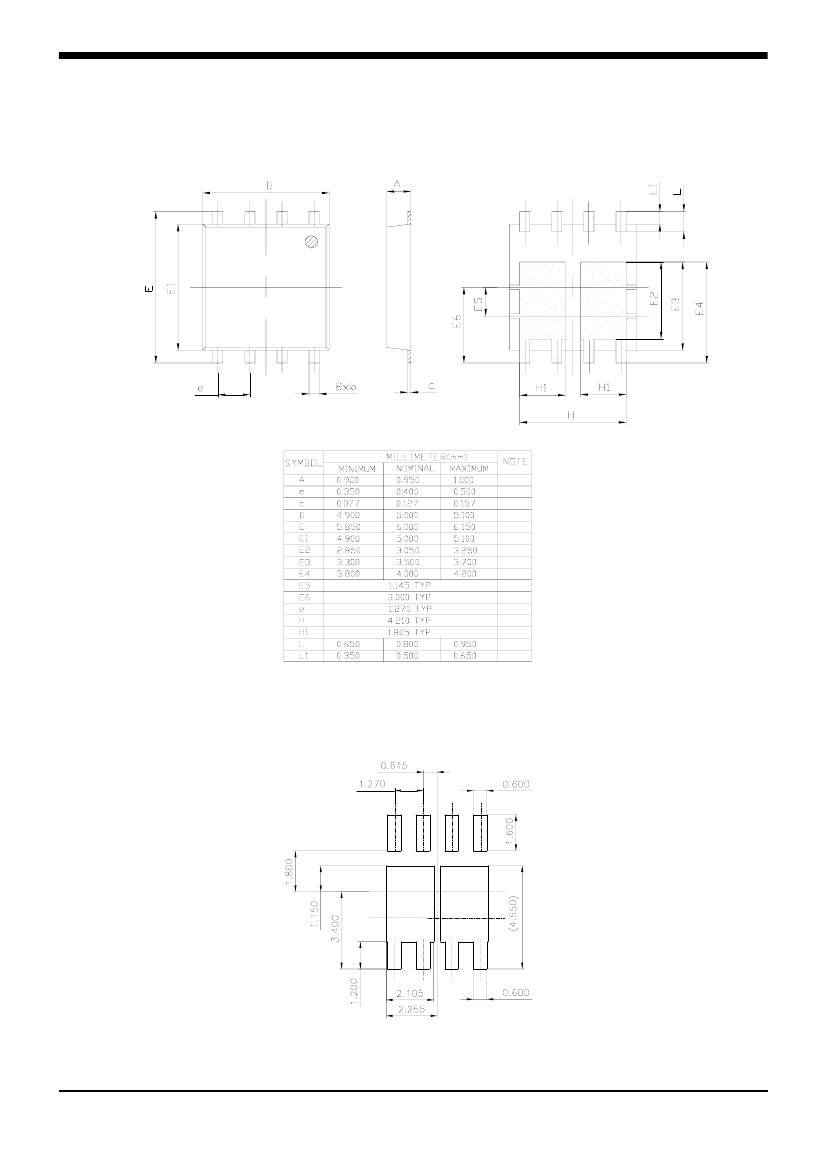

TESOP-8
Ordering Information
Type NO.
SUT061
Marking
SUT061
□
Package Code
TESOP-8
□
: Year & Week Code
Absolute maximum ratings(TR1, TR2)
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector current
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
*
P
C
(Ta=25°C) **
P
C
(Tc=25°C)
Ratings
80
60
5
1
2
0.75
0.55
7.5
150
-55~150
Unit
V
V
V
A(DC)
A(Pulse)
W/TOTAL
W/ELEMENT
W/TOTAL
°C
°C
Collector power dissipation
Junction temperature
Storage temperature
* : Single pulse, tp= 300
㎲
T
J
T
stg
** : Each terminal mounted on a recommended solder land
Electrical Characteristics(TR1, TR2)
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Base-Emitter on voltage
Collector-Emitter saturation voltage
Collector output capacitance
Transition frequency
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
1)
V
BE(ON)
V
CE(sat)
C
ob
f
T
Test Condition
I
C
=100
㎂,
I
E
=0
I
C
=1mA, I
B
=0
I
E
=10mA, I
C
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=2V, I
C
=100mA
V
CE
=2V, I
C
=1A
V
CE
=2V, I
C
=500mA
I
C
=500mA, I
B
=50mA
V
CB
=10V, I
E
=0, f=1MHz
V
CB
=10V, I
C
=50mA
Min.
80
60
5
-
-
200
80
-
-
-
-
Typ.
-
-
-
-
-
-
-
-
-
10
160
Max.
-
-
-
0.1
0.1
400
-
1.2
0.4
-
-
Unit
V
V
V
μA
μA
-
V
V
pF
MHz
Note 1) hFE Rank : 200~400 only
KSD-T7K002-000
1
SUT061G
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T7K002-000
5
