SUT562EF
Epitaxial planar NPN silicon transistor
Description
•
Complex type bipolar transistor
Feature
•
Very small package save PCB area
•
Reduce quantity of parts and mounting cost
•
Two 2SC5343 chips in SOT-563F package
Package : SOT-563F
Ordering Information
Type NO.
SUT562EF
Marking
XX
□
Package Code
SOT-563F
□
: Year & Week Code
Equivalent circuit & PIN Connections
•
Equivalent Circuit
3
2
1
Tr1
Tr2
PIN Connections
1. Emitter 1
2. Base 1
3. Collector 2
4. Emitter 2
5. Base 2
6. Collector 1
4
5
6
Absolute Maximum Ratings
[ Tr1, Tr2 ]
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
※:
Total rating
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
※
T
J
T
stg
Rating
60
50
5
150
150
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
KSD-T5U004-001
1
SUT562EF
Electrical Characteristics
[Tr1, Tr2 ]
Characteristic
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE
f
T
C
ob
Test Condition
I
C
=1mA, I
B
=0
V
CB
=60V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=6V, I
C
=2mA
I
C
=100mA, I
B
=10mA
V
CE
=6V, I
C
=2mA
V
CE
=10V, I
C
=10mA
V
CB
=10V, I
E
=0, f=1MHz
Min. Typ. Max.
50
-
-
120
-
-
-
-
-
-
-
-
-
0.65
200
2
-
0.1
0.1
400
0.25
-
-
-
Unit
V
μA
μA
-
V
V
MHz
pF
KSD-T5U004-001
2
SUT562EF

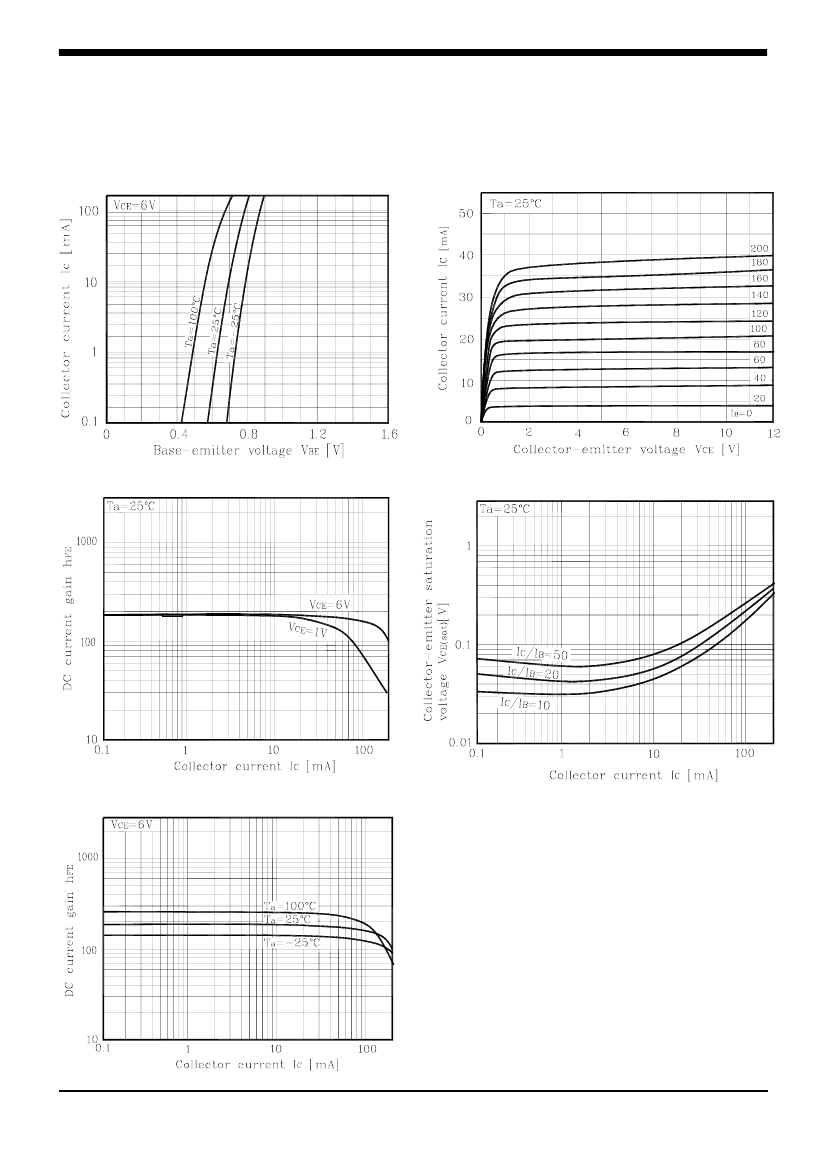

Electrical Characteristic Curves
[ Tr1, Tr2 ]
Fig. 1 I
C
-V
BE
Fig. 2 I
C
-V
CE
㎂
Fig. 3 h
FE
-I
C
Fig. 4 V
CE(sat)
-I
C
Fig. 6 h
FE
- I
C
KSD-T5U004-001
3
SUT562EF

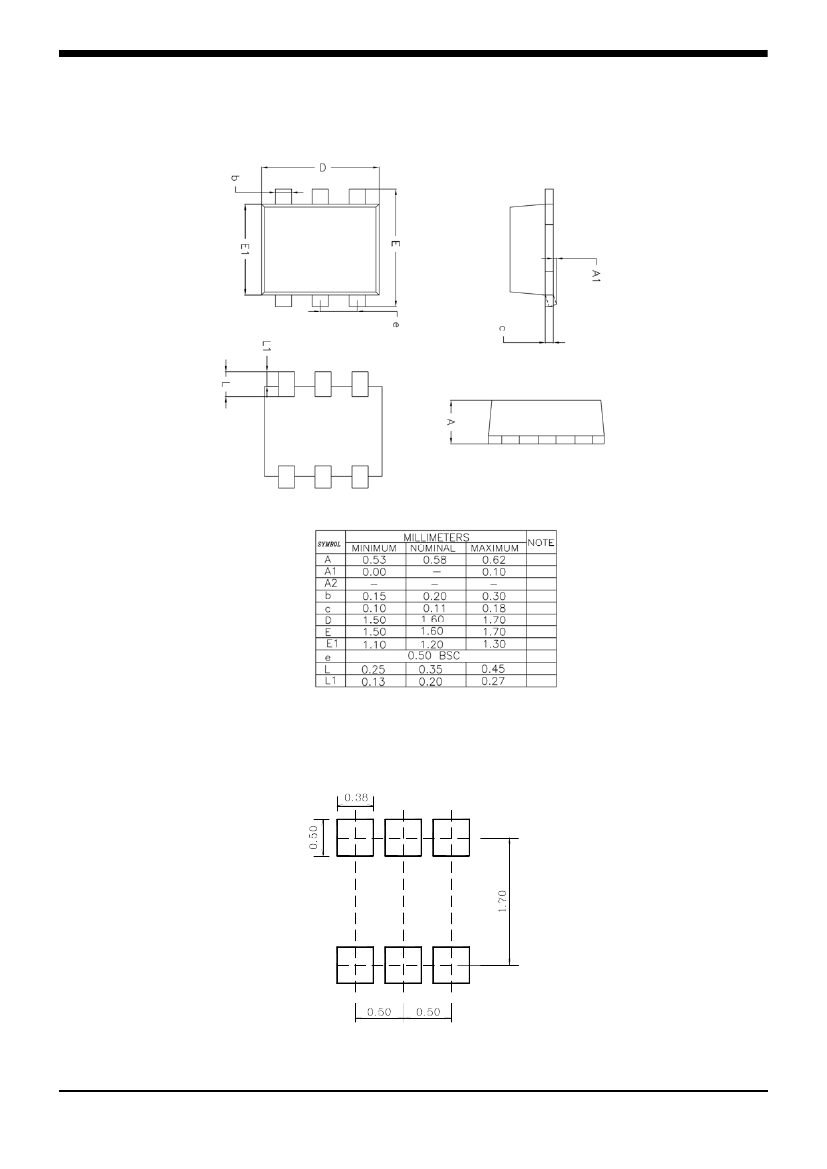

Outline Dimension
※
Recommend PCB solder land
[Unit: mm]
KSD-T5U004-001
4
SUT562EF
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
