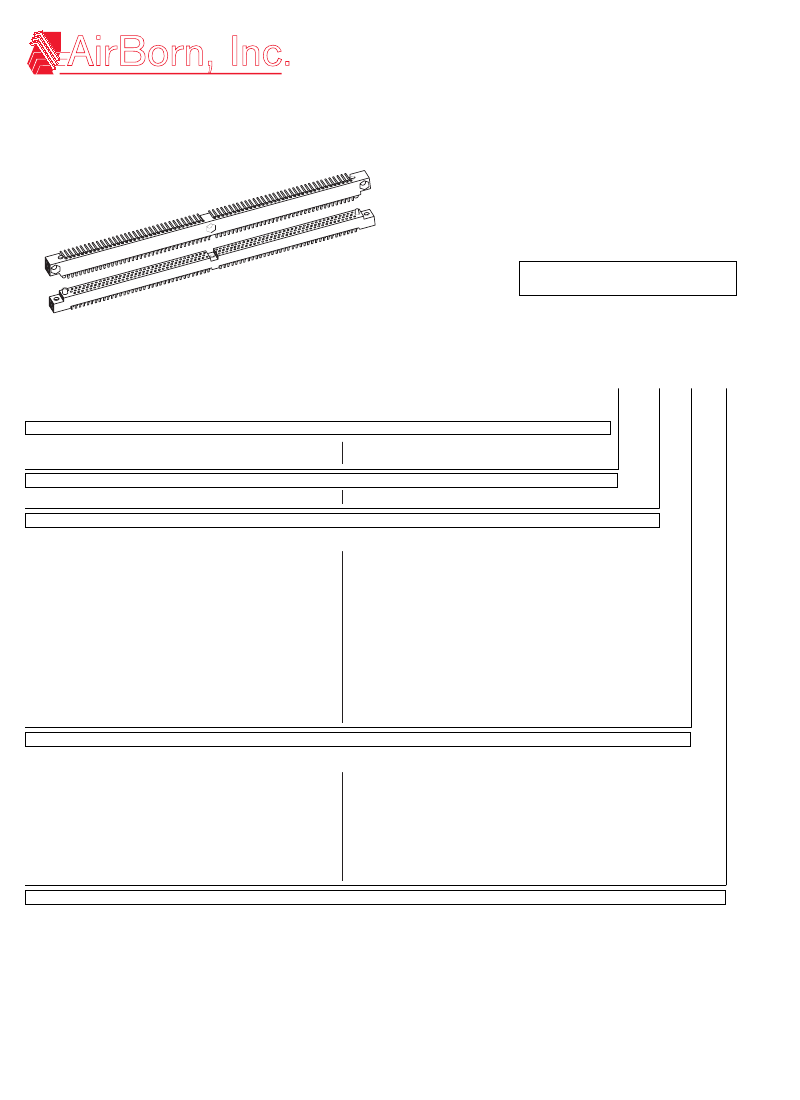

ROW
Connectors
WG208PR7SY
3
PC Card to
Board or to
PC Card
WG208SACSY
WG-WG (160&208)

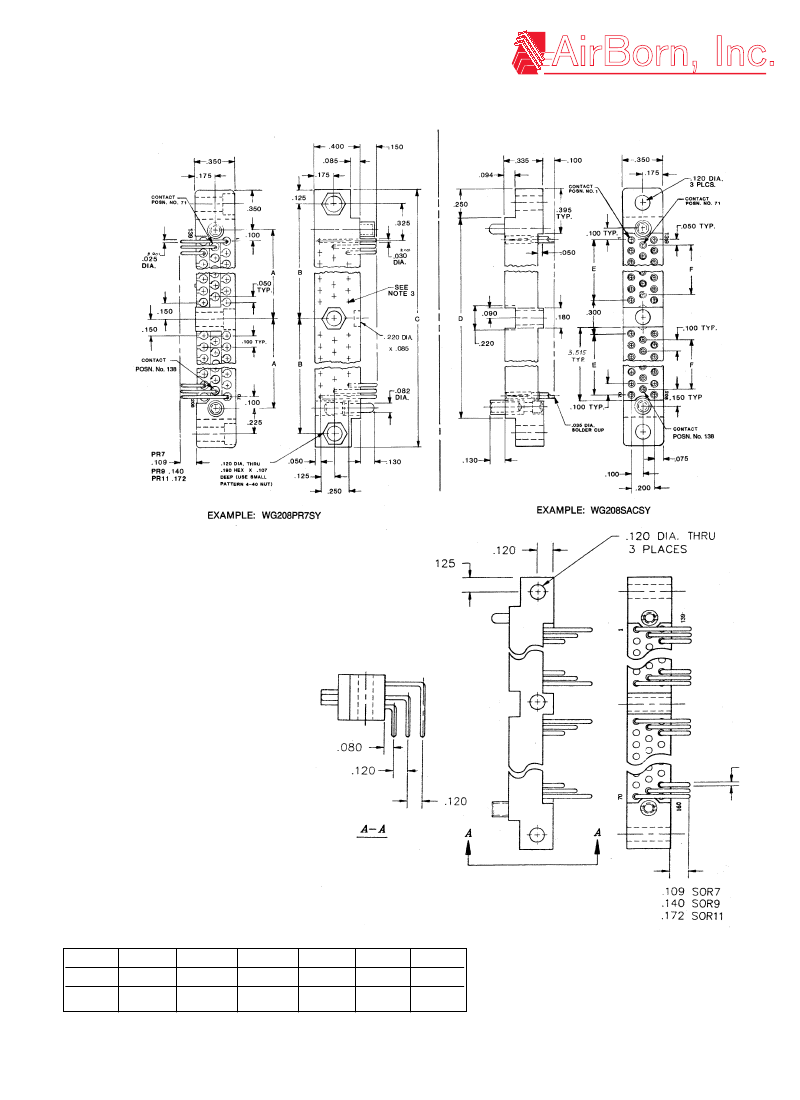

Examples:
PLUG:
RECEPTACLE:
WG
WG
160
160
PR7
SAC
SY
SY
PLUG
WG
= 3-row, right-angle, plug, mounting ears
RECEPTACLE
SERIES
WG
WG
= 3-row, straight, receptacle, mounting ears
= 3-row, right-angle, receptacle, mounting ears
NUMBER OF CONTACTS
160, 208
160, 208
TYPE OF CONTACTS
• The contact type determines image of connector. Pin right-angle contacts are always plug image, all other contacts, straight pin or
sockets are receptacle image. See page W-38 to switch image.
PR7
PR9
PR11
= Pin, right-angle, dip solder, .109
= Pin, right-angle, dip solder, .140
= Pin, right-angle, dip solder, .172
SAC
SAD7
SAD9
SAD11
SAF3
SAF6
SAF9
SAP
SAW24
SAW40
SOR7
SOR9
SOR11
= Socket, straight, solder cup
= Socket, straight, dip solder, .109
= Socket, straight, dip solder, .140
= Socket, straight, dip solder, .172
= Socket, straight, flex-circuit, .050
= Socket, straight, flex-circuit, .093
= Socket, straight, flex-circuit, .140
= Socket, straight, pin termination, .150, connector saver
= Socket, straight, wire wrap, .375
= Socket, straight, wire wrap, .625
= Socket, right-angle, dip solder, .109, see page W-43.
= Socket, right-angle, dip solder, .140, see page W-43.
= Socket, right-angle, dip solder, .172, see page W-43.
TYPE OF HARDWARE
• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WG160PR9QJ. See “Gaskets” and
“Hoods” under next tab for instructions.
SY
= Guide Set
SY
= Guide Set
SY-#
= Guide Set, polarized
SY-#
= Guide Set, polarized
SYL
= Guide Set, long
SYL
= Guide Set, long
JT
= Turning jackset, .500
J
= Fixed jackset
JTA
= Turning jackset, .200
JL
= Fixed jackset, long
JTB
= Hex turning jackset, .200
JTC
= Turning jackset, .500
JTL
= Long turning jackset, .700
OPTIONS
• OPTION CODES: Add to the end of the part number. Example: WG160PR9SY548. Call factory for additional codes.
-B82: Termination face sealed against conformal coating.
-342: Remove .250 mounting ears.
-D01: Pre-tin contact terminations. (Solder cup, wire wrap and flex circuit contacts are excluded.)
-548: Includes nuts bonded into hex recess in mounting holes.
-G69: Solder cups are fixed in an outward orientation, otherwise contacts can rotate.
