WGKA160S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> WGKA160S

WGKA160S: DescriptionBoard Connector, 160 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size103KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WGKA160S Overview

Board Connector, 160 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle

WGKA160S Parametric

Parameter Name	Attribute value
Maker	AirBorn
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Filter function	NO
Manufacturer's serial number	WGKA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	3
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	160

Preview

Download Datasheet

View All

The Interconnect Solution Source

WG80PR9SY

•

ROW

Connectors

PC Card to

Chassis

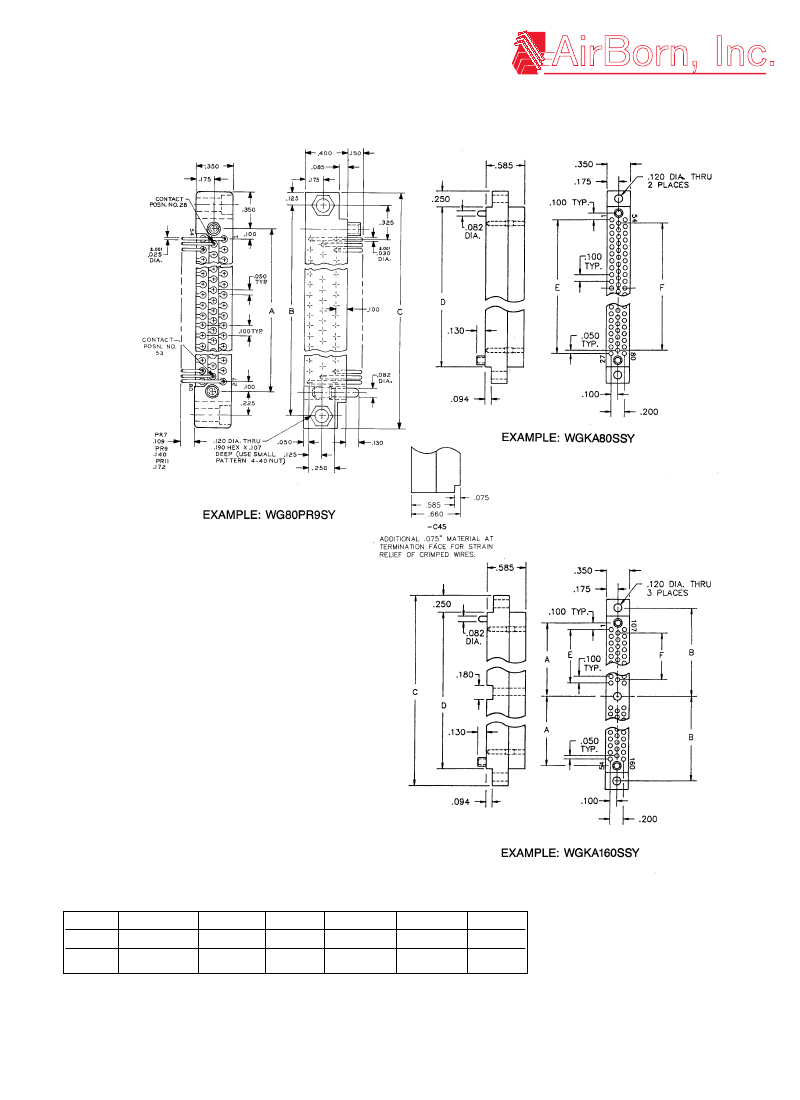

WG-WGKA

WGKA80SSY

Examples:

PLUG:

RECEPTACLE:

WGKA

PLUG

RECEPTACLE

SERIES

• WGKA or WGDXA mates with the WGV connector. “A” means contacts are included.

= 3-row, right-angle, plug, mounting ears

WGKA = 3-row, straight, receptacle,

crimp removable, w/o mounting ears

NUMBER OF CONTACTS

80, 160

TYPE OF CONTACTS

• The use of gaskets is not recommended with crimp socket contacts.

• The contact type determines image of connector. Pin right-angle contacts are always plug image, all other contacts, straight pin or

sockets are receptacle image.

• When using crimp contacts with 20 gage barrel, barrel must be cut off prior to removing contact from body.

PR7

PR9

PR11

PRW40

= Pin, right-angle, dip solder, .109

= Pin, right-angle, dip solder, .140

= Pin, right-angle, dip solder, .172

= Pin, right-angle, wire wrap, .625

= Socket, straight, crimp removable, 22 gage barrel

= Pin, straight, crimp removable, 22 gage barrel

TYPE OF HARDWARE

• Plug facial seal gaskets and hoods; order separately or add “Q” in part number. Example: WTA10PD9QJ. See “Gaskets” and

“Hoods” under next tab for instructions.

= Guide Set

SY-#

= Guide Set, polarized

SY-#

= Guide Set, polarized

OPTIONS

• OPTION CODES: Add to the end of the part number. Example: WGKA80SSY-C45. Call factory for additional codes.

-657: Socket, crimp removable, 20 gage barrel. When using crimp contacts with 20 gage barrel, barrel must be cut off prior to removal.

-C45: Additional .075" material at termination face for strain relief of crimped wires (22 gage contacts only).

“W” Series Connectors

W-44

9916

Airborn, Inc. • 4321 Airborn Drive • Addison, TX 75001-0519

Ph: (972)931-3200 Fax: (972)931-9305 E-mail: info@airborn.com

WGKA160S Related Products

	WGKA160S	WGKA160P	WGKA160SA	WGKA80P	WGKA80S	WGKA80SA
Description	Board Connector, 160 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle	Board Connector, 160 Contact(s), 3 Row(s), Male, Crimp Terminal, Receptacle	Board Connector, 160 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle	Board Connector, 80 Contact(s), 3 Row(s), Male, Crimp Terminal, Receptacle	Board Connector, 80 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle	Board Connector, 80 Contact(s), 3 Row(s), Female, Crimp Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	MALE	FEMALE	MALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	COPPER ALLOY	BERYLLIUM COPPER	COPPER ALLOY	BERYLLIUM COPPER	BERYLLIUM COPPER
Filter function	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	WGKA	WGKA	WGKA	WGKA	WGKA	WGKA
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	3	3	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	160	160	160	80	80	80
Maker	AirBorn	-	AirBorn	AirBorn	AirBorn	AirBorn
