SI5311-H / SI5311-H(B)
IRED
Features
•
•
•
•
Colorless transparency lens type
φ5mm(T-13/4)
all plastic mold type
Low power consumption
High radiant intensity
Applications
•
Light source for remote control devices
(This device should be only used at non- repetitive pulse mode)

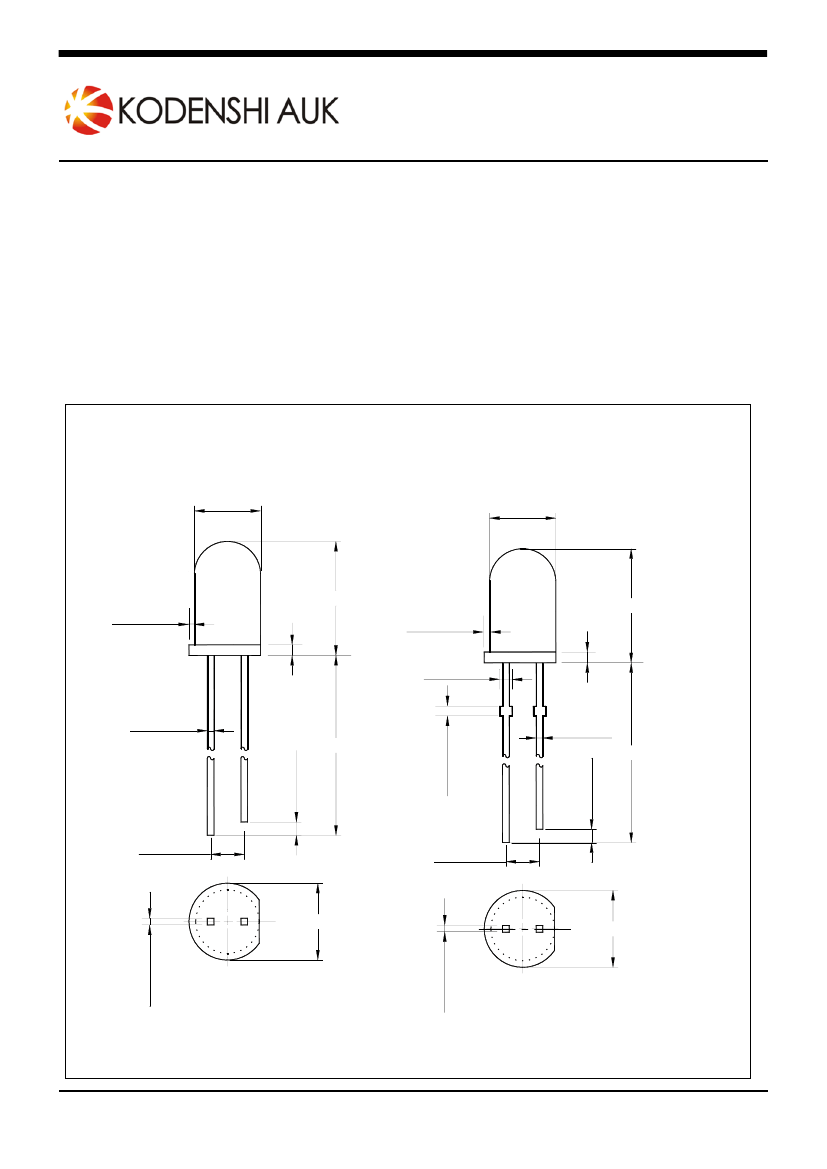

Outline Dimensions
STRAIGHT TYPE
4.80~5.20
unit :
mm
STOPPER
TYPE : (B)
4.80~5.20
0.05 Typ.
8.40~8.80
1.00 Max.
0.05 Typ.
8.40~8.80
1.00 Max
1.20 Min.
0.50 Max.
1.50 Min.
26.00 Min.
1.27 Typ.
0.06 Max
1.50 Min.
26.00 Min.
2.54 Typ.
2.54 Typ.
0.55 Max.
1
2
5.50~6.00
0.55 Max.
1
2
5.60~6.00
PIN Connections
1. Anode
2. Cathode
KSD-O2O029-002
1
SI5311-H / SI5311-H(B)
Absolute Maximum Ratings
Characteristic
Power dissipation
*
1
Forward current
*
2
Peak forward current
Reverse voltage
Operating temperature range
Storage temperature range
(Ta=25℃)
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
Rating
145
100
1
4
-25
∼
85
-30
∼
100
Unit
mW
mA
A
V
℃
℃
*
3
Soldering temperature
T
sol
260
℃
for 10 seconds
*1. Avoid operating under continuous bias
*2.Duty ratio = 1/100, Pulse width = 0.1ms
*3.Keep the distance more than 2.0mm from PCB to the bottom of IRED package
Electrical / Optical Characteristics
Characteristic
Forward voltage
Radiant intensity
Peak wavelength
Spectrum bandwidth
Reverse current
(Ta=25℃)
Symbol
V
F
I
E
Test Condition
I
F
= 50mA
I
F
= 50mA
I
F
= 50mA
I
F
= 50mA
V
R
=4V
I
F
= 50mA
Min.
-
25
-
-
-
-
Typ.
1.3
50
950
50
-
±11
Max.
1.45
-
-
-
10
-
Unit
V
mW/Sr
nm
nm
uA
deg
λ
P
Δ
λ
I
R
θ
1
/
2
*
4
Half angle
*4.
θ
1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity
KSD-O2O029-002
2

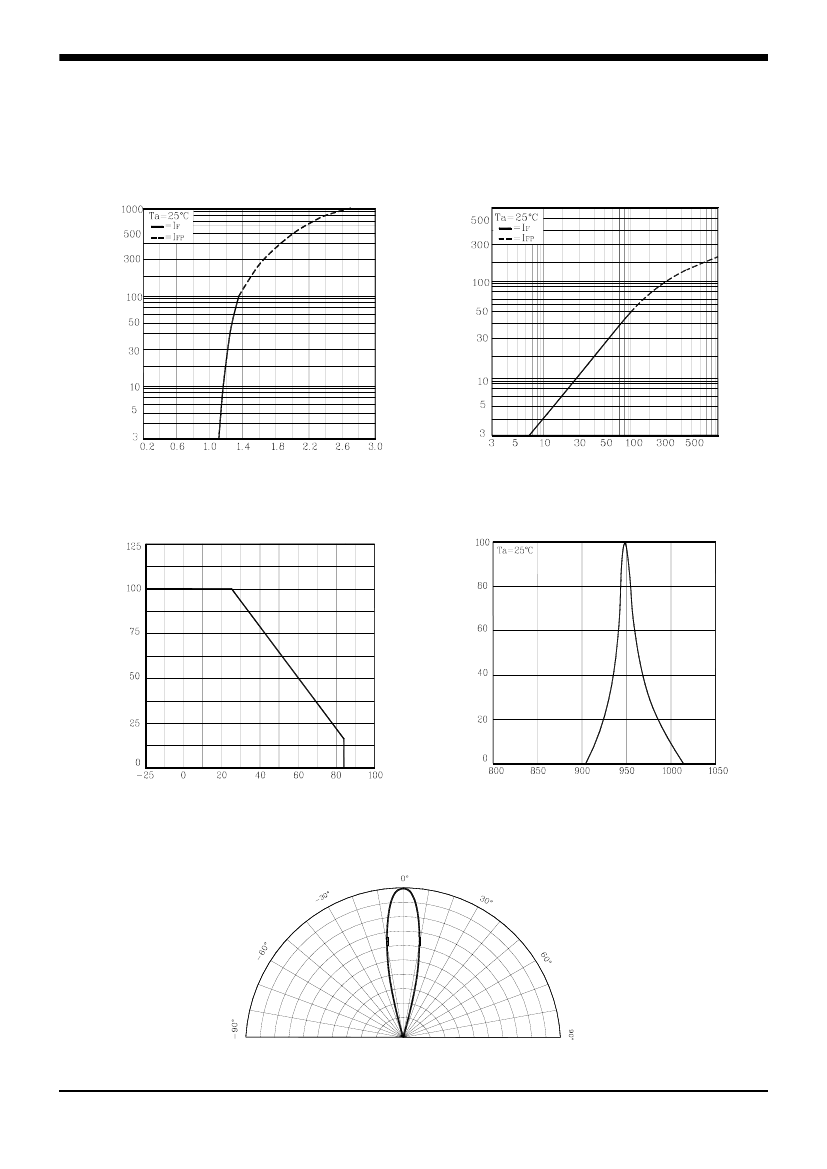

SI5311-H / SI5311-H(B)
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-O2O029-002
4
