790-041P
Right Angle PCB Terminated
Free-Standing Receptacle, Pin Contacts
How To Order
Series 79
90° PCB
Connectors

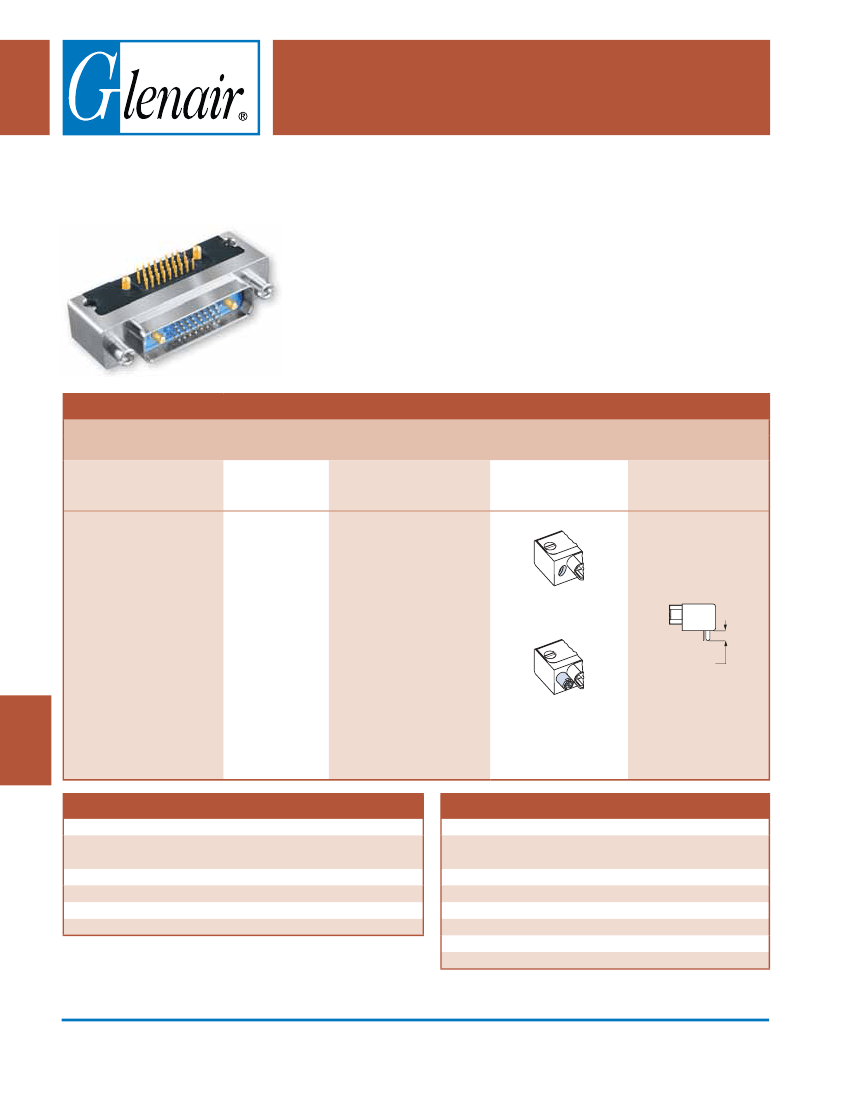

790-041P Right Angle Free-Standing Receptacles
PIN CONTACTS WITH RIGHT ANGLE PCB TERMINATION
Lightweight, rugged right angle headers feature gold-plated contacts for thru-
hole printed circuit board termination. 790-041P connectors are free-standing
(not for panel mounting) and mate to 790-025S cable plugs. Contacts are
permanently installed and are sealed with epoxy. Shells are aluminum alloy.
Threaded board mounting holes and integral standoffs simplify installation.
EMI shroud improves EMI performance. Fluorosilicone face seal provides
watertight interface. Available in 29 different contact arrangements, these
connectors feature size #23 signal contacts along with #16 and #12 power
contacts for up to 23 amps current rating.
HOW TO ORDER
Sample Part Number
790-041P
Part Number
Header Receptacle
with 90° PC Tail Pin
Contacts for Termination
to Backplanes or Flexible
Circuits
J-25P2
Shell Size -
Insert
Arrangements
See Table 1 for
Available Insert
Arrangements
M
Shell Finish
Electroless Nickel
general purpose applications
P
Hardware Option
A
PC Tail Length
.125 Inch (3.2 mm.)
.250 inch (6.4 mm.)
790-041P
M
A
B
Nickel-PTFE
1000 Hour Grey™
maximum corrosion protection
and durability
(non-reflective grey)
MT
No Hardware
N
Zinc-Nickel with Black
Chromate
ZNU
PC TAIL
LENGTH
G
SPECIFICATIONS
Current Rating
Dielectric Withstanding
Voltage
Insulation Resistance
Operating Temperature
Shock
Vibration
tactical applications
(non-reflective black)
Female Jackpost
P
Additional shell
fi
nishes are
listed on page C-9.
MATERIALS AND FINISHES
Shell
Contacts
Insulator
EMI Shroud
Interfacial Seal
Jackposts
Tray
Encapsulant
Aluminum alloy
Copper alloy, 50 microinches gold
plated
Liquid crystal polymer (LCP)
Aluminum alloy
Flourosilicone rubber
300 series stainless steel
Thermoplastic
Epoxy
#23 5 AMPS, #16 13 A., #12 23 A.
#23 500 VAC RMS, #12 and #16
1800 VAC RMS
5000 megohms minimum
-65° C. to +150° C.
300 g.
37 g.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-6
How To Order

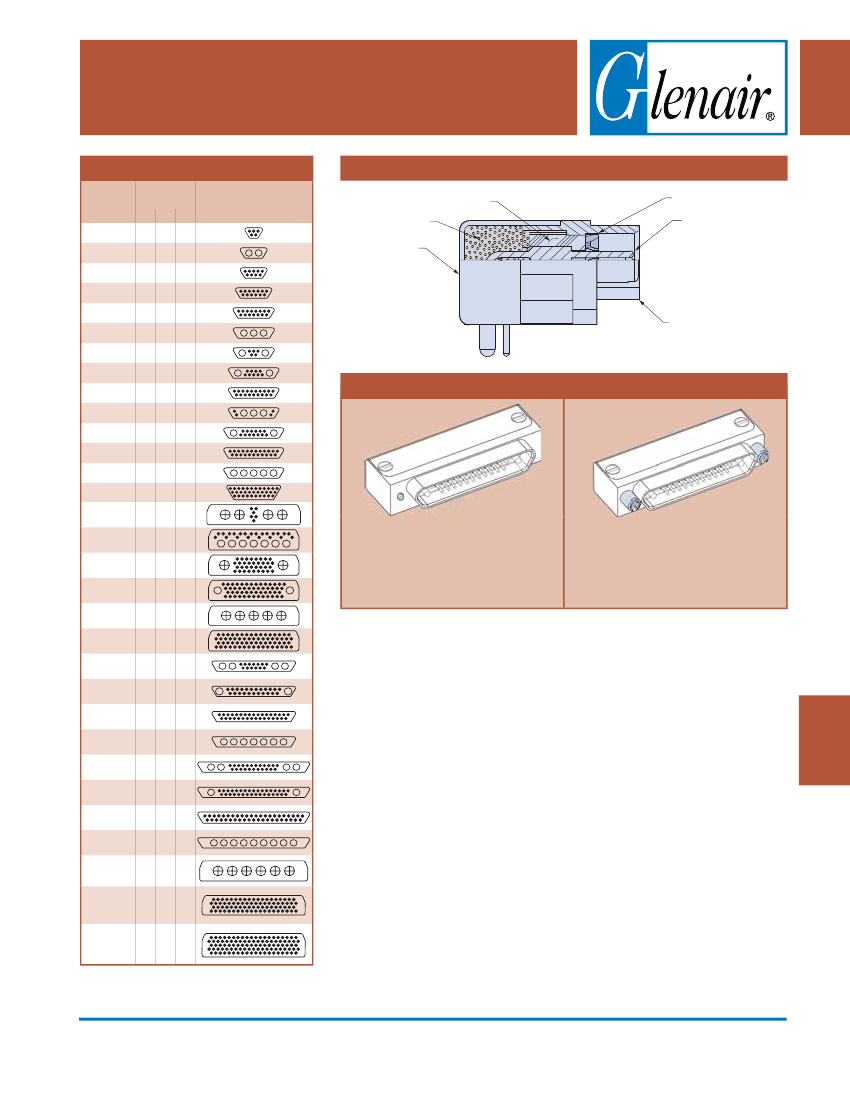

Table I Contact Arrangements
Contact
Quantity
Layout
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-23
F-5P5
G-33
H-10P4
33
6
4
5
9
19
4
23
5
3
9
13
15
3
2
2
SHELL
#23 #16 #12
5
2
CROSS-SECTIONAL VIEW OF 790-041P
INSULATOR
EPOXY
EMI SHROUD
INTERFACIAL SEAL
PIN CONTACT
Face View
TABLE 2 HARDWARE OPTION
F-15P2
13 2
H-29P7
22 7
H-36P2
34
H-54P2
52 2
H-5P5
H-66
66
5
2
N
No Mating Hardware
Connector is supplied with threaded holes.
Shell sizes H and L have #6-32 threads, other
sizes have #4-40 threads. Thread depth is
.150" (3.8).
P
Jackposts
Connector is supplied with non-removable
stainless steel jackposts. Shell sizes H and
L have #4-40 UNC thread, other sizes have
#2-56 thread.
J-17P4
13 4
J-25P2
23 2
J-33
J-7P7
33
7
K-27P4
23 4
K-35P2
33 2
K-43
K-9P9
L-6P6
L-78
M-102
78
102
43
9
6
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-7
Series 79
90° PCB
Connectors
790-041P
Right Angle PCB Terminated
Free-Standing Receptacle, Pin Contacts
