UNISONIC TECHNOLOGIES CO., LTD
UM603/A
DUAL OPERATIONAL
AMPLIFIER AND CURRENT
CONTROLLER
DESCRIPTION
The UTC
UM603/A
is a monolithic IC that includes one
independent op-amp and another op-amp for witch the non
inverting input is wired to a 2.5V fixed voltage reference. This
device is offering space and cost saving in many applications like
power supply management or data acquisition systems
LINEAR INTEGRATED CIRCUIT
FEATURES
OPERATIONAL AMPLIFIER
*Low input offset voltage: 0.5mV typ. for UTC
UM603A
*Low supply current: 350uA/op.(@ V
CC
= 5 V)
*Medium bandwidth(unity gain): 0.9MHz
*Large output voltage swing: 0 V ~ (V
CC
-1.5 V)
*Input common mode voltage range includes ground
*Wide power supply range: 3V ~ 32V ±1.5 ~ ±16V
VOLTAGE REFERENCE
*Fixed output voltage reference 2.5V
*±0.4% and ±1% voltage precision
*Sink current capability : 1 ~ 100mA
*Typical output impedance : 0.2Ω
Lead-free:
UM603L/UM603AL
Halogen-free: UM603G/UM603AG
ORDERING INFORMATION
Normal
UM603-P08-R
UM603-S08-R
UM603A-P08-R
UM603A-S08-R
Ordering Number
Lead Free
UM603L-P08-R
UM603L-S08-R
UM603AL-P08-R
UM603AL-S08-R
Halogen Free
UM603G-P08-R
UM603G-S08-R
UM603AG-P08-R
UM603AG-S08-R
Package
TSSOP-8
SOP-8
TSSOP-8
SOP-8
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
UM603L-P08-R
(1)Packing Type
(2)Package Type
(3)Lead Plating
(1) R: Tape Reel
(2) P08: TSSOP-8, S08: SOP-8
(3) G: Halogen Free, L: Lead Free, Blank: Pb/Sn
www.unisonic.com.tw
Copyright © 2009 Unisonic Technologies Co., Ltd
1 of 6
QW-R105-031.D
UM603/A
PIN CONFIGURATION
LINEAR INTEGRATED CIRCUIT
PIN DESCRIPTION
PIN NO
1
2
3
4
5
6
7
8
PIN NAME
Output 1
Inverting Input1
Non-Inverting Input1
V
CC
-
Non-Inverting Input2
Inverting Input2
Output 2
V
CC
+
I/O
O
I
O
I
I
O
PIN DESCRIPTION
OP1 output
OP1 inverting input
A 2.5V fixed voltage reference output, wired to OP1 non-inverting input
OP2 non-inverting input
OP2 inverting input
OP2 output
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 6
QW-R105-031.D
UM603/A
ABSOLUTE MAXIMUM RATINGS
PARAMETER
LINEAR INTEGRATED CIRCUIT
SYMBOL
RATING
UNIT
Supply Voltage
V
CC
36
V
Differential Input Voltage
V
I(DIFF)
36
V
Input Voltage
V
IN
-0.3 ~ +36
V
Junction Temperature
T
J
+125
°C
Operating Temperature
T
OPR
-55 ~ +125
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
Thermal Resistance Junction to Ambient
SOP-8
TSSOP-8
SYMBOL
θ
JA
RATING
175
120
UNIT
°C/W
ELECTRICAL CHARACTERISTICS
PARAMETER
Total Supply Current, excluding
Current in the Voltage Reference
SYMBOL
I
CC
TEST CONDITIONS
V
CC+
=5V, no load, T
MIN
≤T
a
≤T
MAX
V
CC+
=30V, no load, T
MIN
≤T
a
≤T
MAX
MIN
0.7
TYP.
MAX
1.2
2
UNIT
mA
V
CC
+=+5V, V
CC
=Ground, T
a
=25°C (unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
OPERATOR1
(op-amp with non-inverting input connected to the internal V
REF
)
V
I(CM)
=0V
T
a
=25°C
UM603A
T
MIN
≤Ta≤T
MAX
Input Offset Voltage
V
I(OFF)
V
I(CM)
=0V
UM603
T
a
=25°C
T
MIN
≤Ta≤T
MAX
Input Offset Voltage Drift
DV
I(OFF)
Input Bias Current
I
I(BIAS)
negative input
V
I(CM)
=0V
Large Signal Voltage Gain
Avd
V
CC
=15V, R
L
=2k
V
i(CM)
=0V
Supply Voltage Rejection Ratio
SVR
V
CC
=5V ~30V
V
OUT
=2V
Output Current Source
I
SOURCE
V
CC
=+15V, Vid=+1V
V
CC
=+15V
Short Circuit to Ground
I
SC
Vid=-1V,
Output Current Sink
I
SINK
V
CC
=+15V, V
OUT
=2V
V
CC
+
=30V
High Level Output Voltage
V
OH
T
a
=25
℃
, R
L
=10k
T
MIN
≤T
a
≤T
MAX
R
L
=10k
Low Level Output Voltage
V
OL
T
MIN
≤T
a
≤T
MAX
V
IN
=0.5 ~ 3V,
V
CC
=15V
Slew Rate at Unity Gain
SR
R
L
=2k, C
L
=100pF, unity gain
V
CC
=30V, R
L
=2K, C
L
=100pF
Gain Bandwidth Product
G
BP
f=100kHz, V
IN
=10mV
f=1kHz
Total Harmonic Distortion
THD Av=20dB, R
L
=2k,
V
CC
=30V
C
L
=100pF, V
OUT
=2V
PP
MIN
TYP
MAX
UNIT
0.5
2
3
4
5
mV
1
7
20
100
65
20
100
40
40
20
mV
μV/°C
nA
V/mV
dB
mA
60
mA
mA
V
10
27
27
28
5
20
20
mV
V/μs
MHz
%
0.2
0.5
0.4
0.9
0.02
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 6
QW-R105-031.D
UM603/A
ELECTRICAL CHARACTERISTICS(Cont.)
LINEAR INTEGRATED CIRCUIT
V
CC
+=+5V, V
CC
=Ground, V
OUT
=1.4V, Ta=25°C (unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
OPERATOR2
(independent op-amp)(Note 1)
T
a
=25°C
UM603A
T
MIN
≤T
a
≤T
MAX
Input Offset Voltage
V
I(OFF)
Ta=25°C
UM603
T
MIN
≤Ta≤T
MAX
Input Offset Voltage Drift
DV
I(OFF)
Input Offset Current
Input Bias Current
Large Signal Voltage Gain
Supply Voltage Rejection Ratio
Input Common Mode Voltage Range
Common Mode Rejection Ratio
Output Current Source
Short Circuit to Ground
Output Current Sink
High Level Output Voltage
Low Level Output Voltage
Slew Rate at Unity Gain
Gain Bandwidth Product
Total Harmonic Distortion
I
I(OFF)
I
I(BIAS)
Avd
SVRR
V
I(CM)
CMRR
I
O(SOURCE)
I
SC
I
O(SINK)
V
OH
V
OL
SR
GBP
THD
T
MIN
≤T
a
≤T
MAX
MIN
TYP
0.5
1
7
2
20
MAX
2
3
4
5
30
50
150
200
UNIT
mV
mV
μV/°C
nA
nA
V/mV
dB
T
MIN
≤T
a
≤T
MAX
V
CC
=15V, R
L
=2k, V
OUT
=1.4V~11.4V
T
MIN
≤T
a
≤T
MAX
V
CC
=5V ~30V
V
CC
=+30V (Note 1)
T
MIN
≤T
a
≤T
MAX
T
MIN
≤T
a
≤T
MAX
V
CC
=+15V, V
OUT
=2V, Vjd=+1V
V
CC
=+15V
Vid=-1V,
V
CC
=+15V, V
OUT
=2V
V
CC
+
=30V
T
a
=25
℃
, R
L
=10k
T
MIN
≤Ta≤T
MAX
R
L
=10k
T
MIN
≤Ta≤T
MAX
V
IN
=0.5 ~ 3V,
V
CC
=15V
R
L
=2k, C
L
=100pF, unity gain
V
CC
=30V, R
L
=2K, C
L
=100pF
f=100kHz, V
IN
=10mV
f=1kHz
Av=20dB, R
L
=2k, Vcc=30V,
C
L
=100pF, V
OUT
=2Vpp
50
25
65
0
0
70
60
20
10
27
27
100
100
(V
CC+
)-1.5
(V
CC+
)-2
V
dB
85
40
40
20
28
5
20
20
60
mA
mA
mA
V
mV
V/μs
MHz
%
0.2
0.5
0.4
0.9
0.02
VOLTAGE REFERENCE
PARAMETER
Cathode Current
PARAMETER
UM603A
Reference Input Voltage
UM603
V
REF
SYMBOL
Ik
SYMBOL
Value
1 ~ 100
TEST CONDITIONS
±0.4%, T
a
=25°C
T
MIN
≤T
a
≤T
MAX
, V
KA
=V
REF
, I
KA
=10mA
±1%, T
a
=25°C
T
MIN
≤T
a
≤T
MAX
, V
KA
=V
REF
, I
KA
=10mA
V
KA
=V
REF
; Ik=10mA
T
MIN
≤T
a
≤T
MAX
MIN
2.49
2.48
2.475
2.45
TYP
2.5
2.5
MAX
2.51
2.52
2.525
2.55
UNIT
mA
UNIT
V
Reference Input Voltage Deviation
△V
REF
mV
Over Temperature Range
7
30
Minimum Cathode Current for
I
MIN
V
KA
=V
REF
0.5
1
mA
Regulation
Dynamic Impedance(Note 2)
∣
Z
KA
∣
V
KA
=V
REF
,
△
Ik=1~100mA, f<1kHz
0.2
0.5
Ω
Note: 1. The input common-mode voltage of either input signal voltage should not be allowed to go negative by more
than 0.3V. The upper end of the common-mode voltage range is VCC+ -1.5V. But either of both inputs can
goto +36V without damage.
2. The dynamic impedance is defined as「ZKA」=△kA/△Ik
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 6
QW-R105-031.D
UM603/A

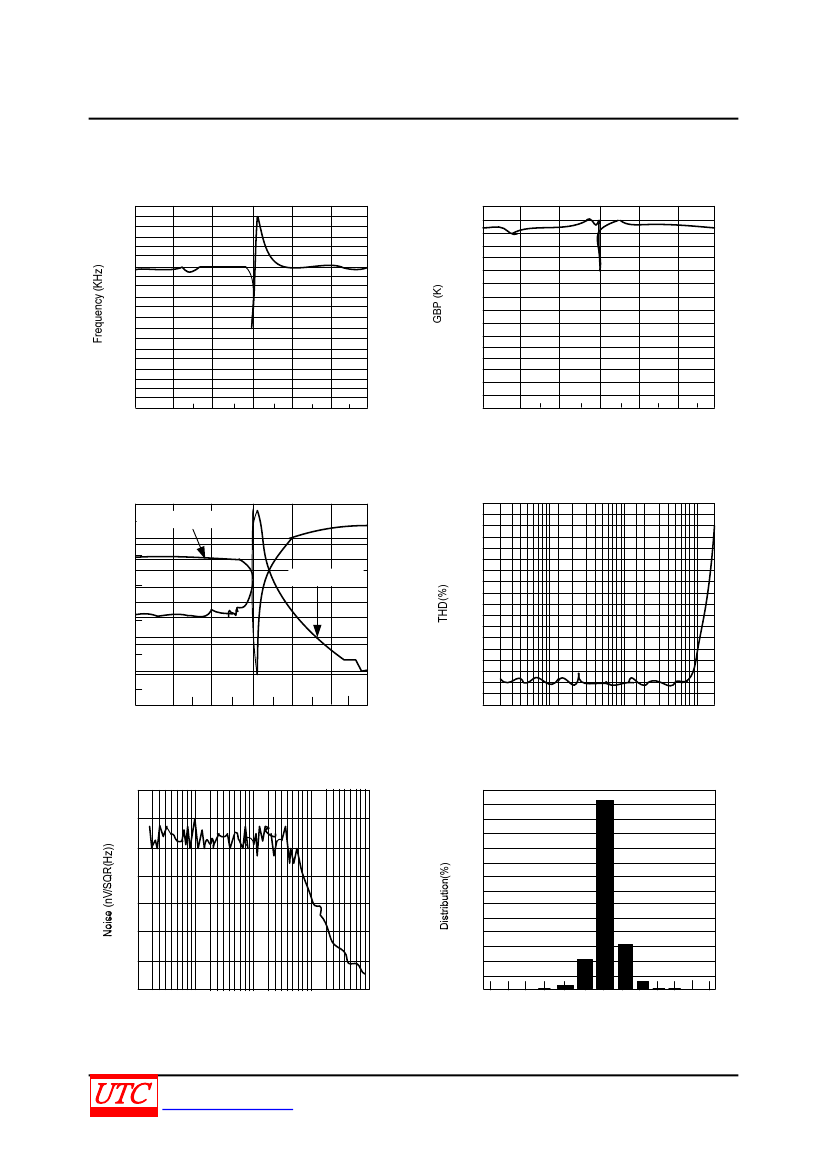

TYPICAL CHARACTERISTICS
Unit Frequency=F(I)
Vcc=+/-15V, R
L
=2K, C
L
=100PF
1000
800
700
800
600
500
400
400
300
200
100
0
-0.01
-0.005
Source<=
0
I(A)
0.005
=>Sink
0.01
0.015
0
LINEAR INTEGRATED CIRCUIT
GBP=F(I)
Vcc=+/-15V, R
L
=2K, C
L
=100PF
600
200
-0.01
-0.005
Source<=
0
I(A)
0.005
=>Sink
0.01
0.015
Phase and Gain Margin=F(I)
Vcc=+/-15V, R
L
=2K, C
L
=100PF
60
Phase Margin(deg)
50
40
30
20
10
0
-0.01
-0.005
Source<=
0
I(A)
0.005
=>Sink
0.01
Gain Margin(dB)
-6
-8
-10
-12
-14
0.015
-2
-4
0
0.014
0.013
0.012
0.011
0.01
0.009
0.008
0.007
0.006
0.005
10
100
1000
10000
Frequency (Hz)
Vio Distribution-Operator 1
Vcc+=5V,Vcc-=0V
70
60
50
40
30
20
10
0
0.1
1
Frequency (Hz)
10
100
-3 -2.5 -2 -1.5 -1 -0.5 0
0.5 1 1.5 2 2.5 3
Total Harmonic Distorsion THD=F(freq)
Total Harmonic Distorsion THD=F(freq)
70
60
50
40
30
20
10
0
0.01
Input Offset Voltage, V
I(OFF)
(mV)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 6
QW-R105-031.D
