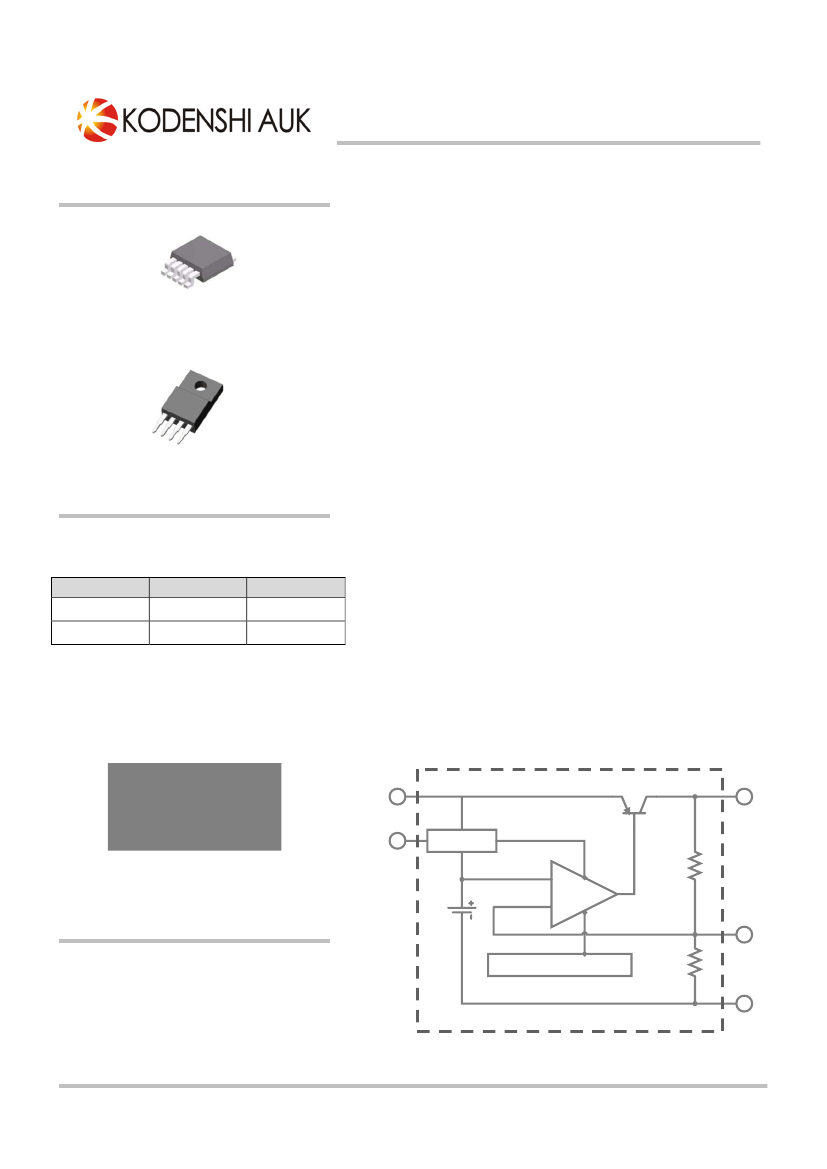

S52Dxxx
Low Dropout Voltage Regulator
(1.0A Series)
Semiconductor
http:// www.auk.co.kr
Description
The S52Dxxx is an efficient linear low dropout voltage regulator for
various electronic equipment. It is designed to provide very low dropout
voltage, and better than 2.4% output voltage accuracy.
And the S52Dxxx has various key features such as current limiting,
over temperature shut-down, over voltage protection, enable pin, and
low noise performance with an low noise option.
Furthermore, it is available in adjustable or fixed output voltages in SOP-8,
TO-252-5L, TO-220F-4SL packages.

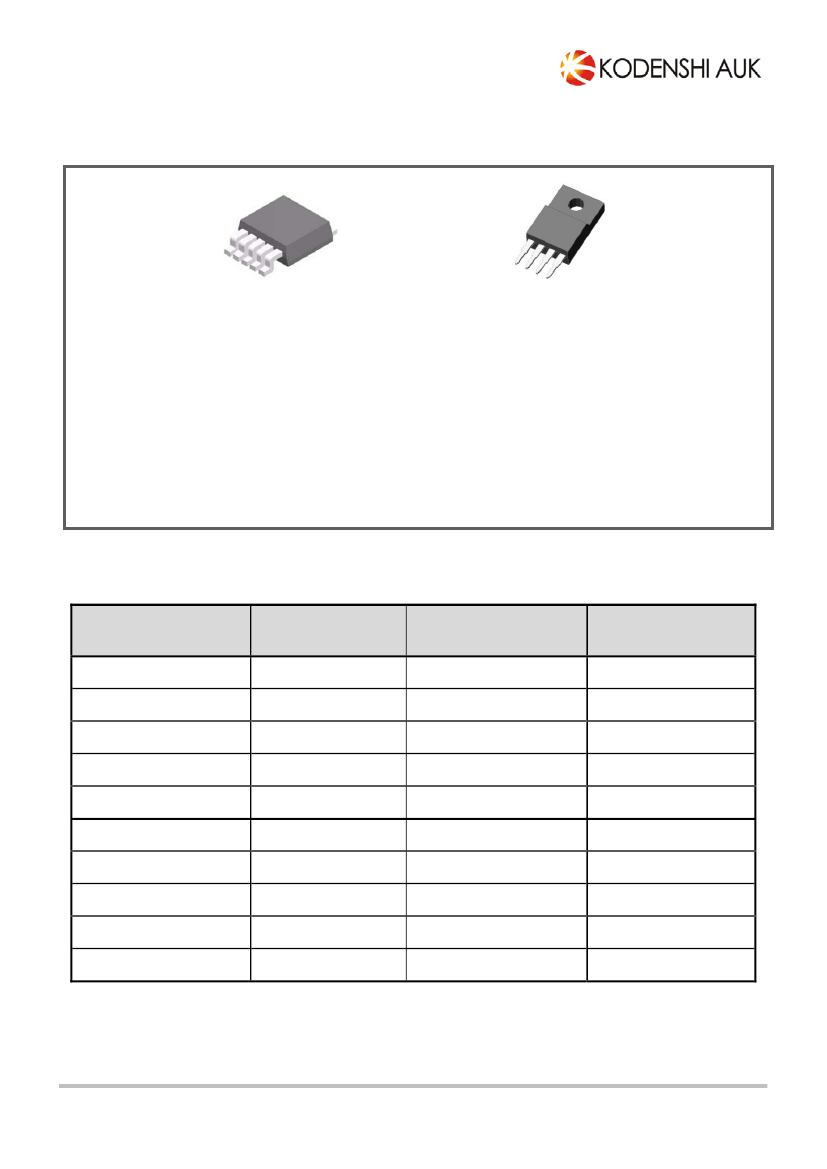

TO-252-5L
Application
TO-220F-4SL
◈
Consumer and personal electronics
◈
SMPS post-regulator / dc-to-dc modules
◈
High-efficiency linear power supplies
ORDERING INFORMATION
Product
S52DxxD
S52DxxPIC
Marking
S52DxxD
S52DxxPIC
Package
TO-252-5L
TO-220F-4SL
Features and Benefits
◈
Low Dropout Voltage for 1.0A Output : [ Max. 500mV].
◈
Built in Thermal shut down circuit.
◈
Built in OVP, CLP circuit.
◈
Low Quiescent Current : [Typ. 2.0mA]
◈
Ultra High level of ESD [ Built in ESD Protection Cell ]
MM : 400V↑ / HBM 3KV↑
▲
Marking Detail Information
[ TO-220F-4SL & TO-252-5L PKG Marking ]
AUK(①)
G△YWW (②)
S52Dxxx (③)
①
AUK Logo
②
Grade & M Code & Year & Week Code
③
Device Code
Equivalent Circuit
V
IN
V
OUT
Bias
¯
+
TSD, OVP, CLP
V
CTL
V
REF
CN
or
ADJ
GND
KSD-I0T009-002
Jan. 2011 REV. 02
1
S52Dxxx
◈
Absolute Maximum Ratings ( Ta = 25℃ )
Parameter
Input Voltage
SOP-8
Power Dissipation
TO-220F-4SL
TO-252-5L
Junction Temperature
Operate Temperature Range
Storage Temperature Range
T
J
T
opr
T
stg
P
d
Symbol
V
IN
Limits
23.0
0.6(Note1)
2.0(Note1)
1.5(Note1)
150
-30 ~ +125
-55 ~ +150
Unit
V
W
℃
℃
℃
Note 1 : No Heat-sink
Absolute maximum ratings indicate limits beyond which damage to the component may occur. Electrical
specifications do not apply when operating the device outside of its operating ratings. The maximum
allowable power dissipation is a function of the maximum junction temperature, T
J(max)
,
the junction-to-ambient thermal resistance,
θ
JA
, and the ambient temperature, TA.
The maximum allowable power dissipation at any ambient temperature is calculated using:
PD(max) = (T
J(max)
– T
A
) ÷
θ
JA
. Exceeding the maximum allowable power dissipation will result in
excessive die temperature, and the regulator will go into thermal shutdown.
◈
Guaranteed Operating Conditions ( Ta = 25℃ )
Parameter
Supply Input Voltage
Enable Input Voltage
Output Current
Symbol
V
IN
V
CTL
I
OUT
Limits
Vo+0.5~20
0~ V
IN
0~ 1.0
Unit
V
V
A
KSD-I0T009-002
Jan. 2011 REV. 02
3
