UNISONIC TECHNOLOGIES CO., LTD

3404

DUAL OPERATIONAL AMPLIFIER

DESCRIPTION

The UTC

3404

is high performance single supply dual operational

amplifier.

The UTC

3404

is improved version of the UTC M2904 on slew rate &

cross-over distortion.

LINEAR INTEGRATED CIRCUIT

FEATURES

*Single Supply

*Operating Voltage: +4v~+36v

*Low Operating Current: 2.0mA (Typ.)

*Slew Rate: 1.2v/μs (typ.)

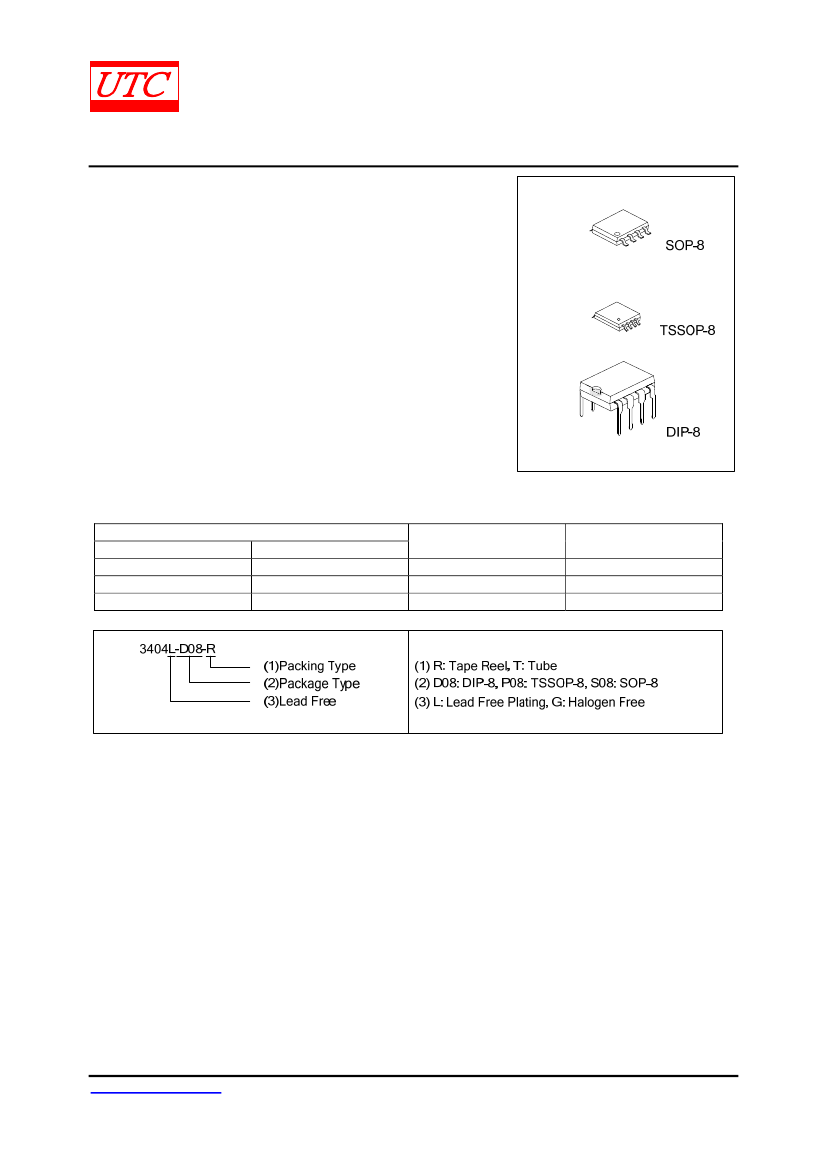

ORDERING INFORMATION

Ordering Number

Lead Free Plating

Halogen Free

3404L-D08-T

3404G-D08-T

3404L-P08-R

3404G-P08-R

3404L-S08-R

3404G-S08-R

Package

DIP-8

TSSOP-8

SOP-8

Packing

Tube

Tape Reel

www.unisonic.com.tw

1 of 8

QW-R105-026,C

3404_10 Related Products

	3404_10	3404L-D08-T	3404L-P08-R	3404L-S08-R
Description	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.2 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.2 MHz BAND WIDTH, DIP8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.2 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.2 MHz BAND WIDTH, PDSO8
Parts packaging code	-	DIP	SOIC	SOIC
package instruction	-	DIP,	TSSOP,	SOP,
Contacts	-	8	8	8
Reach Compliance Code	-	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99
Amplifier type	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	-	0.2 µA	0.2 µA	0.2 µA
Nominal Common Mode Rejection Ratio	-	90 dB	90 dB	90 dB
Maximum input offset voltage	-	5000 µV	5000 µV	5000 µV
JESD-30 code	-	R-XDIP-T8	R-PDSO-G8	R-PDSO-G8
length	-	9.2 mm	4.4 mm	4.92 mm
Negative supply voltage upper limit	-	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-	-15 V	-15 V	-15 V
Number of functions	-	2	2	2
Number of terminals	-	8	8	8
Maximum operating temperature	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
Package body material	-	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	TSSOP	SOP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	4.31 mm	1.2 mm	1.96 mm
Nominal slew rate	-	1.2 V/us	1.2 V/us	1.2 V/us
Supply voltage upper limit	-	18 V	18 V	18 V
Nominal supply voltage (Vsup)	-	15 V	15 V	15 V
surface mount	-	NO	YES	YES
technology	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	-	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	-	2.54 mm	0.65 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	-	1200 kHz	1200 kHz	1200 kHz
width	-	7.62 mm	3.05 mm	3.95 mm
Base Number Matches	-	1	1	1
