1-2112780-8

Description
Combination Line Connector
CategoryThe connector    The connector
File Size3MB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

1-2112780-8 Overview

Combination Line Connector

1-2112780-8 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Connector typeCOMBINATION LINE CONNECTOR
Base Number Matches1
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
TE Connectivity
ALL RIGHTS RESERVED.
7
2011
6
5
4
3
2
PROJECT NO
1
EGATN09356
LOC
DIST
C
COPYRIGHT
2011
AI
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
6
DELIVERY
CONDITION
37
6x3.5(=1)
2
3.5
Anlieferungszustand
2:1
2. LOCK, MUST SEPARATELY BE ORDERED
TE PN 0-1670789-1
2. Kontaktsicherung muss separat
bestellt werden, TE Nr. 0-1670789-1
INSTALLATION POSITION ACCORDING
INSERTION OF THE CONTACTS AND THE 2.LOCK
Einbaustellung nach der Bestueckung von den
Kontakten und der 2. Kontatksicherung
E6
E7
F1
F
MATERIAL INPUT BY LOWER PART CORRECTED
PART-NO. 4-2112780-7/-8/-9 ADDED
UPPER PART CHANGED
NOTE 8 ADDED
23NOV2016
14DEC2016
27FEB2017
22MAY2017
RM
RM
RM
RM
PNI
PNI
PNI
PNI
COVER FOR HOUSING
LOOSE PIECE TE PN 0-2112758-1
OPTIONAL LEFT OR RIGHT CLIP-ON
D
PLUG IN DIRECTION FOR
CONTACT MOUNTING
Einschubrichtung fuer
Kontaktbestueckung
Abdeckkappe fuer Buchsengehaeuse wird
separat beigestellt TE NR. 0-2112758-1
Abdeckkappe optional links oder rechts aufsteckbar
LEVER IN PRE LOCKED POSITION
D
Hebel in Vorraststellung
+0.8
43.9
-0.7
5.5
6.3
2:1
PLUG IN DIRECTION FOR 2. LOCK
Einschubrichtung fuer 2. Kontaktsicherung
2:1
2. LOCK ASSEMBLED
LEVER IN END LOCKED POSITION
LEFT / links
1:1
RIGHT / rechts
1:1
Hebel in Endraststellung
2.Kontaktsicherung assembiliert
4
3
C
B
A
B-B
1
A-A
8
INSTALLATION POSITION ACC.INSERTION
OF THE CONTACTS/BLIND PLUG AND THE 2.LOCK
Einbaustellung nach der Bestueckung von
den Kontakten/Blindstopfen und der 2. Kontatksicherung
C
3
4
32
+0.5
-0.6
LEVER IN PRE LOCKED POSITION
Hebel in Vorraststellung
5
BLIND PLUG
Blindstopfen
2
B
5.1
0.3
F-F
B
B
A
C-C
60.3
8
NOTES
:
Bemerkungen:
2. LOCK ASSEMBLED
2. Kontaktsicherung assembiliert
1
2
PACKAGING: LOOSE PIECE INTO CARTON
Verpackung: Schuettgut in Karton
2.LOCK SEE TE DRAWING NO.1670789
COVER SEE TE DRAWING NO.2112758
2.Kontaktsicherung siehe TE Zeichnung Nr.1670789
Abdeckkappe siehe TE Zeichnung Nr.2112758
CAVITY 1, 9, 10 AND 18 SUITABLE FOR CONTACT:
2.8mm SENSOR FLAT CONTACT
0967543 (STRIP) OR 0967717 (LOOSE PIECE) >1.5mm² TO 2.5mm²
AND 0828905 (SINGLE WIRE SEAL) INSULATION DIA. 2.2mm TO 3.0mm
Kammer 1, 9, 10 und 18 passend fuer Kontakt:
2.8mm Sensor Flachkontakt
0967543 (Band) oder 0967717 (vereinzelt) >1.5mm² bis 2.5mm²
und 0828905 (Einzeldichtung) Isolationsdurchmesser 2.2mm bis 3.0mm
6
3
4
24
CAVITY 2 TO 8 AND 11 TO 17 SUITABLE FOR CONTACT:
MCON-1.2 CLEAN BODY
1534594 (STRIP) OR 1534595 (LOOSE PIECE) 0.35mm²
INSULATION DIA. 1.1mm TO 1.75mm
1670144 (STRIP) OR 1670145 (LOOSE PIECE) 0.5mm² TO 0.75mm²
INSULATION DIA. 1.4mm TO 1.9mm
Kammer 2 bis 8 und 11 bis 17 passend fuer Kontakt:
MCON-1.2 CLEAN BODY
1534594 (Band) und 1534595 (vereinzelt) 0.35mm²
Isolationsdurchmesser 1.1mm bis 1.75mm
1670144 (Band) und 1670145 (vereinzelt) 0.5mm² bis 0.75mm²
Isolationsdurchmesser 1.4mm bis 1.9mm
1:1
F
A
F
5
CONTACT SUFACE ACCORDING TO MATING CONNECTOR
Kontaktoberflaeche entsprechend dem Gegenstecker
ORDER OF ASSEMBLY:
1.) CONTACT MOUNTING
2.) 2.LOCK MOUNTING
3.) LEVER IN PRE LOCKED POSITION
4.) OPTIONAL COVER
A
1-
-2
AS SHOWN (DELIVERY CONDITION)
-------------------------------------
WIE GEZEICHNET
(Anlieferungszustand)
6
Reienfolge der Bestueckung:
1.) Kontaktbestueckung
2.) 2.Kontaktsicherung assemblieren
3.) Hebel in Vorraststellung
4.) Optional Abdeckkappe
INTERFACE DRAWING NO.114-18801
Schnittstellenzeichnung Nr.114-188018
SUITABLE BLIND PLUG FOR THE CAVITYS 2 TO 8 AND 11 TO 17
SEE TE PART-NO.2286476-1
Passender Blindstopfen fuer die Kammern 2 bis 8 und 11 bis 17
siehe TE Teile-Nr.2286476-1
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
7
( )
22
8
mm
MATERIAL
-
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
ALLGEMEINTOLERANZEN
DIN/ISO 16901-140 CENTRE/mittig
-
-
-
-
-
15MAR2010
P.Nickelfeld
CHK
09APR2010
J.Ryll
APVD
09APR2010
D.Duenkel
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
108-94094
-
1 $
114-18853
WEIGHT
-
CUSTOMER DRAWING
A0
SIZE

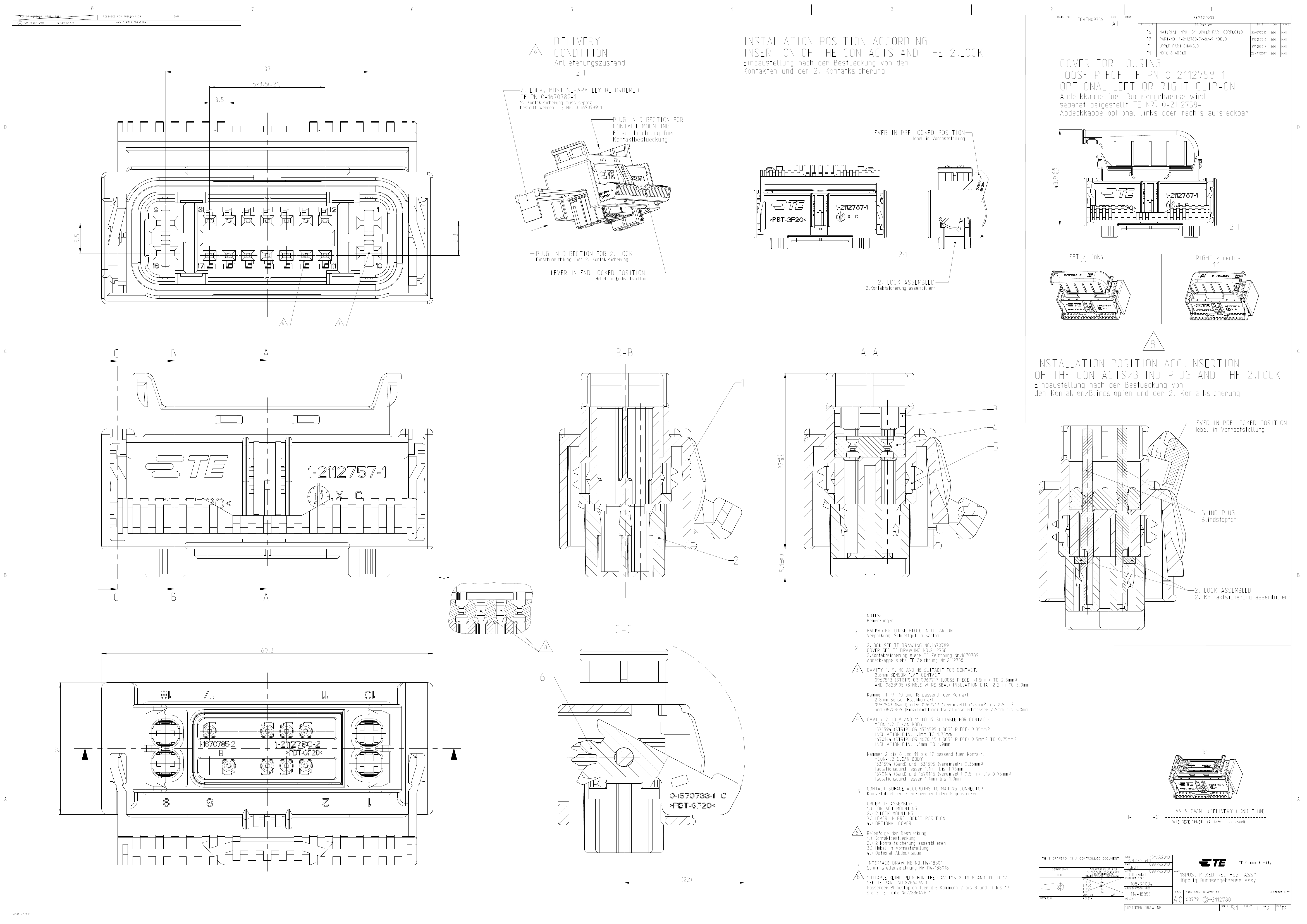

18POS. MIXED REC HSG, ASSY
18polig Buchsengehaeuse Assy
-
CAGE CODE
DRAWING NO
RESTRICTED TO
00779
2112780
SCALE
4806 (3/11)
5:1
SHEET
1
OF
2
REV
F2
