KDZ16FV: Description16.2 V, 0.1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size551KB，4 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/; Environmental Compliance

Download Datasheet Parametric View All

KDZ16FV Overview

16.2 V, 0.1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

KDZ16FV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEC
package instruction	R-PDSO-F2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	18 Ω
JESD-30 code	R-PDSO-F2
Maximum knee impedance	150 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.1 W
Certification status	Not Qualified
Nominal reference voltage	16.2 V
Maximum reverse current	0.5 µA
Reverse test voltage	12 V
surface mount	YES
technology	ZENER
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	6%
Working test current	5 mA

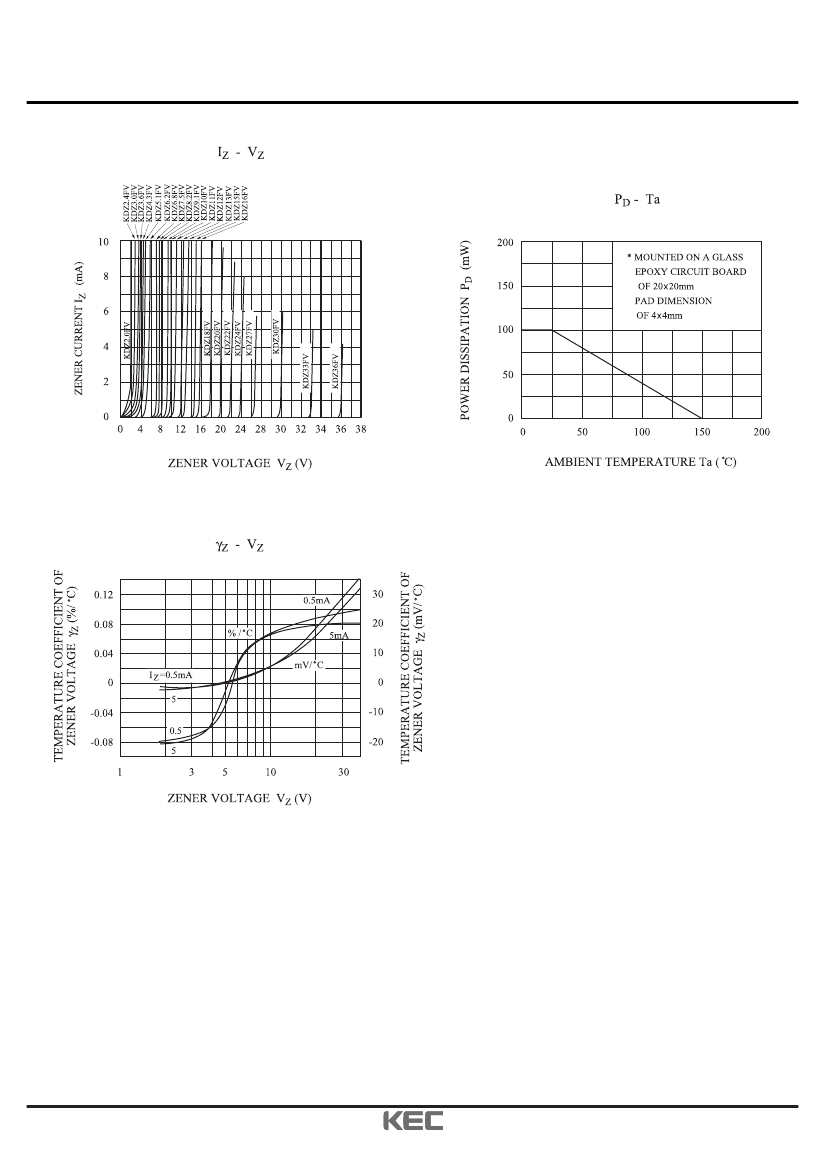

Preview

Download Datasheet

View All

SEMICONDUCTOR

TECHNICAL DATA

CONSTANT VOLTAGE REGULATION APPLICATION.

REFERENCE VOLTAGE APPLICATION.

FEATURES

・Small

Package : TFSC

・Sharp

Breakdown Characteristic.

KDZ2.0FV~36FV

ZENER DIODE

SILICON EPITAXIAL PLANAR DIODE

CATHODE MARK

MAXIMUM RATING (Ta=25℃)

CHARACTERISTIC

Power Dissipation

Junction Temperature

Storage Temperature Range

SYMBOL

stg

RATING

100

150

-55½150

UNIT

DIM

MILLIMETERS

1.00 + 0.05

0.80+0.10/-0.05

0.60 + 0.05

0.30 + 0.05

0.40 MAX

0.13 + 0.05

0.10 MAX

0.25 MAX

℃

* Mounted on a glass epoxy circuit board of 20×20㎜,

pad dimension of 4×4㎜.

TFSC

Type No.

**KDZ2.0FV

**KDZ2.2FV

**KDZ2.4FV

**KDZ2.7FV

**KDZ3.0FV

**KDZ3.3FV

**KDZ3.6FV

**KDZ3.9FV

**Under development

Marking

Type No.

KDZ4.3FV

KDZ4.7FV

KDZ5.1FV

KDZ5.6FV

KDZ6.2FV

KDZ6.8FV

KDZ7.5FV

KDZ8.2FV

Marking

Type No.

KDZ9.1FV

KDZ10FV

KDZ11FV

KDZ12FV

KDZ13FV

KDZ15FV

KDZ16FV

KDZ18FV

Marking

Type No.

KDZ20FV

KDZ22FV

KDZ24FV

KDZ27FV

KDZ30FV

KDZ33FV

KDZ36FV

Marking

2013. 1. 3

Revision No : 2

1/4
