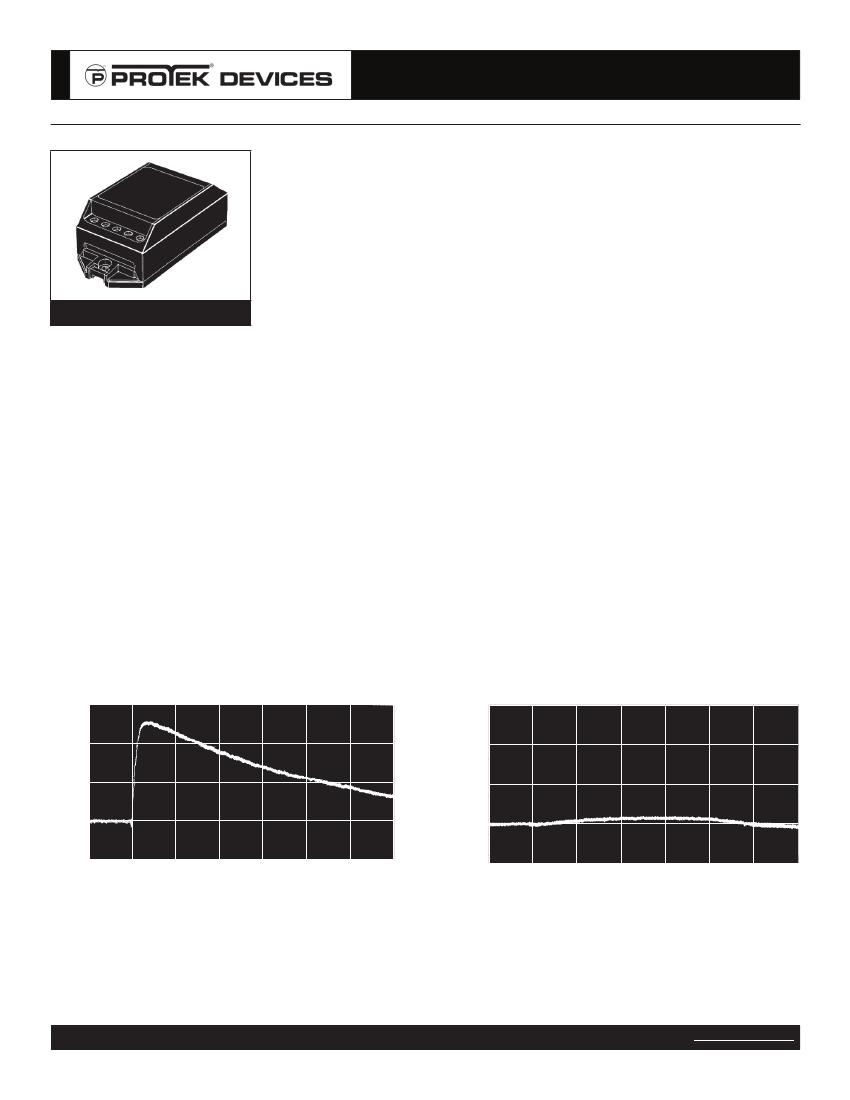

Figures 1 and 2 are photographs of digitized waveforms showing the typical clamping action of a 15A module. A 12 Ohm resistor is used to repre-
sent a 10A equipment load. The load is then subjected to the ANSI/IEEE C62.41 Catagory CI test conditions (6000V/3000A). These photographes
contrast the effect on equipment with and without the protector.
05040.R5 2/11
Page 1
www.protekdevices.com
05040
Only One Name Means ProTek’Tion™
587B051LP - 587B301LP
tyPicaL Device chaRacteRistics
MaXiMuM Ratings
@ 25°c unless otherwise specified
PaRaMeteR
Operating Line Voltage: +10%
Line Current: 587B051LP/587B101LP/587B151LP/587B301LP
Peak Transient Voltage
Peak Transient Current
Current Leakage @ 130 Volts AC: Line-to-Neutral, Neutral-to-Ground, Line-to-Ground
Operating Temperature - Note 1
Storage Temperature - Note 1
1. Measured at the center of the mounting surface.
syMBoL
V
O
-
-
-
-
T
A
T
STG
vaLue
130
5/10/20/30
6000
3000
1
-40 to 85
-40 to 85
units
Volts AC
Amps
Volts
Amps
mA
°C
°C
notes
eLectRicaL chaRacteRistics
@ 25°c unless otherwise specified
PRotection
MoDe
(note 1)
MaXiMuM
cLaMPing voLtage
(note 2)
voLts
Line to Neutral
Line to Neutral
Neutral to Ground
Line to Ground
notes
295
330
500
500
oPen ciRcuit
voLtage
(note 2)
@1.2/50µs
voLts
1000
6000
1000
6000
shoRt ciRcuit
cuRRent
(note 2)
@ 8/20µs
aMPs
500
3000
500
3000
1. Differential Mode Protection: Line to Neutral. Common Mode Protection: Line to Ground & Neutral to Ground.
2. Test condition responses to transient voltages.
aRRestoR Definitions
Clamping Voltage: The clamping voltage of an arrester is the voltage that appears across its terminals during conduction of a transient current.
Standard Wave Form: The waveform of a surge current or voltage is designated by a combination of two numbers. The first number is for the time of the wave front
expressed in microseconds from zero to the peak of the wave. The second number is for the time of the wavetail also expressed in microseconds from zero to the
instant that the wavetail reaches one half of the crest or peak value, i.e., 8/20 µs waveform.
Transient Current: The transient current of an arrestor is the peak surge current which flows through the arrester when voltage clamping occurs.
oPeRation
For maximum effectiveness, the protector should be installed directly after the AC line on/off switch and fuse. This will protect the electronics from the AC line switch
arcing and the severe transients caused by a fuse clearing.
Some heat is produced when operating at full current load, and heat sinking may be required to maintain case temperature below 85°C. The case temperature is
measured at the center of the mounting surface. The unit should not be mounted to a low combusting temperature material such as wood.
High energy transients will cause a large circulating current in the AC input line (2,500A is possible). To prevent electromagnetic coupling, the AC line on the input side
of the protector must be dressed away from other wiring, magnetic shielding may be required. In addition, the electrical service must be connected to a low imped-
ance earth ground.
05040.R5 2/11
Page 2
www.protekdevices.com
05040
Only One Name Means ProTek’Tion™
587B051LP - 587B301LP
PacKage infoRMation
outLine DiMensions
DiM
A
B
C
D
E
F
G
58.04
43.89
27.9
58.80
2.29
110.92
14.43
44.39
1.62
1.10
2.32
MiLLiMeteRs
Min
96.8
88.9
111.68
4.37
inches
Min
3.81
3.50
4.40
0.586
1.72
MaX
MaX
A
E
D
C
B
F
G
Line 1 Out
Line In
Dia. 0.181”
Neutral In
Ground In
DEVICE
MARKING
Line 2 Out
Neutral 1 Out
Neutral 2 Out
Ground Out
oRDeRing infoRMation
Base PaRt nuMBeR
(xx = voltage)
587BxxxLP
MaRKing
Part Number, Date Code, Voltage, Logo, Current Rating, CSA Logo
05040.R5 2/11
Page 3
www.protekdevices.com
05040
Only One Name Means ProTek’Tion™
587B051LP - 587B301LP
coMPany infoRMation
coMPany PRofiLe
ProTek Devices, based in Tempe, Arizona USA, is a manufacturer of Transient Voltage Suppression (TVS) products designed specifically for
the protection of electronic systems from the effects of lightning, Electrostatic Discharge (ESD), Nuclear Electromagnetic Pulse (NEMP), in-
ductive switching and EMI/RFI. With over 25 years of engineering and manufacturing experience, ProTek designs TVS devices that provide
application specific protection solutions for all electronic equipment/systems.
ProTek Devices Analog Products Division, also manufactures analog interface, control, RF and power management products.
SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice.
DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice and that the final judgement concerning selection and specifications is the buyer’s and that in furnishing engineering
and technical assistance. ProTek assumes no responsibility with respect to the selection or specifications of such products. ProTek makes no warranty, representation or guarantee regarding the suitability of
its products for any particular purpose, nor does ProTek assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability without limitation special,
consequential or incidental damages.
LIFE SUPPORT POLICY: ProTek Devices products are not authorized for use in life support systems without written consent from the factory.
PATENT INFORMATION: This device is patented under U.S. Patent No. 4,563,720
