890-007-31ST-BST2T datasheet, PDF

Datasheet> All Categories > The connector> The connector> 890-007-31ST-BST2T

890-007-31ST-BST2T: DescriptionD Nanominiature Connector, 31 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size1MB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

890-007-31ST-BST2T Overview

D Nanominiature Connector, 31 Contact(s), Female, Solder Terminal, Receptacle,

890-007-31ST-BST2T Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-32139
Body/casing type	RECEPTACLE
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	890-007
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	TITANIUM
Termination type	SOLDER
Total number of contacts	31

Preview

Download Datasheet

View All

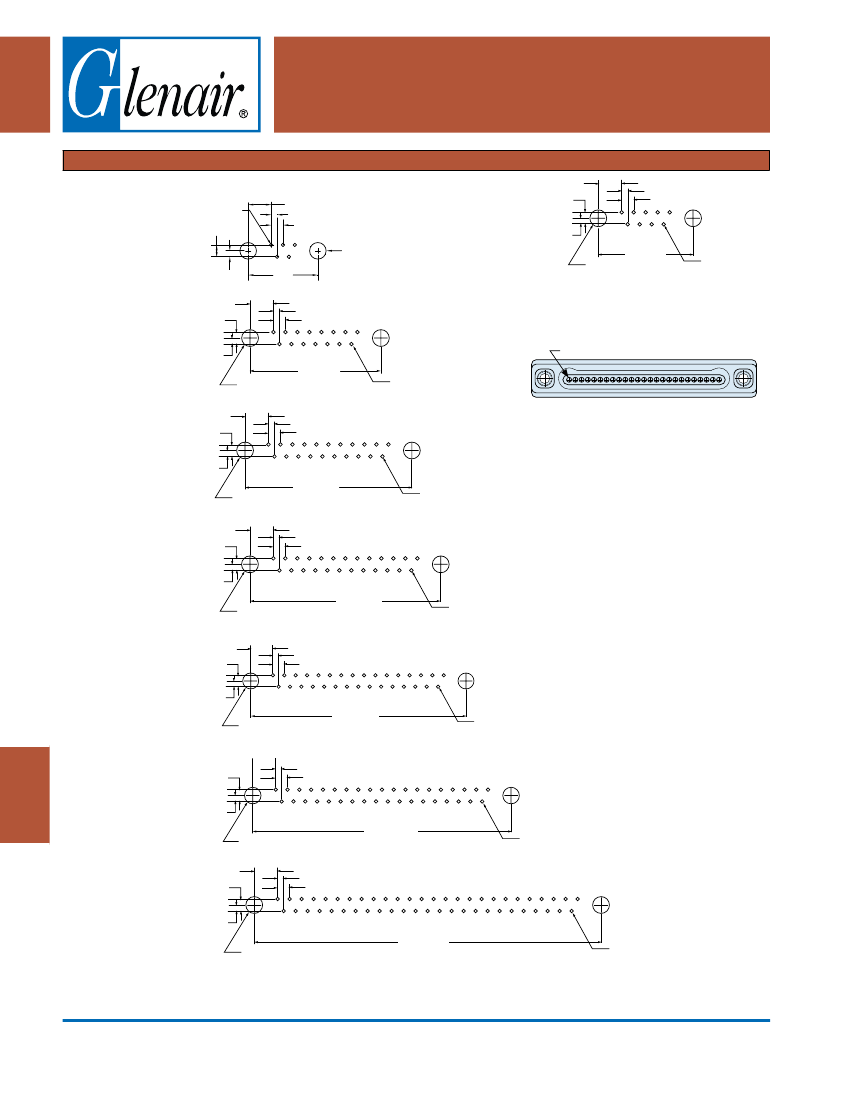

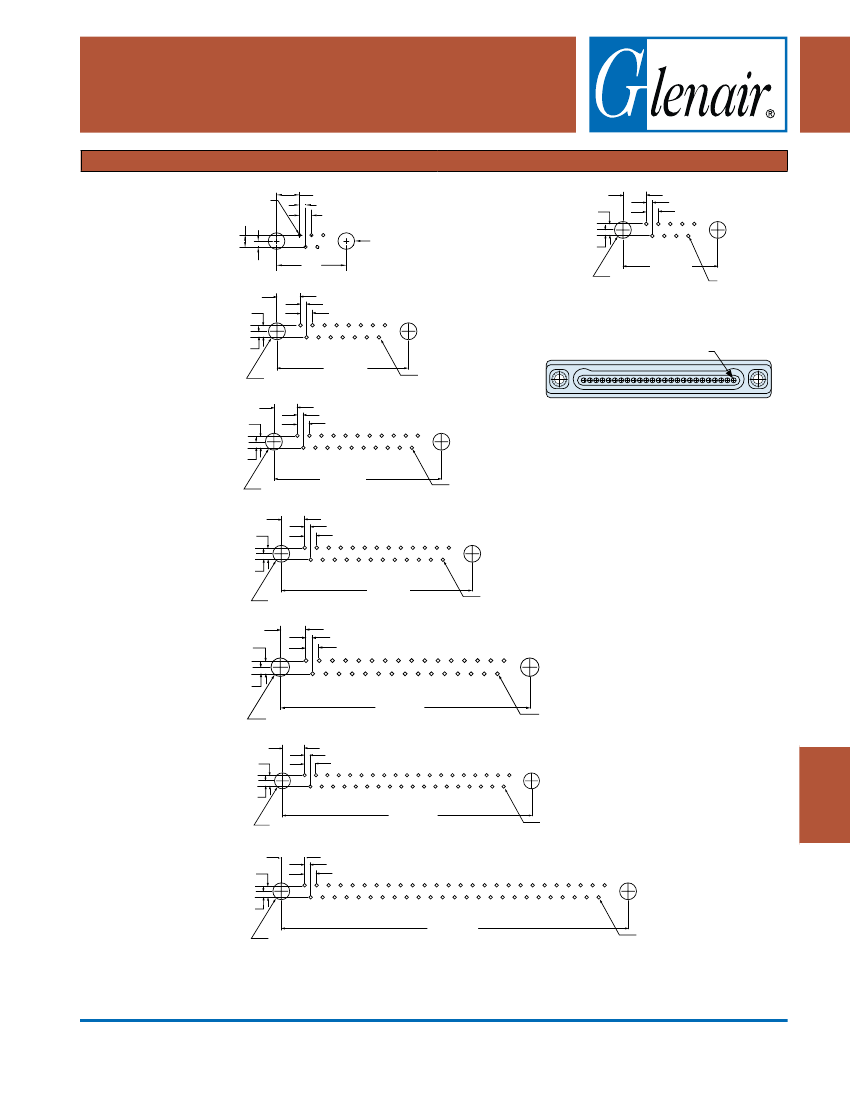

Thru Hole Type

Vertical Mount Thru Hole PCB Nano Connectors

feature gold alloy TwistPin contacts. These nanomimiature

connectors offer premium performance and reliability for

demanding applications. Available with #0-80 female threads,

or with jackscrews for use with flexible circuits.

excellent solderability.

Pre-Tinned PC Tails

are coated with Sn63Pb37 tin-lead for

Choose Aluminum, Titanium or Stainless Steel

Shells

in eight layouts from 5 to 51 contacts. Complies to

the requirements of MIL-DTL-32139. These connectors are

intermateable with any corresponding Glenair Series 890

single row metal shell nanominiature connector.

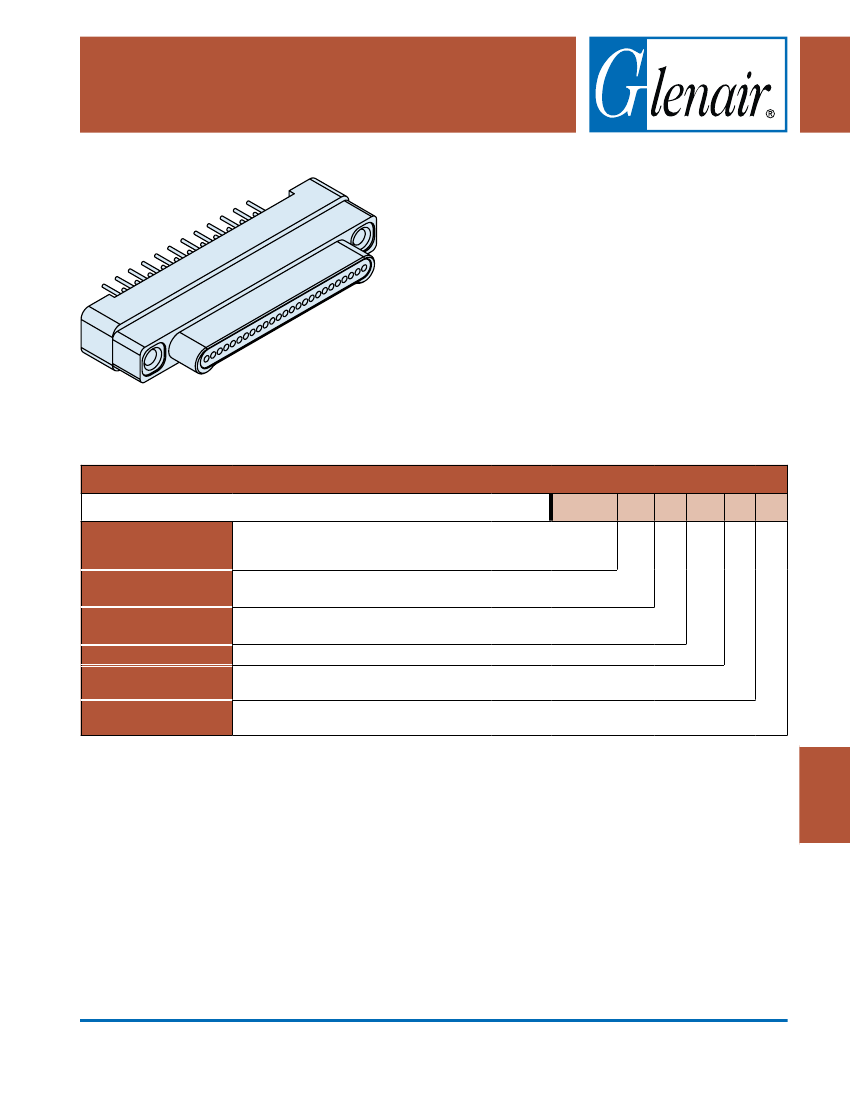

How to Order Vertical Mount PCB Connectors

Sample Part Number

Series

Insert Arrangement/

Contact Type

Shell Material

and Finish

Termination Type

PC Tail Length

Hardware

890-007

890-006

Plug, Pin Contacts, Single Row, Vertical PCB Nanominiature

890-007

Receptacle, Socket Contacts, Single Row, Vertical PCB

Nanominiature

Plugs (890-006):

5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P

Receptacles (890-007):

5S, 9S, 15S, 21S, 25S, 31S, 37S, 51S

- Aluminum Shell, Cadmium Plating

- Aluminum Shell, Electroless Nickel Plating

BST

- Board Straight Thru-Hole

- .110 Inch (2.79)

- .172 Inch (4.37)

- Jackscrew, #0-80

- Female Thread, #0-80

- .140 Inch (3.55)

- Titanium Shell, Unplated

- Stainless Steel Shell, Passivated

-31S

-BST

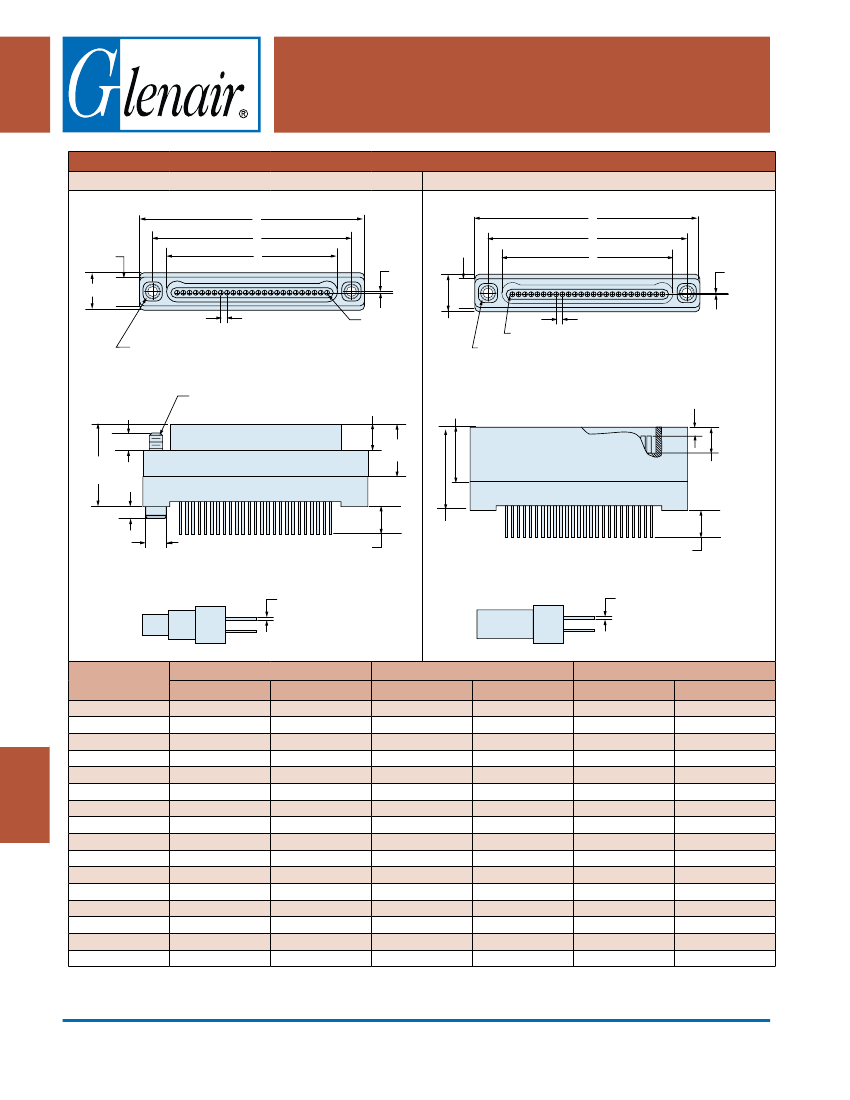

Dimensions in inches (millimeters) and are subject to change without notice.

Series 89 Nano Catalog

U.S. CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-1

E-Mail: sales@glenair.com

Single Row

Connectors

890-006 and 890-007

Vertical Mount PCB, Single Row Nano Connector
