IPT 00 A
Front Panel Mount Square Flange Receptacle
with Backshell
IPT Series
Bayonet Lock
Connectors
IPT 00 A 18-11 S Z C XX
MIL-C-26482
Series l Type
00 - Front Panel Mount
Square Flange Receptacle
Connector Class
A - Non-Environmental
Shell Size and
Insert Arrangements
Mod Code Options
See Table II
Contact Type
C - Crimp
(Omit for Solder Cup)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal
Contact Gender
P - Pin
S - Socket
M
H
E
D
G
APPLICATION NOTES
1. Front panel wall mount receptacle with backshell for the attachment of additional accessories; through mounting holes.
2. Connector Class “A” (non-environmental)––no grommet supplied.
3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.
4. Standard contact material consists of copper alloy with gold plating over nickel.
5. A broad range of other front and rear connector accessories are available. See our website and/or contact factory for complete information.
6. Standard insert is high insulation synthetic rubber.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-16
with Backshell

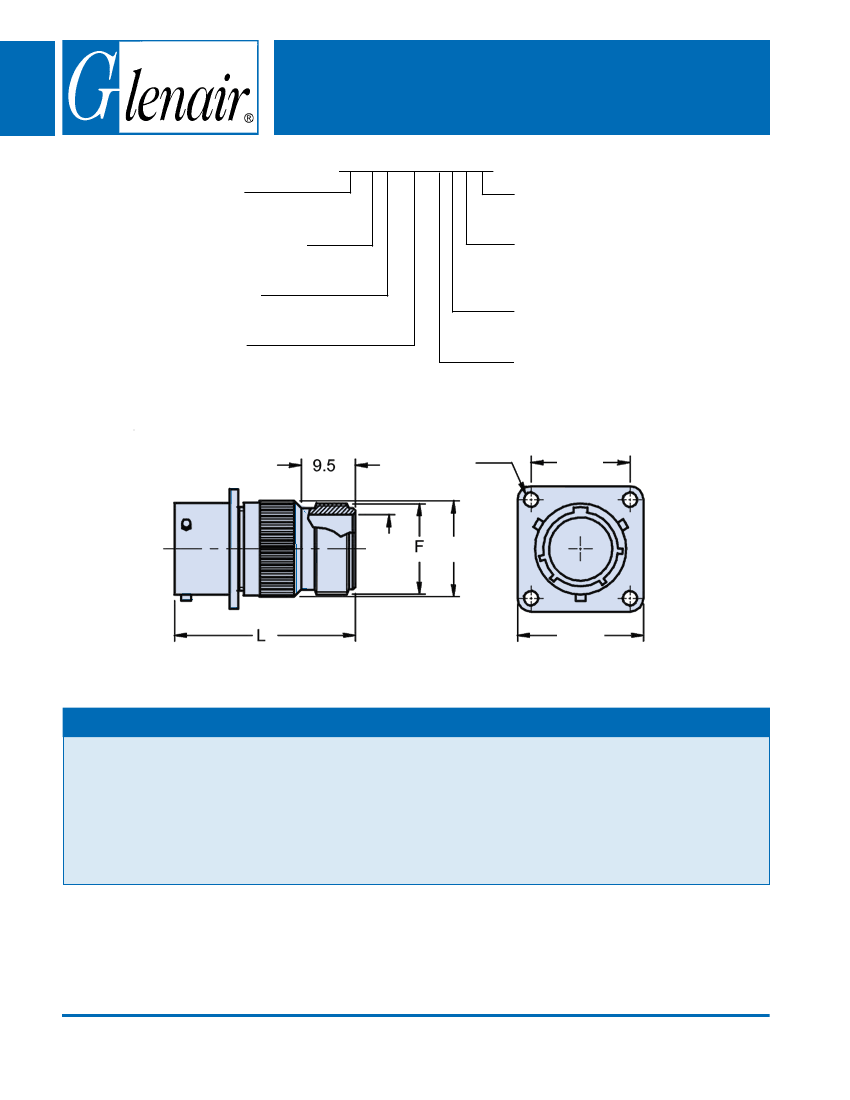

TABLE I: DIMENSIONS
Shell size
8
10
12
14
16
18
20
22
24
D
Max.
15.00
18.20
21.20
24.60
27.60
30.90
33.80
37.10
40.25
E
min.
7.55
10.70
13.85
16.85
20.00
22.30
25.75
28.80
32.00
F
Thread in inches
.5000 - 28 UNEF
.6250 - 24 UNEF
.7500 - 20 UNEF
.8750 - 20 UNEF
1.0000 - 20 UNEF
1.1875 - 18 UNEF
1.1875 - 18 UNEF
1.4375 - 18 UNEF
1.4375 - 18 UNEF
G
±0.4
20.6
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
H
±0.1
15.10
18.25
20.60
23.00
24.60
27.00
29.35
31.75
39.40
L
Max.
40.9
40.9
40.9
40.9
40.9
40.9
45.0
45.0
45.0
M
±0.12
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.04
3.73
TABLE II: MODIFICATION CODES
Shell Finish
(Omit for Standard Cad/Olive Drab Finish)
F2
- Bright Nickel Plating (RoHs)
F6
- Black Electrodeposited Paint (RoHs)
F7
- Black Zn-Co Plating (RoHs)
F8
- Olive Drab Zn-Co Plating
Assembly with Accessories
(Omit for Standard Version)
Key Polarization (Omit for
N
version)
W, X, Y, Z
= Alternates
N0
- Connector Less Backshell
NXXX
- Custom Designed Connector
STANDARD FINISHES (For QQ-A-591 Aluminum Shells)
Requirements
IAW RoHS
F2 Electrolytic Nickel F6 Black Non Conductive F7 Black Conductive
Thermal Shock
Salt Spray After
Thermal Shock
Electical Conductivity
Abrasion Resistance
-40°C + 100°C
24 hour
Very Good
Very Good
-55°C + 125°C
500 hour
NO
Very Good
-55°C + 125°C
500 hour
Very Good
Good
Not IAW RoHS
G3 Cadmium with Olive F8 Zinc Cobalt with
Drab Passivation
Olive Drab Passivation
-55°C + 125°C
500 hour
Very Good
Very Good
-40°C + 100°C
200 hour
Good
Good
