XO3HVT/CE73.728MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> XO3HVT/CE73.728MHZ

XO3HVT/CE73.728MHZ: DescriptionCMOS Output Clock Oscillator, 73.728MHz Nom; CategoryPassive components oscillator; File Size50KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

XO3HVT/CE73.728MHZ Overview

CMOS Output Clock Oscillator, 73.728MHz Nom

XO3HVT/CE73.728MHZ Parametric

Parameter Name	Attribute value
Maker	Golledge Electronics
Reach Compliance Code	unknown
Other features	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	XO3HVT
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	73.728 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	CMOS
physical size	13.2mm x 13.2mm x 5.1mm
longest rise time	3 ns
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

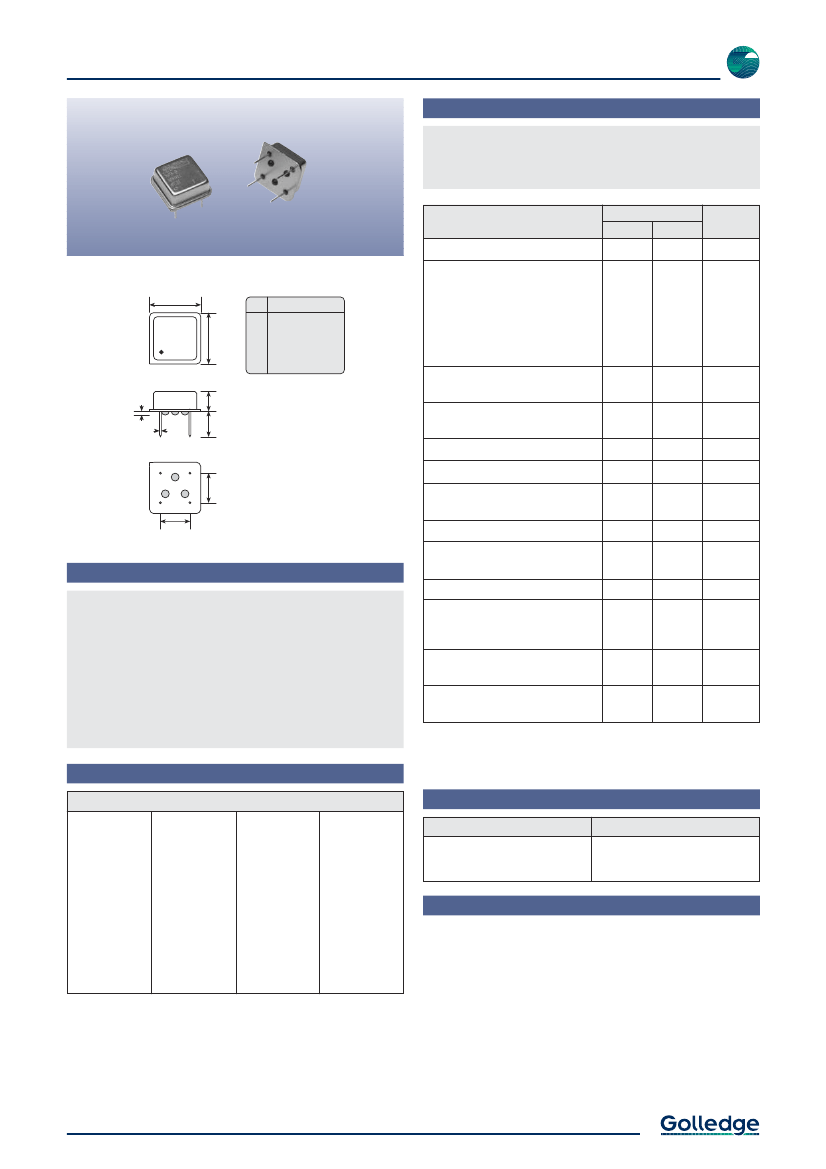

3.3V Oscillator Mil Temp High Freq

XO3HV & XO3HVT

Specifications

XO3HV: Standard stability option

XO3HVT: Tight stability option

Product

XO3HV

XO3HVT

Parameters

Frequency range:

20.0 ~ 160MHz

Frequency stability* (max):

±50ppm over 0 to +70°C

±80ppm over -40 to +85°C

±100ppm over -55 to +125°C

±20ppm over 0 to +70°C

±30ppm over -40 to +85°C

±50ppm over -55 to +125°C

Storage temperature range:

-65 to +125°C

Supply voltage (V

+3.3V (±5%)

Supply current (max):

7.62

Option

Codes

13.20

(max)

13.20

(max)

CONNECTION

Not connected or

Enable/Disable

Ground

Output

Supply

1.00

5.10

(max)

6.40

(max)

0.50Ø

30mA

CMOS

Driving ability:

Logic levels:

‘0’ level = 0.4V max

‘1’ level = 90% V

min

5ms max

7.62

Scale 1:1

Start up time:

Features

Waveform symmetry:

40:60 max @ 50%V

Rise / fall times:

3ns max

3.3V supply

Frequencies up to 160MHz

Military temperature range option

Excellent shock resistance

Enable / disable tristate option

Enable / disable function:

None (pin 1 NC)

Tristate (control via pin 1)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G / 10 ~ 2,000Hz

Standard.

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

22.1184

24.0000

25.0000

32.0000

32.7860

36.8640

40.0000

40.6000

40.9600

44.2368

48.0000

49.1520

50.0000

50.7500

51.1500

51.2000

52.0000

55.2960

58.9824

60.0000

60.9000

61.3800

61.4400

64.0000

65.0000

65.5360

66.3552

72.0000

73.7280

76.8000

78.0000

80.0000

81.2000

81.8400

81.9200

88.4736

90.0000

96.0000

98.3040

100.0000

102.4000

104.0000

108.0000

110.5920

117.9640

120.0000

125.0000

128.0000

131.0720

132.7104

144.0000

150.0000

160.0000

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Enable / Disable Function

Input (pin 1)

Open

‘1’ level

‘0’ level

Output (pin 5)

Enabled

High Impedance

Ordering Information

Product + option codes + frequency

eg:

XO3HV/A 80.0MHz

±50ppm 0+70°C

XO3HVT/B 100MHz

±30ppm -40+85°C

Option code X (eg XO3HV/X) denotes a custom specification.

Other frequencies may be available. Please consult our sales office.

Tel:

+44 1460 256 100

19 Mar 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
