SSC0604390YZF-99: DescriptionSMD POWER INDUCTORS; File Size399KB，5 Pages; ManufacturerSUPERWORLD; Websitehttp://www.superworld.com.sg/

Download Datasheet View All

SSC0604390YZF-99 Overview

SMD POWER INDUCTORS

Preview

Download Datasheet

View All

SMD POWER INDUCTORS

1. PART NO. EXPRESSION :

SSC0604 SERIES

SSC06043R3YZF-

(a)

(b)

(g)

(a) Series code

(b) Dimension code

(d) Tolerance code : Y = ±30%

(e) X, Y, Z : Standard part

(f) F : RoHS Compliant

(g) 11 ~ 99 : Internal controlled number

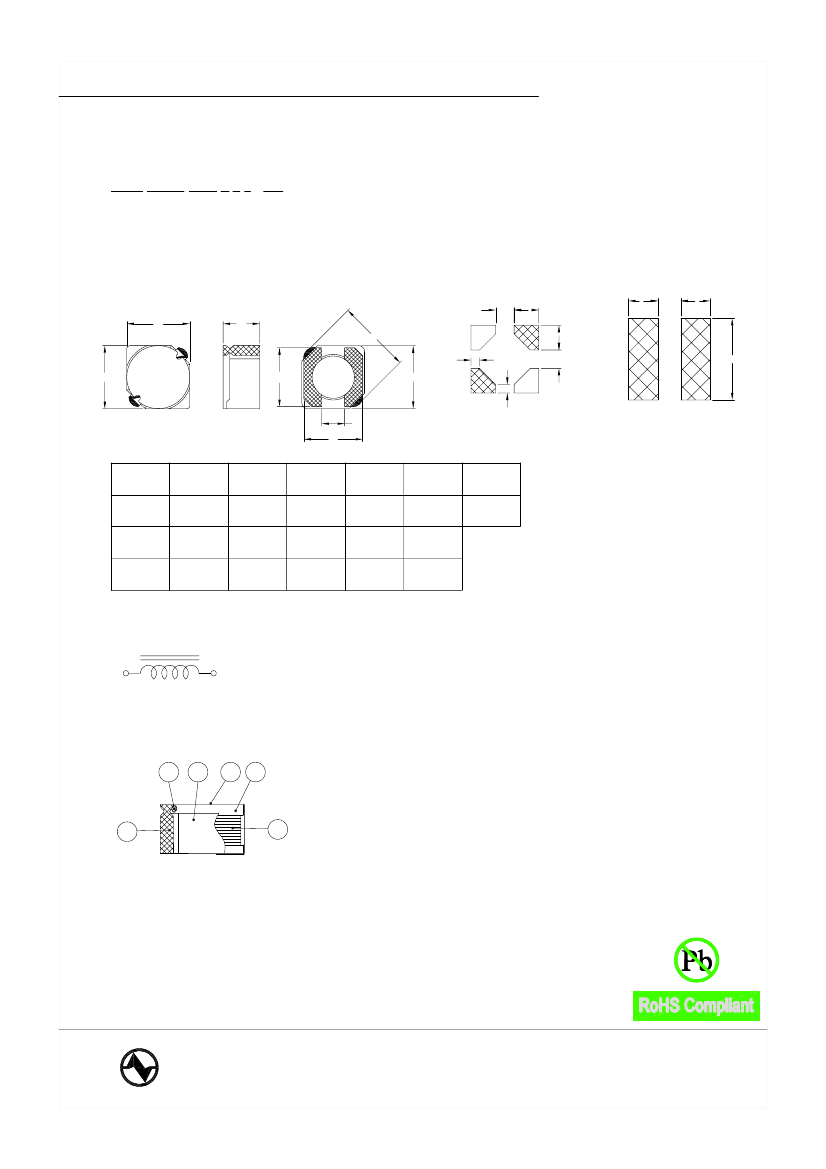

2. CONFIGURATION & DIMENSIONS :

Tin paste thickness >0.12mm

Unit:m/m

3R3

Tin paste thickness <0.12mm

PCB Pattern

6.70±0.3

2.20 Ref.

6.70±0.3

2.55 Ref.

4.00 Max.

0.95 Ref.

6.50 Ref.

2.65 Ref.

6.50 Ref.

2.00 Ref.

7.30 Ref.

9.50 Max.

3. SCHEMATIC :

4. MATERIALS :

(a) Core : DR Ferrite Core

(b) Core : RI Ferrite Core

(d) Terminal : Au+Ni Copper Plate

(e) Adhesive : Epoxy

(f) Ink : Bon Margue

NOTE : Specifications subject to change without notice. Please check our website for latest information.

04.10.2010

SUPERWORLD ELECTRONICS (S) PTE LTD

PG. 1
