BF-4214822 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BF-4214822

BF-4214822: DescriptionBoard Connector, 192 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size254KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

BF-4214822 Overview

Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal

BF-4214822 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD (100)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	BF-42
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	192
UL Flammability Code	94V-0

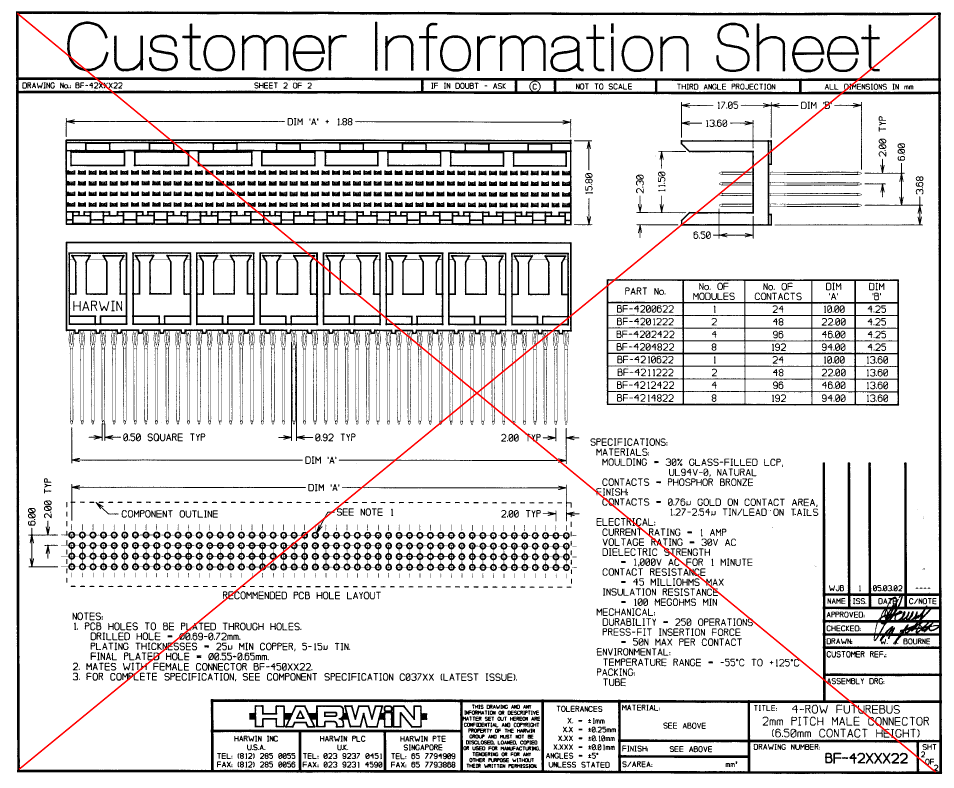

Preview

Download Datasheet

View All

OBSOLETE

BF-4214822 Related Products

	BF-4214822	BF-4200622	BF-4201222	BF-4202422	BF-4204822	BF-4210622	BF-4211222	BF-4212422
Description	Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 192 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 96 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BF-42	BF-42	BF-42	BF-42	BF-42	BF-42	BF-42	BF-42
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	192	24	48	96	192	24	48	96
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
