71C301110S-2109N datasheet, PDF

71C301110S-2109N: DescriptionRotary Switch, 9 Positions, Maintained, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size829KB，8 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric View All

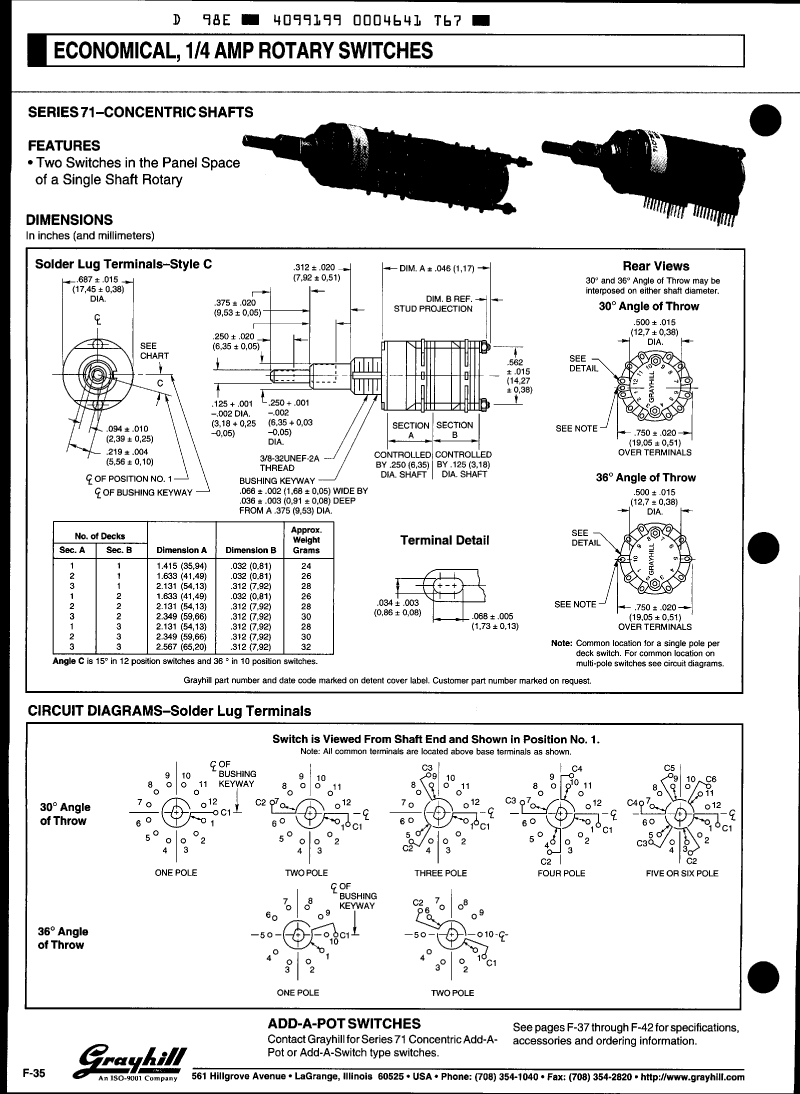

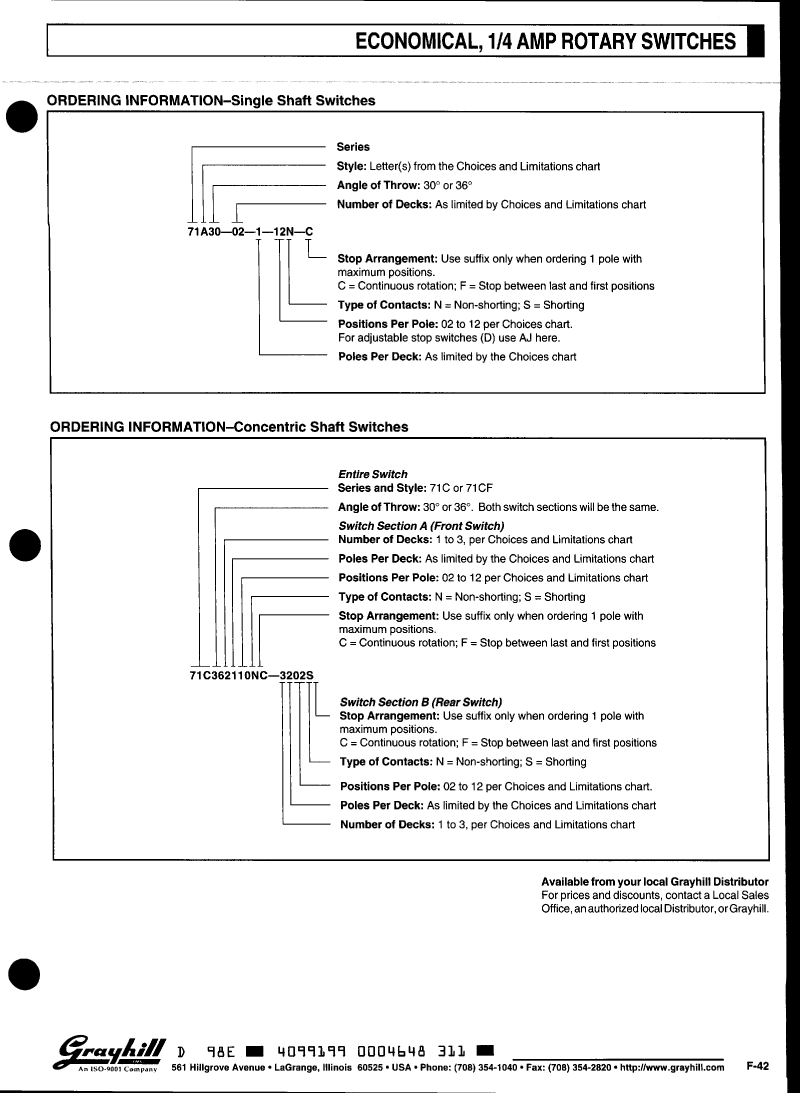

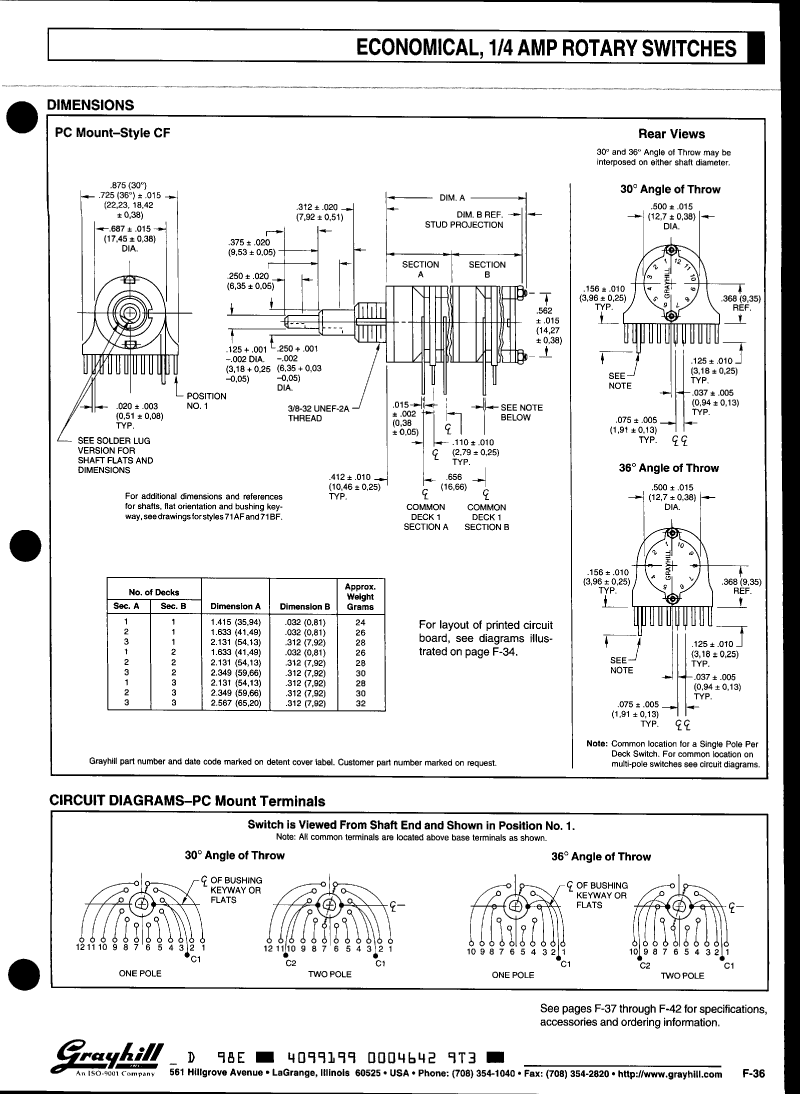

71C301110S-2109N Overview

Rotary Switch, 9 Positions, Maintained, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount,

Parameter Name	Attribute value
Reach Compliance Code	compli
Actuator length	0.375 inch

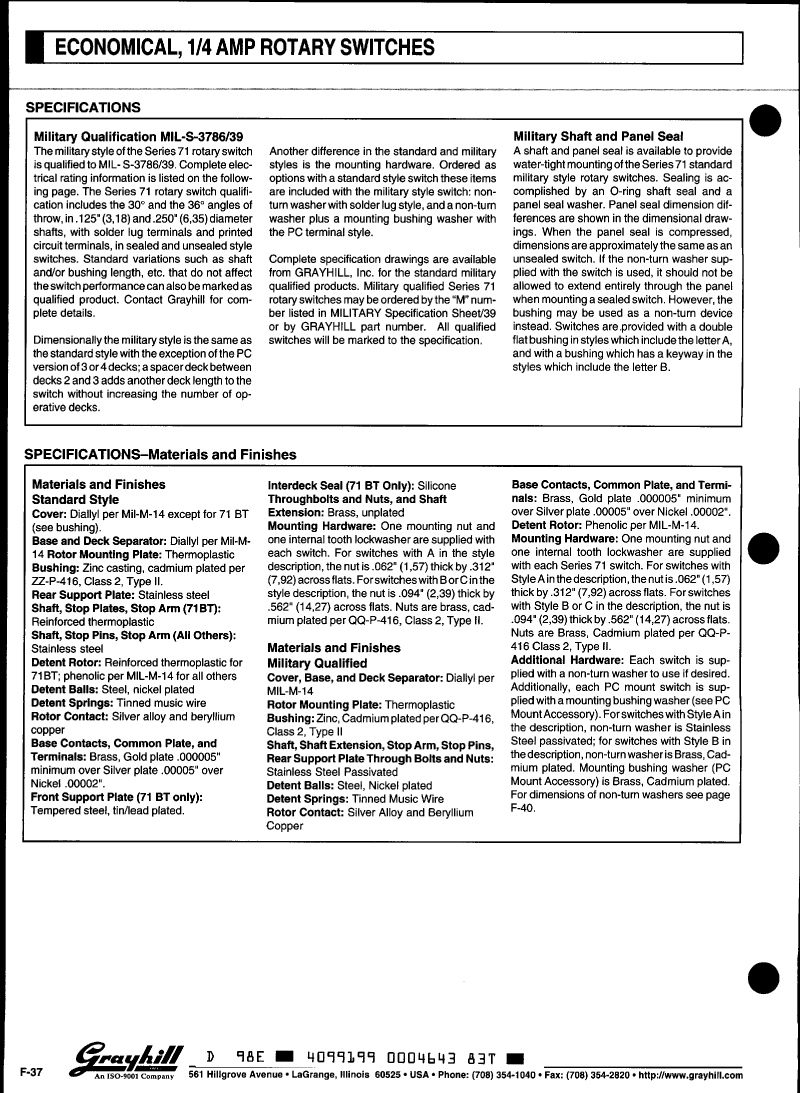

Actuator material	STEEL PASSIVATED
Actuator type	ROTARY SHAFT
body height	66.548 mm
Body length or diameter	17.4498 mm
Casing diameter	0.375 inch
Nozzle length	0.375 inch
Casing type	3/8-32
center contact material	BERYLLIUM COPPER
Center contact plating	SILVER

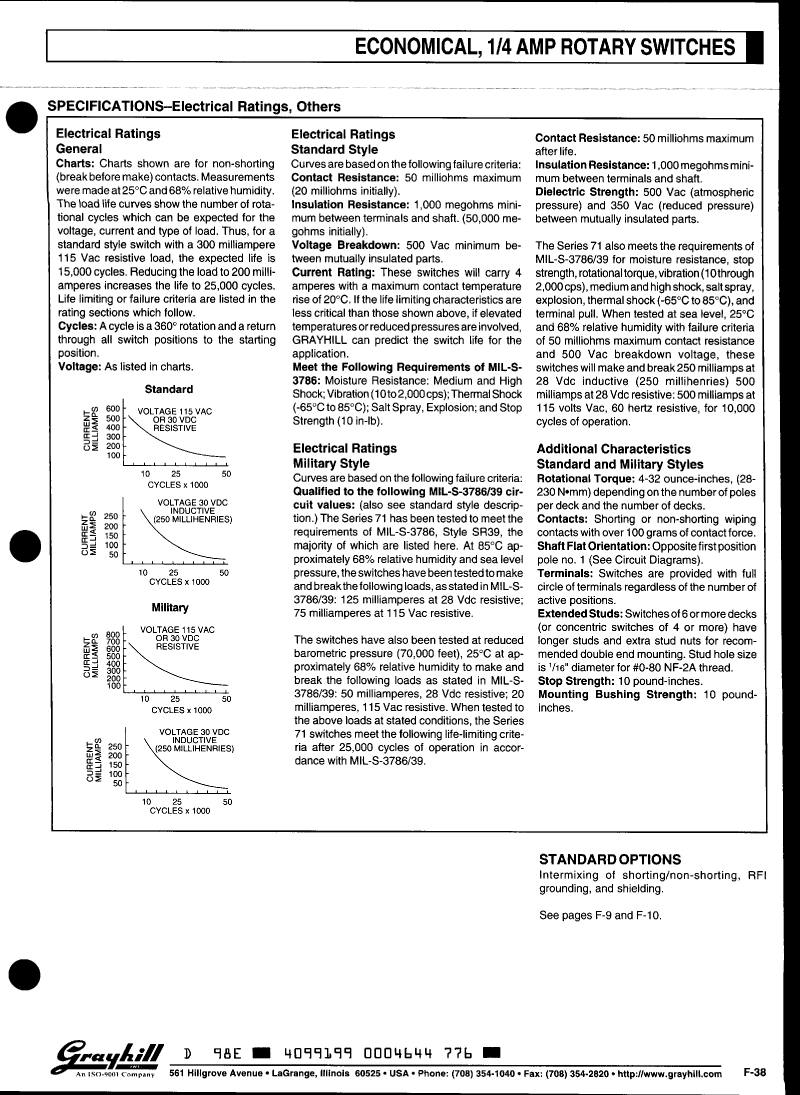

Contact (AC) maximum rated R load	0.3A@115VAC
Maximum contact current (AC)	0.3 A
Contact resistance	0.05 mΩ
Maximum contact voltage (AC)	115 V
Dielectric withstand voltage	500VAC V
Electrical life	15000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
Graduation angle	30 deg
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Installation features	PANEL MOUNT
Number of positions	9
surface mount	NO
Switch action	MAINTAINED
Switch type	ROTARY SWITCH
Terminal material	BRASS
Termination type	SOLDER LUG
Base Number Matches	1
