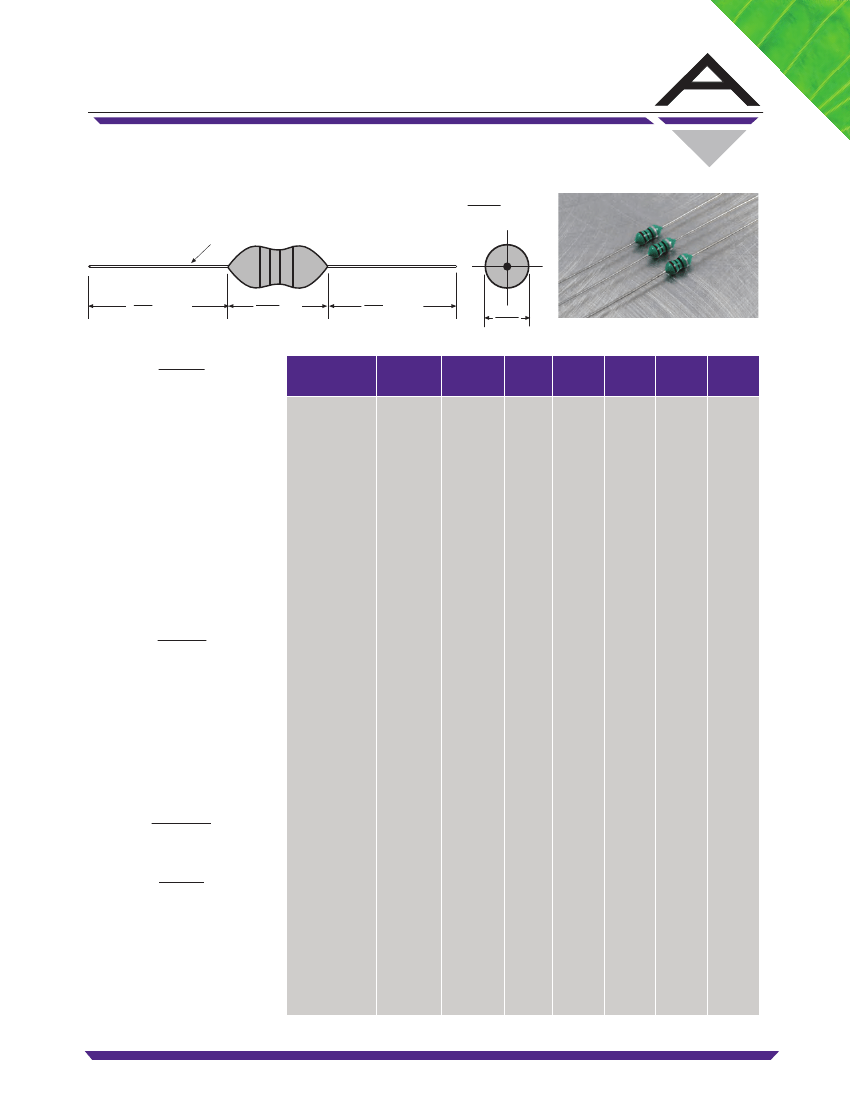

AC20
Axial Coated Inductors
Dimensions:
24 AWG
Inches
(mm)
1.15
NOMINAL
(29)
0.276
MAX.
(7.01)
1.15
NOMINAL
(29)
0.118
(3.00)
MAX.
Features
•
Incorporation of a special lead wire
structure entirely eliminates defects
inherent in existing axial lead type
products and prevents lead breakage.
•
The special magnetic core structure
permits the product to have reduced
size, high "Q" and self resonant
frequencies.
•
Treated with epoxy resin coating for
humidity resistance to ensure longer
life.
•
Heat resistant adhesives and special
structural design for effective open
circuit measurement.
Electrical
Inductance Range:
.10µh to 1000µh.
Tolerance:
10% over entire range.
Tighter tolerances available
Temp. Rise:
20°C.
Ambient Temp.:
80°C.
Rated Temp Range:
-20 to 100°C.
Dielectric Withstanding Voltage:
250
Volts R.M.S.
Rated Current:
Based on temp rise.
Mechanical
Terminal Tensile Strength:
1.0 kg min.
Terminal Bending Strength:
.3 kg min.
Physical
Marking (on reel):
Manufacturers
n a m e , P a r t n u m b e r, Q u a n t i t y,
Marking:
4 band color code.
Packaging:
5000 pieces per Ammo
Pack.
For Tape and Reel packaging please
add ”-TR” to the part number.
Allied
Part
Number
AC20-R10K-RC
AC20-R12K-RC
AC20-R15K-RC
AC20-R18K-RC
AC20-R22K-RC
AC20-R27K-RC
AC20-R33K-RC
AC20-R39K-RC
AC20-R47K-RC
AC20-R56K-RC
AC20-R68K-RC
AC20-R70K-RC
AC20-R82K-RC
AC20-R90K-RC
AC20-1R0K-RC
AC20-1R1K-RC
AC20-1R2K-RC
AC20-1R5K-RC
AC20-1R6K-RC
AC20-1R8K-RC
AC20-2R0K-RC
AC20-2R2K-RC
AC20-2R3K-RC
AC20-2R4K-RC
AC20-2R7K-RC
AC20-3R0K-RC
AC20-3R2K-RC
AC20-3R3K-RC
AC20-3R6K-RC
AC20-3R9K-RC
AC20-4R2K-RC
AC20-4R7K-RC
AC20-5R6K-RC
AC20-6R0K-RC
AC20-6R4K-RC
AC20-6R8K-RC
AC20-8R2K-RC
AC20-100K-RC
AC20-120K-RC
AC20-150K-RC
AC20-180K-RC
AC20-200K-RC
AC20-220K-RC
AC20-270K-RC
AC20-330K-RC
AC20-360K-RC
AC20-390K-RC
AC20-470K-RC
AC20-560K-RC
AC20-680K-RC
AC20-820K-RC
AC20-101K-RC
AC20-121K-RC
AC20-151K-RC
AC20-161K-RC
AC20-181K-RC
AC20-221K-RC
AC20-271K-RC
AC20-331K-RC
AC20-391K-RC
AC20-471K-RC
AC20-561K-RC
AC20-621K-RC
AC20-681K-RC
AC20-821K-RC
AC20-102K-RC
Inductance
(µh)
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.70
.82
.90
1.0
1.1
1.2
1.5
1.6
1.8
2.0
2.2
2.3
2.4
2.7
3.0
3.2
3.3
3.6
3.9
4.2
4.7
5.6
6.0
6.4
6.8
8.2
10
12
15
18
20
22
27
33
36
39
47
56
68
82
100
120
150
160
180
220
270
330
390
470
560
620
680
820
1000
Tolerance
(%)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Q
Min.
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
60
60
60
60
60
60
60
60
60
60
60
60
60
50
Test
Freq.
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
.796
SRF
Min.
(MHz)
470
450
420
400
380
360
350
320
300
280
250
230
200
190
180
170
165
150
130
125
115
110
105
100
95
90
85
70
65
65
60
50
40
35
33
30
28
22
20
16
15
14
12
11
10
9.7
9.5
8.5
7.5
6.5
6.0
5.5
5.4
4.7
4.5
4.3
4
3.7
3.4
2.8
2.5
2.3
2.1
2
1.5
1.2
RDC
Max.
(Ω)
0.06
0.06
0.07
0.10
0.08
0.08
0.09
0.10
0.11
0.12
0.13
0.14
0.14
0.15
0.15
0.17
0.18
0.20
0.22
0.23
0.24
0.25
0.26
0.27
0.28
0.29
0.29
0.30
0.31
0.32
0.33
0.35
0.40
0.43
0.44
0.45
0.56
0.75
0.80
0.93
1.00
1.10
1.50
1.80
2.10
2.20
2.30
2.60
2.90
3.30
3.80
4.20
4.70
5.40
5.70
6.00
7.00
7.70
11.10
12.60
14.00
15.50
23.00
25.30
27.50
31.40
Rated
Current
(mA)
1400
1350
1270
1200
1150
1110
1110
1000
1000
950
900
900
900
850
815
780
740
700
680
655
640
630
620
610
595
580
570
575
560
555
540
530
500
490
480
470
425
370
350
335
315
300
280
270
255
250
240
205
195
185
175
165
160
150
145
140
130
120
100
95
90
85
80
75
65
60
