ARB530-5123S Overview

Telecom and Datacom Connector, ROHS COMPLIANT

ARB530-5123S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

RoHS

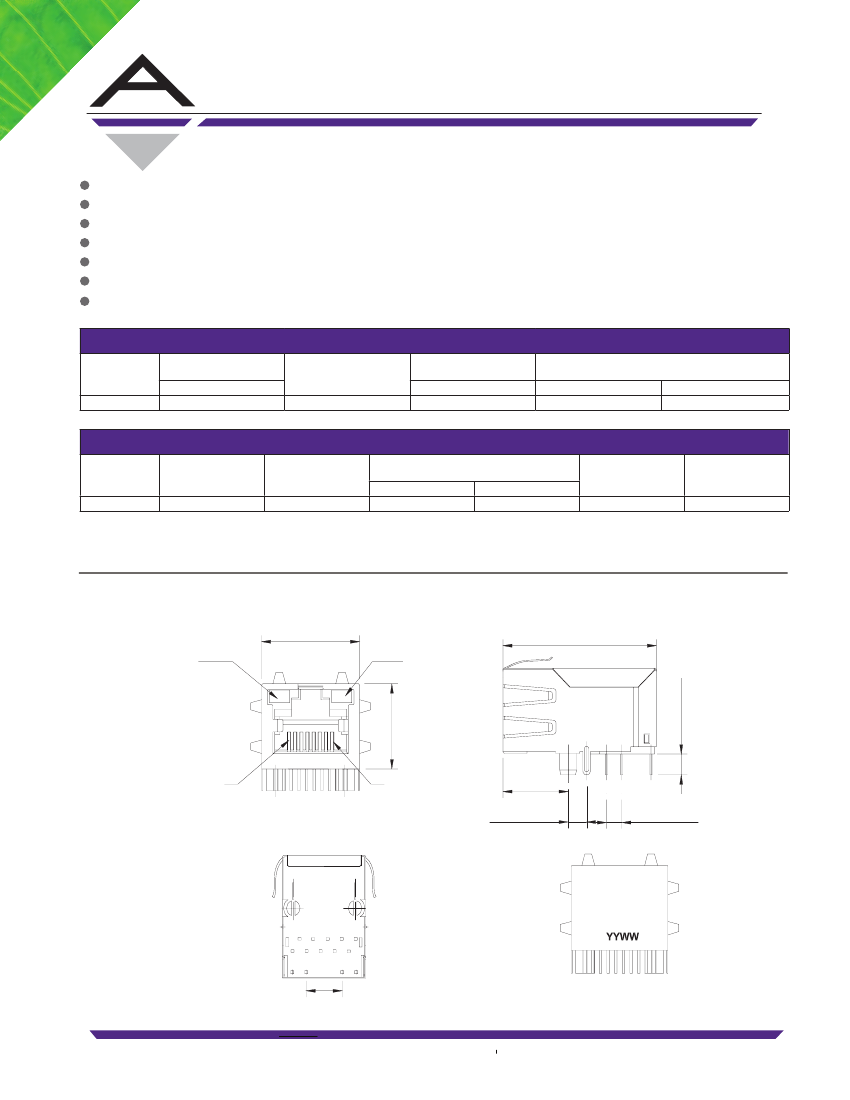

Single Port RJ45 CONNECTOR

WITH INTEGRATED MAGNETICS, TAB UP

10/100/1000 Base-T Ethernet Application

Meets IEEE 802.3 & ANSI X 3.263 standards

Impedance: 100OHMS

Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias

Always EU RoHS/ELV Compliant, wave solder capable to 265°C

RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Standard operating temp: 0ºC to +70ºC

Electrical Speciﬁcations @ 25°C

Part

Number

ARB530-5123S

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±3%)

1CT:1CT

Insertion Loss

(dB Max)

0.5-100MHz

1.1

Return Loss

(dB Min)

0.5-40MHz

40.1-100MHz

12-20*log(f/80)

Electrical Speciﬁcations @ 25°C

Part

Number

ARB530-5123S

EMI

Fingers

YES

LED

(L/R)

Y/G

Cross Talk

(dB Min)

0.5-40MHz

40.1-100MHz

33-20*log(f/50)

CMRR

(dB Min)

0.5-100MHz

HI-POT

(VDC)

2250

All specifications subject to change without notice.

MECHANICAL

Unless otherwise specified all tolerances are:

0.25 in mm

ARB530-5123S

16.2 [0.638]

25.4Max

LED-L

YELLOW

LED-R

GREEN

13.5 [0.531]

3.3 [0.130]

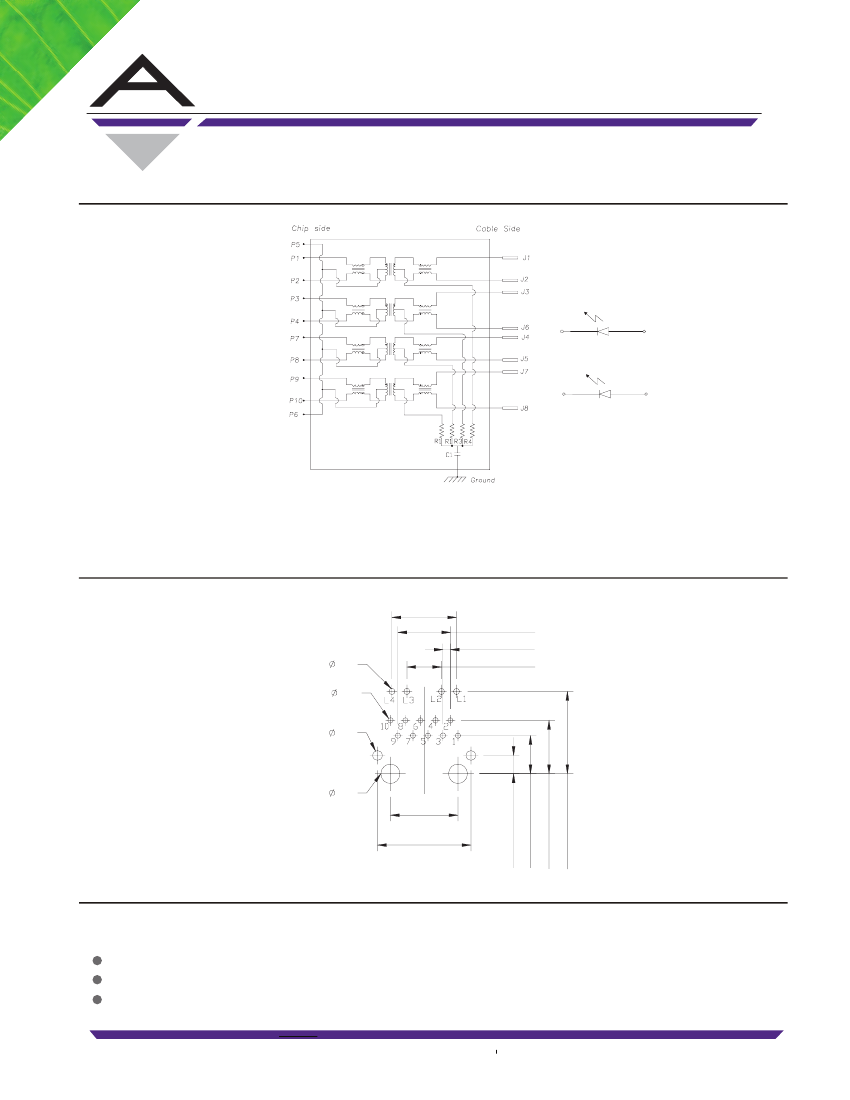

RJ8

RJ1

10.8 [0.425]

3.05 [0.120]

2.54 [0.100]

ALLIED

ARB530-5123S

P10

5.85

Back View

www.alliedcomponents.com

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

01/07/11
