N80C188-12: DescriptionMicroprocessor, 8-Bit, 12.5MHz, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，72 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

N80C188-12 Overview

Microprocessor, 8-Bit, 12.5MHz, CMOS, PQCC68, PLASTIC, LCC-68

N80C188-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	LCC
package instruction	QCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	compliant
Address bus width	20
bit size	8
boundary scan	NO
maximum clock frequency	12.5 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.2 mm
low power mode	YES
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.83 mm
speed	12.5 MHz
Maximum slew rate	120 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	24.2 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

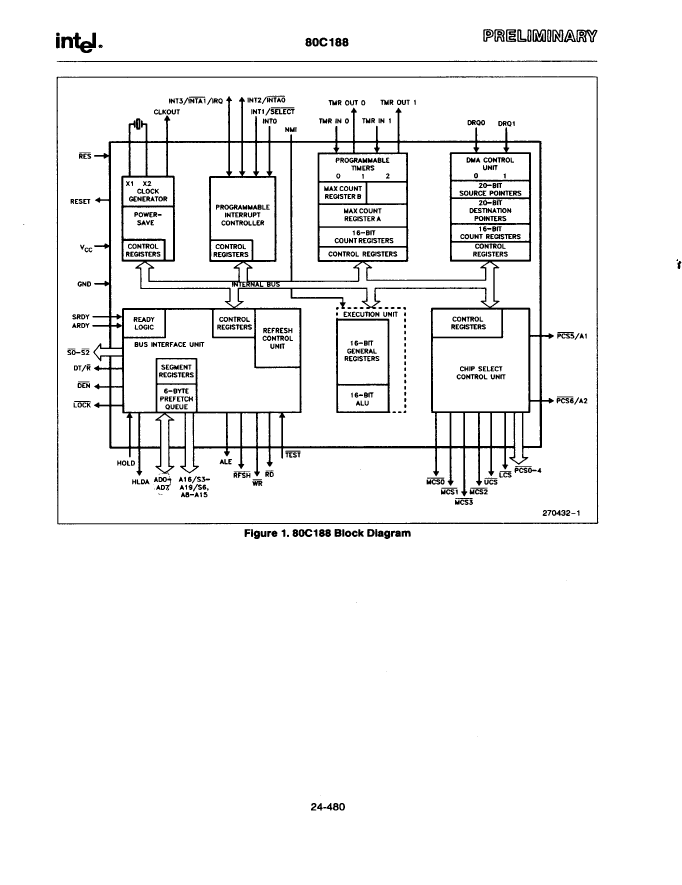

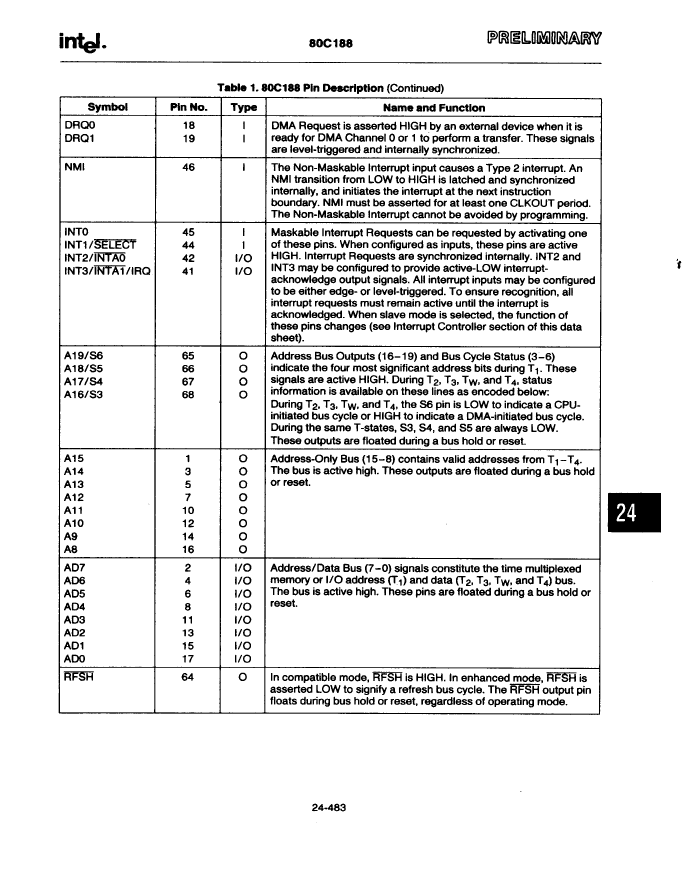

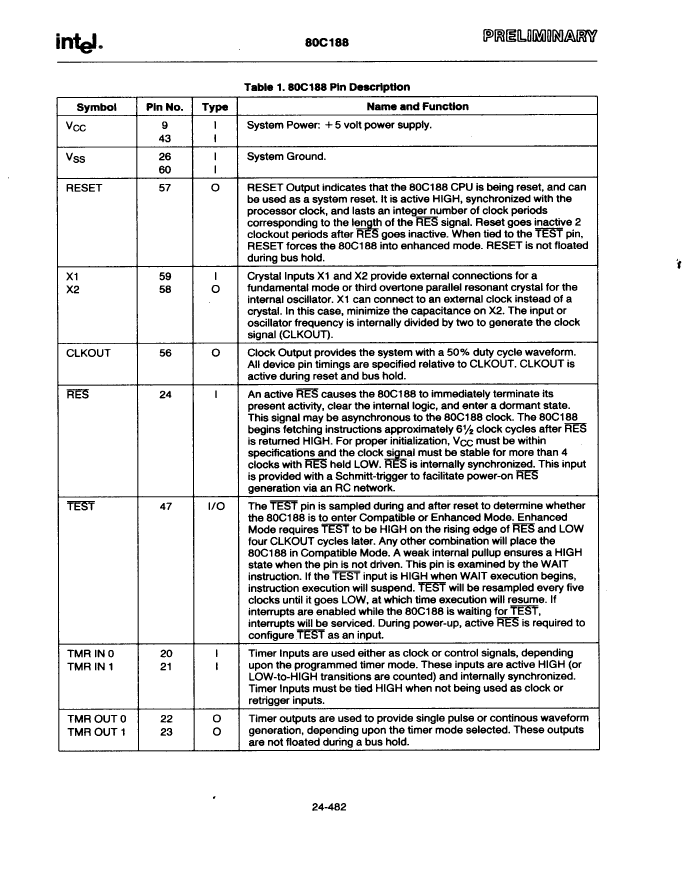

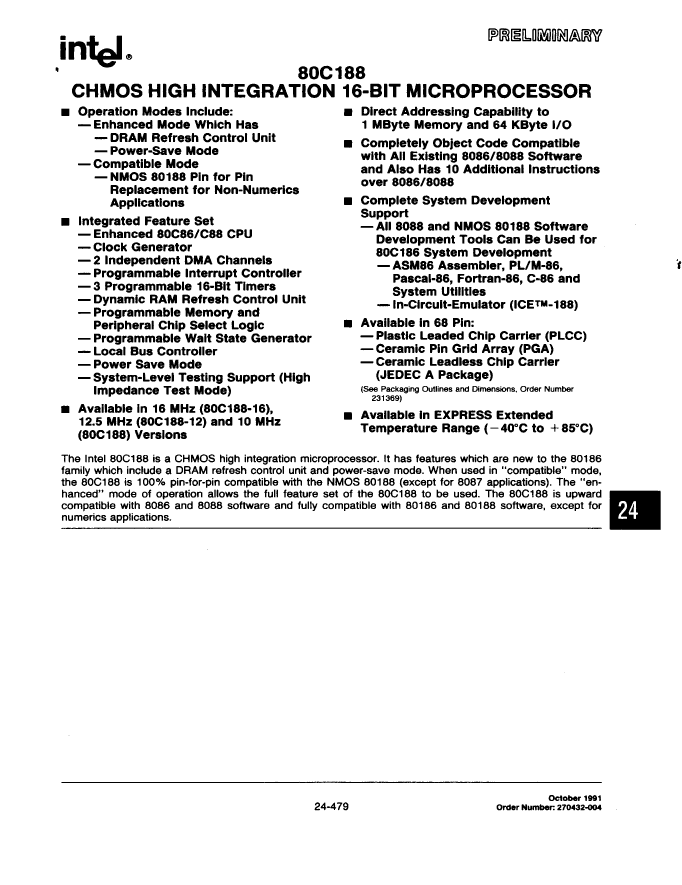

Preview

Download Datasheet

View All

N80C188-12 Related Products

	N80C188-12	R80C188	R80C188-16	R80C188-12	N80C188-16	TN80C188-16	TN80C188	TN80C188-12	N80C188
Description	Microprocessor, 8-Bit, 12.5MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microprocessor, 8-Bit, 10MHz, CMOS, CQCC68, CERAMIC, LCC-68	Microprocessor, 8-Bit, 16MHz, CMOS, CQCC68, CERAMIC, LCC-68	Microprocessor, 8-Bit, 12.5MHz, CMOS, CQCC68, CERAMIC, LCC-68	Microprocessor, 8-Bit, 16MHz, CMOS, PQCC68, PLASTIC, LCC-68	RISC Microprocessor, 16-Bit, 16MHz, CMOS, PQCC68	Microprocessor, 8-Bit, 10MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microprocessor, 8-Bit, 12.5MHz, CMOS, PQCC68, PLASTIC, LCC-68	Microprocessor, 8-Bit, 10MHz, CMOS, PQCC68, PLASTIC, LCC-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
package instruction	QCCJ, LDCC68,1.0SQ	QCCN, LCC68A,.95SQ	QCCN, LCC68A,.95SQ	QCCN, LCC68A,.95SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	unknown	compliant	compliant	unknown
bit size	8	8	8	8	8	16	8	8	8
JESD-30 code	S-PQCC-J68	S-CQCC-N68	S-CQCC-N68	S-CQCC-N68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68	S-PQCC-J68
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	68	68	68	68	68	68	68	68	68
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	85 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCN	QCCN	QCCN	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LCC68A,.95SQ	LCC68A,.95SQ	LCC68A,.95SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
speed	12.5 MHz	10 MHz	16 MHz	12.5 MHz	16 MHz	16 MHz	10 MHz	12.5 MHz	10 MHz
Maximum slew rate	120 mA	100 mA	150 mA	120 mA	150 mA	180 mA	100 mA	120 mA	100 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	NO LEAD	NO LEAD	NO LEAD	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR, RISC	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Parts packaging code	LCC	LCC	LCC	LCC	LCC	-	LCC	LCC	LCC
Contacts	68	68	68	68	68	-	68	68	68
Address bus width	20	20	20	20	20	-	20	20	20
boundary scan	NO	NO	NO	NO	NO	-	NO	NO	NO
maximum clock frequency	12.5 MHz	10 MHz	16 MHz	12.5 MHz	16 MHz	-	10 MHz	12.5 MHz	10 MHz
External data bus width	8	8	8	8	8	-	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	-	NO	NO	NO
length	24.2 mm	24.13 mm	24.13 mm	24.13 mm	24.2 mm	-	24.2 mm	24.2 mm	24.2 mm
low power mode	YES	YES	YES	YES	YES	-	YES	YES	YES
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	4.83 mm	3.68 mm	3.68 mm	3.68 mm	4.83 mm	-	4.83 mm	4.83 mm	4.83 mm
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.25 V	-	5.5 V	5.25 V	5.5 V
Minimum supply voltage	4.75 V	4.5 V	4.75 V	4.75 V	4.75 V	-	4.5 V	4.75 V	4.5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	24.2 mm	24.13 mm	24.13 mm	24.13 mm	24.2 mm	-	24.2 mm	24.2 mm	24.2 mm
