QN80C188-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> QN80C188-12

QN80C188-12: DescriptionRISC Microprocessor, 16-Bit, 12.5MHz, CMOS, PQCC68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，72 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

QN80C188-12 Overview

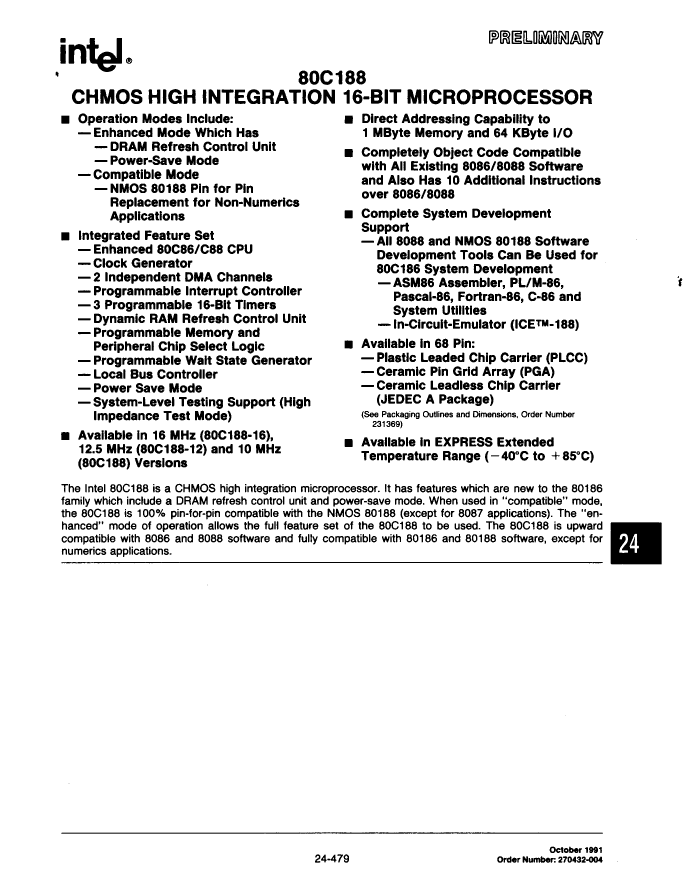

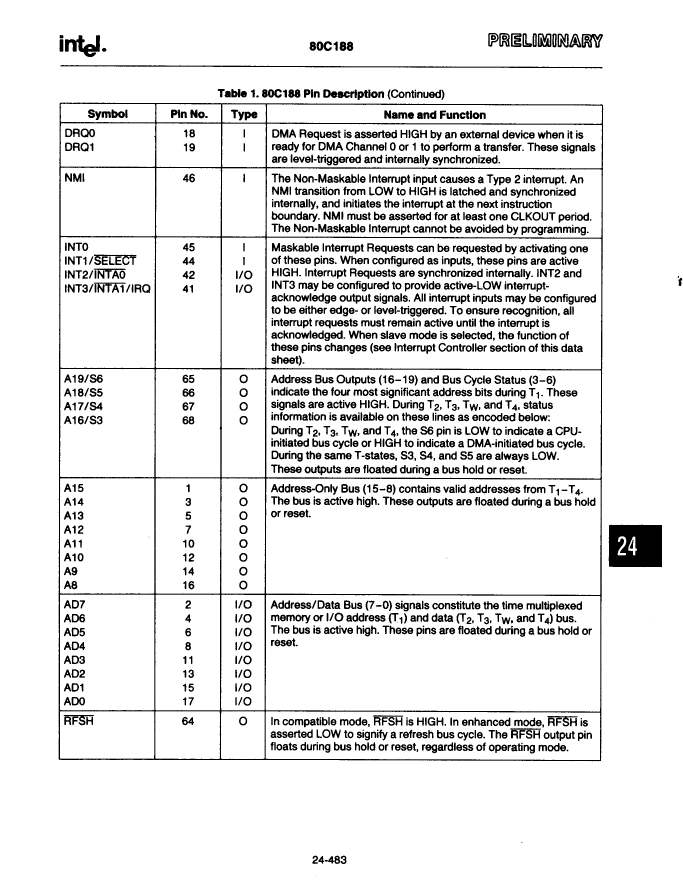

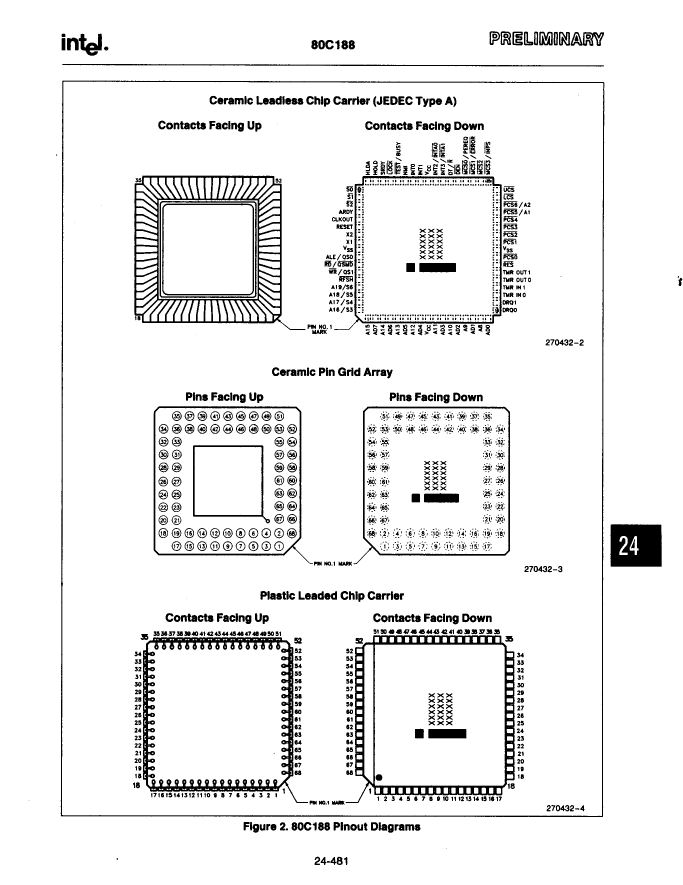

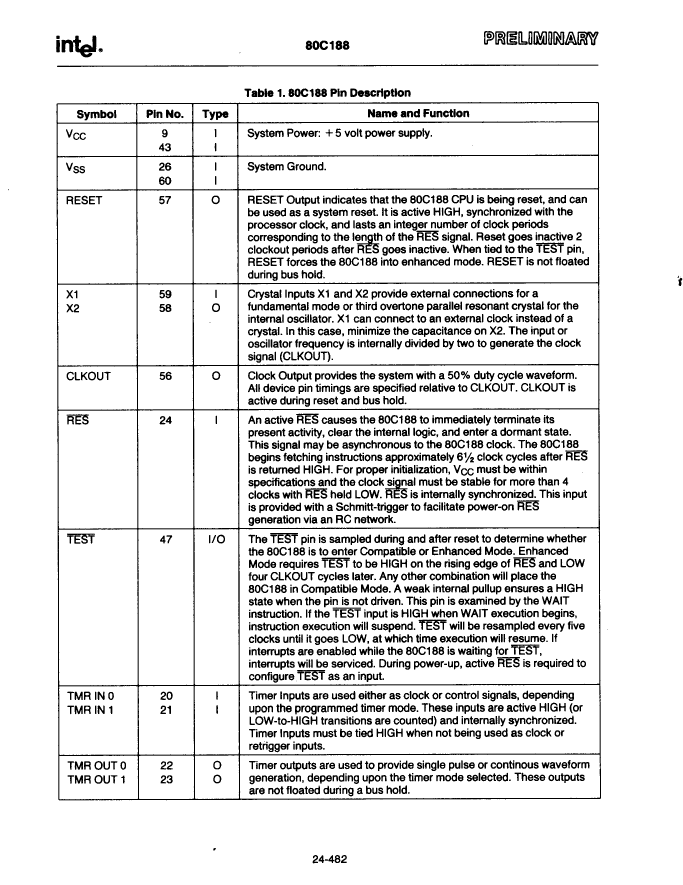

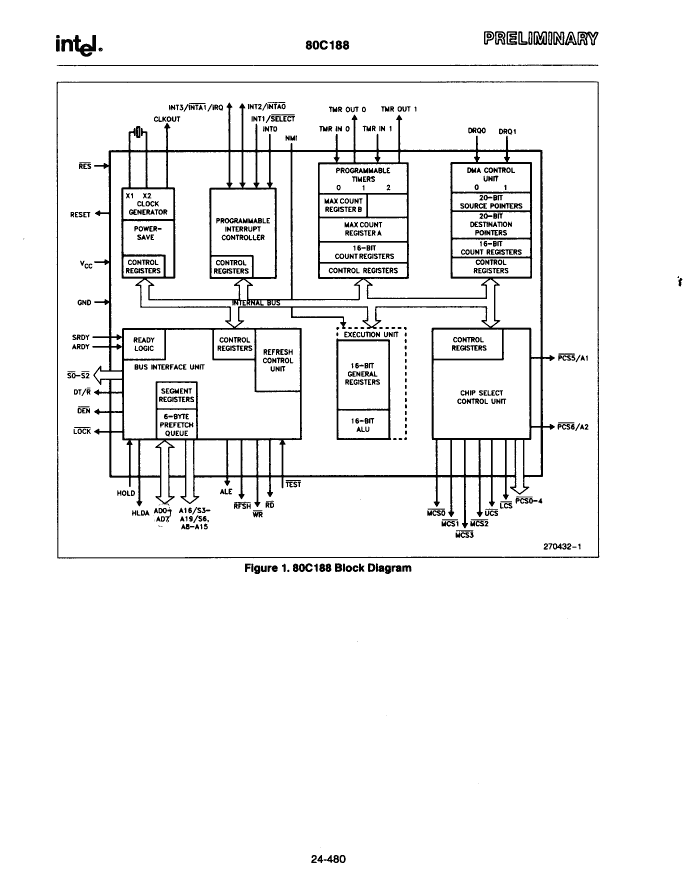

RISC Microprocessor, 16-Bit, 12.5MHz, CMOS, PQCC68

QN80C188-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
bit size	16
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
speed	12.5 MHz
Maximum slew rate	150 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

Preview

Download Datasheet

View All

QN80C188-12 Related Products

	QN80C188-12	QA80C188-12	TA80C188-16	QA80C188-16	TR80C188-16	QR80C188-12	QR80C188-16	QN80C188-16	S80C188-12	S80C188
Description	RISC Microprocessor, 16-Bit, 12.5MHz, CMOS, PQCC68	RISC Microprocessor, 16-Bit, 12.5MHz, CMOS, CPGA68,	RISC Microprocessor, 16-Bit, 16MHz, CMOS, CPGA68	RISC Microprocessor, 16-Bit, 16MHz, CMOS, CPGA68,	RISC Microprocessor, 16-Bit, 16MHz, CMOS, CQCC68,	RISC Microprocessor, 16-Bit, 12.5MHz, CMOS, CQCC68,	RISC Microprocessor, 16-Bit, 16MHz, CMOS, CQCC68,	RISC Microprocessor, 16-Bit, 16MHz, CMOS, PQCC68	RISC Microprocessor, 16-Bit, 12MHz, CMOS, PQFP80,	RISC Microprocessor, 16-Bit, 10MHz, CMOS, PQFP80,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
package instruction	QCCJ, LDCC68,1.0SQ	PGA, PGA68,11X11	PGA, PGA68,11X11	PGA, PGA68,11X11	QCCN, LCC68A,.95SQ	QCCN, LCC68A,.95SQ	QCCN, LCC68A,.95SQ	QCCJ, LDCC68,1.0SQ	QFP, QFP80,.7X.9,32	QFP, QFP80,.7X.9,32
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compli
bit size	16	16	16	16	16	16	16	16	16	16
JESD-30 code	S-PQCC-J68	S-XPGA-P68	S-XPGA-P68	S-XPGA-P68	S-XQCC-N68	S-XQCC-N68	S-XQCC-N68	S-PQCC-J68	R-PQFP-G80	R-PQFP-G80
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	68	68	68	68	68	68	68	68	80	80
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	PGA	PGA	PGA	QCCN	QCCN	QCCN	QCCJ	QFP	QFP
Encapsulate equivalent code	LDCC68,1.0SQ	PGA68,11X11	PGA68,11X11	PGA68,11X11	LCC68A,.95SQ	LCC68A,.95SQ	LCC68A,.95SQ	LDCC68,1.0SQ	QFP80,.7X.9,32	QFP80,.7X.9,32
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	GRID ARRAY	GRID ARRAY	GRID ARRAY	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
speed	12.5 MHz	12.5 MHz	16 MHz	16 MHz	16 MHz	12.5 MHz	16 MHz	16 MHz	12 MHz	10 MHz
Maximum slew rate	150 mA	150 mA	180 mA	180 mA	180 mA	150 mA	180 mA	180 mA	120 mA	100 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	PIN/PEG	PIN/PEG	PIN/PEG	NO LEAD	NO LEAD	NO LEAD	J BEND	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm
Terminal location	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Parts packaging code	-	PGA	-	PGA	QFN	QFN	QFN	-	QFP	QFP
Contacts	-	68	-	68	68	68	68	-	80	80
