TR87C251SB16 datasheet, PDF - EEWORLD Datasheet

TR87C251SB16: DescriptionMicrocontroller, 8-Bit, UVPROM, 16MHz, CMOS, CQCC44, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size509KB，33 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

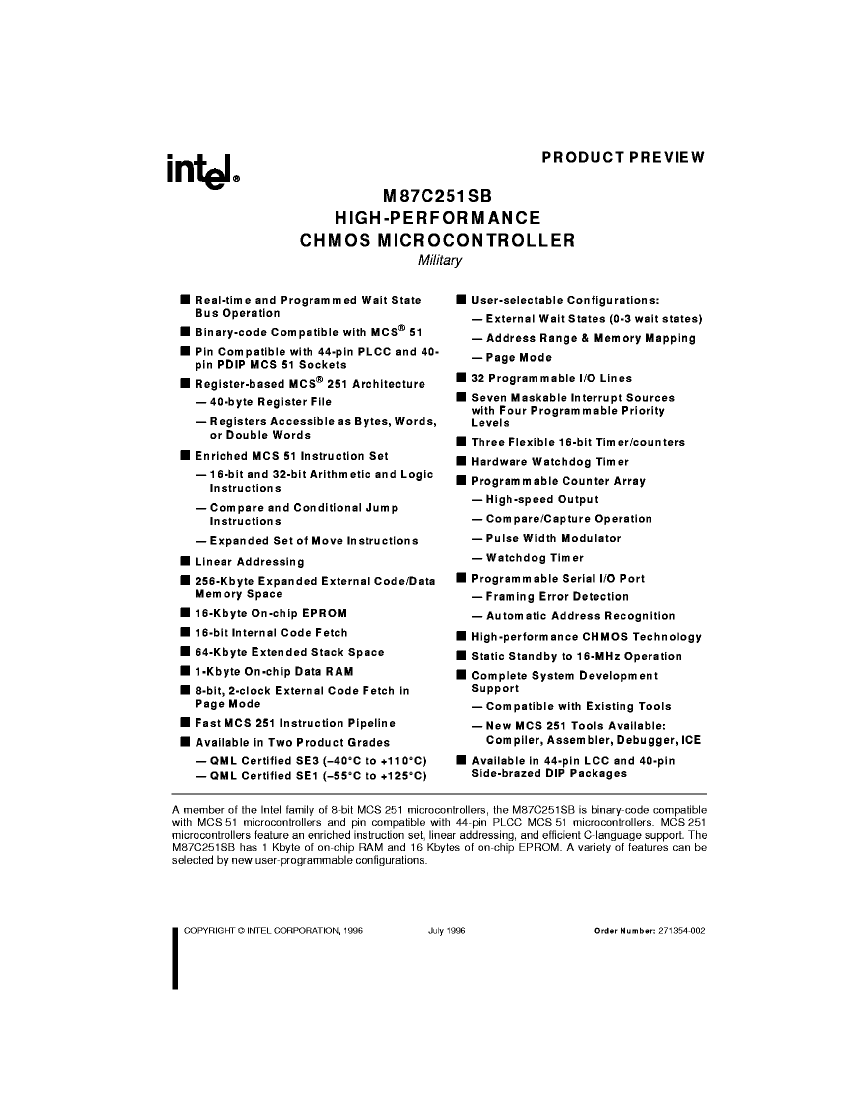

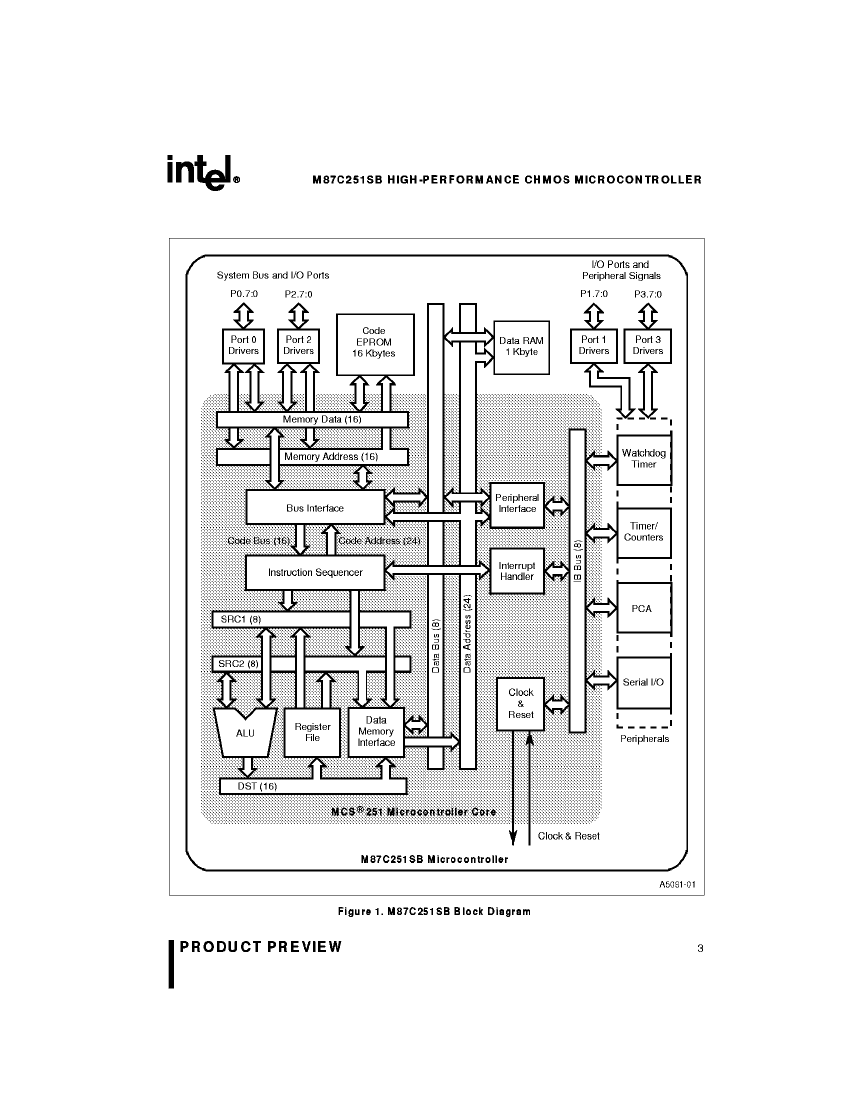

TR87C251SB16 Overview

Microcontroller, 8-Bit, UVPROM, 16MHz, CMOS, CQCC44, LCC-44

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	LCC
package instruction	QCCN,
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	18
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-CQCC-N44
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
ROM programmability	UVPROM
speed	16 MHz
Maximum slew rate	85 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	TR87C251SB16	MC87C251SB16	MR87C251SB16
Description	Microcontroller, 8-Bit, UVPROM, 16MHz, CMOS, CQCC44, LCC-44	Microcontroller, 8-Bit, UVPROM, 16MHz, CMOS, CDIP40, SIDE BRAZED, DIP-40	Microcontroller, 8-Bit, UVPROM, 80251 CPU, 16MHz, CMOS, CQCC44, LCC-44
Maker	Intel	Intel	Intel
Parts packaging code	LCC	DIP	LCC
package instruction	QCCN,	DIP,	LCC-44
Contacts	44	40	44
Reach Compliance Code	unknown	compliant	compliant
Has ADC	NO	NO	NO
Address bus width	18	18	18
bit size	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	S-CQCC-N44	R-CDIP-T40	S-CQCC-N44
Number of I/O lines	32	32	32
Number of terminals	44	40	44
Maximum operating temperature	110 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C
PWM channel	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	QCCN
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	UVPROM	UVPROM	UVPROM
speed	16 MHz	16 MHz	16 MHz
Maximum slew rate	85 mA	85 mA	85 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal location	QUAD	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
ECCN code	-	3A001.A.2.C	3A001.A.2.C
