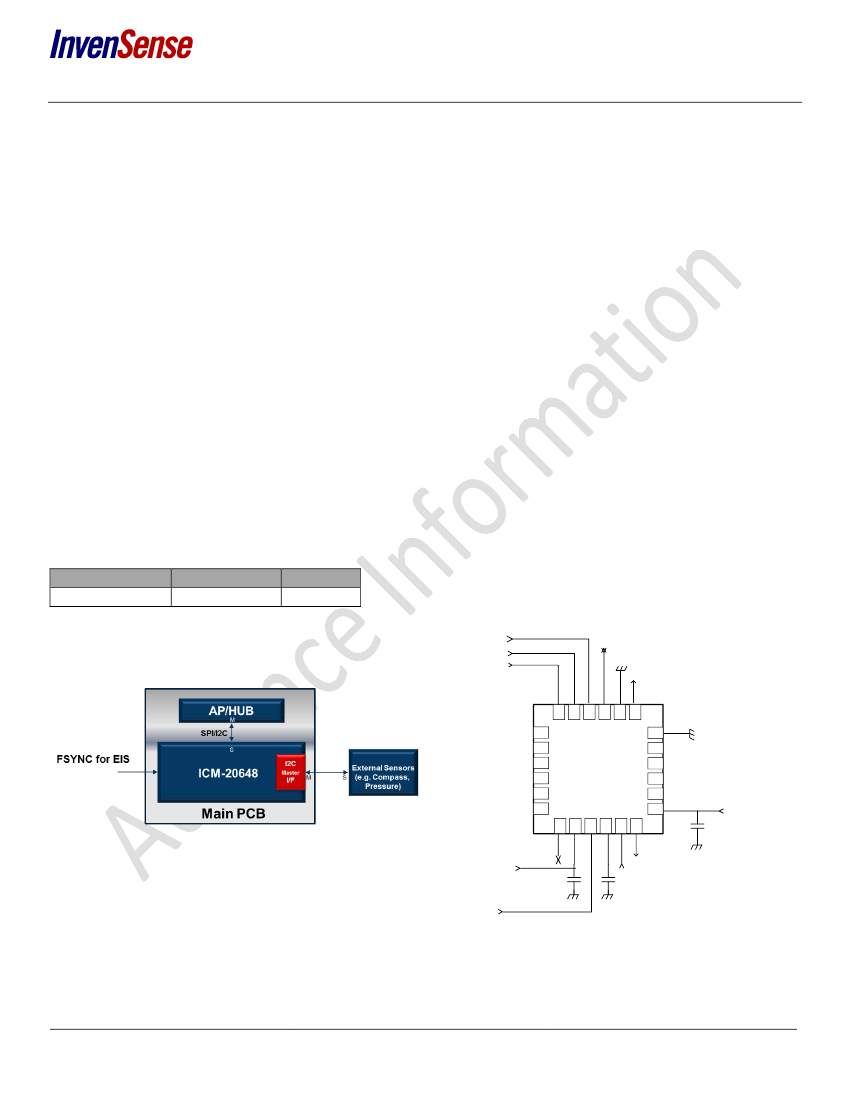

ICM-20648

6-Axis MEMS MotionTracking™ Device with Enhanced EIS Support

GENERAL DESCRIPTION

The ICM-20648 a 6-axis MotionTracking device that is ideally

suited for Smartphones, Tablets, Wearable Sensors, and IoT

applications.



3-axis gyroscope, 3-axis accelerometer, 3-axis compass,

and a Digital Motion Processor™ (DMP ) in a

3x3x0.9mm (24-pin QFN) package

DMP offloads computation of motion processing

algorithms from the host processor, improving system

power performance

Software drivers are fully compliant with Google’s latest

Android release

Enhanced FSYNC functionality to improve timing for

applications like EIS

APPLICATIONS



Smartphones and Tablets

Wearable Sensors

IoT Applications

Motion-based game controllers

3D remote controls for Internet connected DTVs and

set top boxes, 3D mice



FEATURES



3-Axis Gyroscope with Programmable FSR of

±250dps, ±500dps, ±1000dps and ±2000dps

3-Axis Accelerometer with Programmable FSR of

±2g, ±4g, ±8g and ±16g

Onboard Digital Motion Processor (DMP)

Android support

Auxiliary I C interface for external sensors

On-Chip 16-bit ADCs and Programmable Filters

7MHz SPI or 400kHz Fast Mode I²C

Digital-output temperature sensor

VDD operating range of 1.71 to 3.6V

MEMS structure hermetically sealed and bonded at

wafer level

RoHS and Green compliant



ICM-20648 supports an auxiliary I C interface to external

sensors, on-chip 16-bit ADCs, programmable digital filters, an

embedded temperature sensor, and programmable

interrupts. The device features an operating voltage range

down to 1.71V. Communication ports include I C and high

speed SPI at 7MHz.

ORDERING INFORMATION

PART

ICM-20648†

TEMP RANGE

−40°C to +85°C

PACKAGE

24-Pin QFN

TYPICAL OPERATING CIRCUIT

nCS

†

Denotes RoHS and Green-Compliant Package

SDA / SDI

SCL / SCLK

BLOCK DIAGRAM

SCLK

SDI

AUX_DA

RESV

nCS

INT2

GND

17 NC

ICM-20648

16 NC

15 NC

14 NC

13 VDD

1.71 – 3.6VDC

C2, 0.1

REGOUT 10

FSYNC

AUX_CL

VDDIO

SDO / AD0

1.71 – 3.6VDC

C3, 0.1 µ F

C1, 0.1

SDO

This document contains information on a pre-production

product. InvenSense Inc. reserves the right to

changespecifications and information herein without

notice.

InvenSense Inc.

1745 Technology Drive, San Jose, CA 95110 U.S.A

+1(408) 988–7339

www.invensense.com

Document Number: PB-ICM-20648-00

Revision: 1.0

Revision Date: 11/30/2015
